Library› Navigation› Navigation & Bridge Equipment› Weather Instruments› R.M. Young 05103L
R.M. Young

05103L

Weather Instruments · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

WIND DIRECTION vs mA OUTPUTDEGREES = (22.5 x mA)-90
Azimuth360° mechanical, 355° electrical (5° open)
Wind direction±3 degrees
Damped natural wavelength7.4 m (24.3 ft)
Undamped natural wavelength7.2 m (23.6 ft)
OutputRS 485
Propeller18 cm (7 in) diameter
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Wind Monitor combines wind speed and wind direction. It is constructed of a four blade helicoid propeller for high accurate wind speed measurement with integrated wind direction sensor.

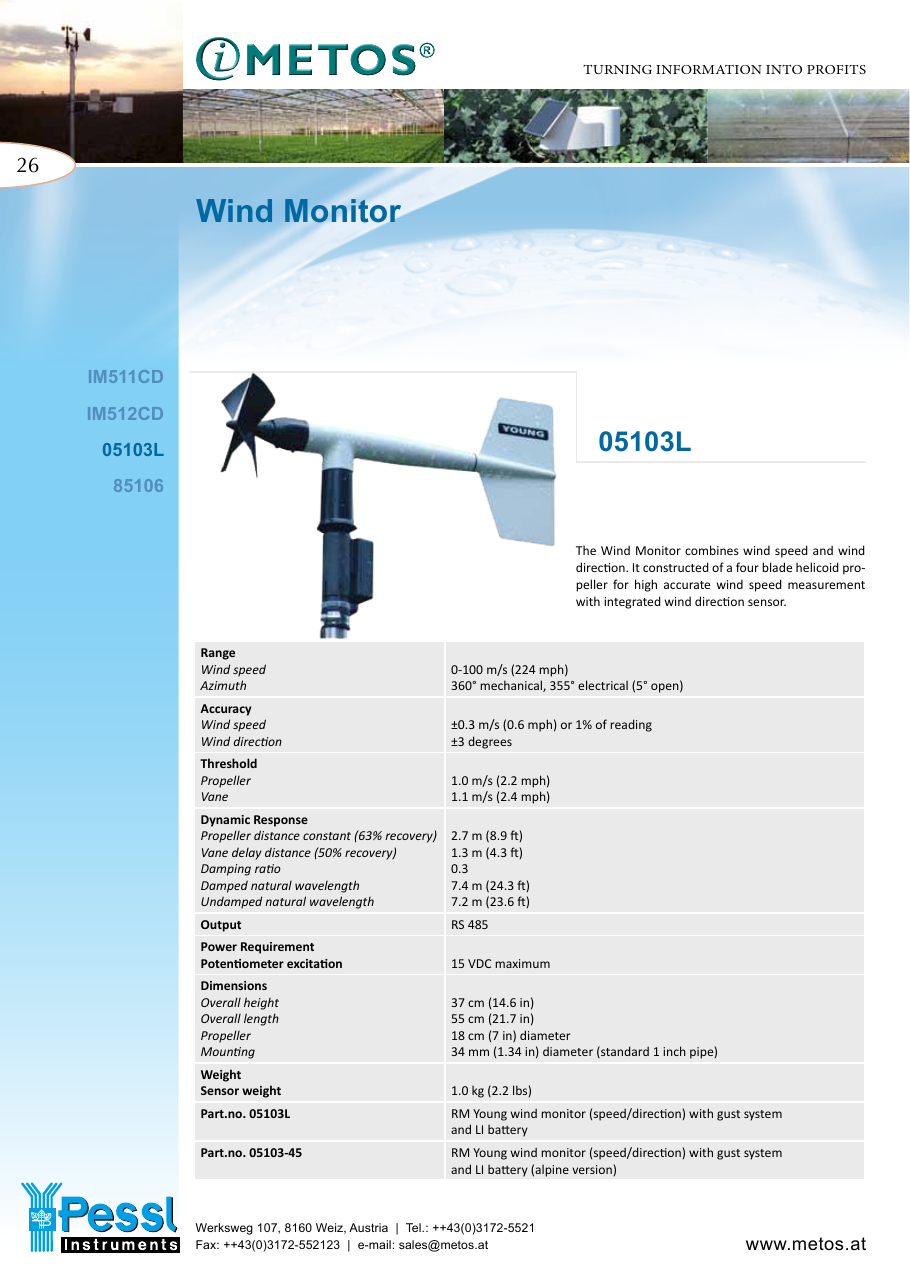

R.M. Young 05103L – Photo (3c263723dcd0_S1-1 S. 1)
Photo · 3c263723dcd0_S1-1 · S. 1
R.M. Young 05103L – Photo (3c263723dcd0_S1-1 S. 1)
Photo · 3c263723dcd0_S1-1 · S. 1

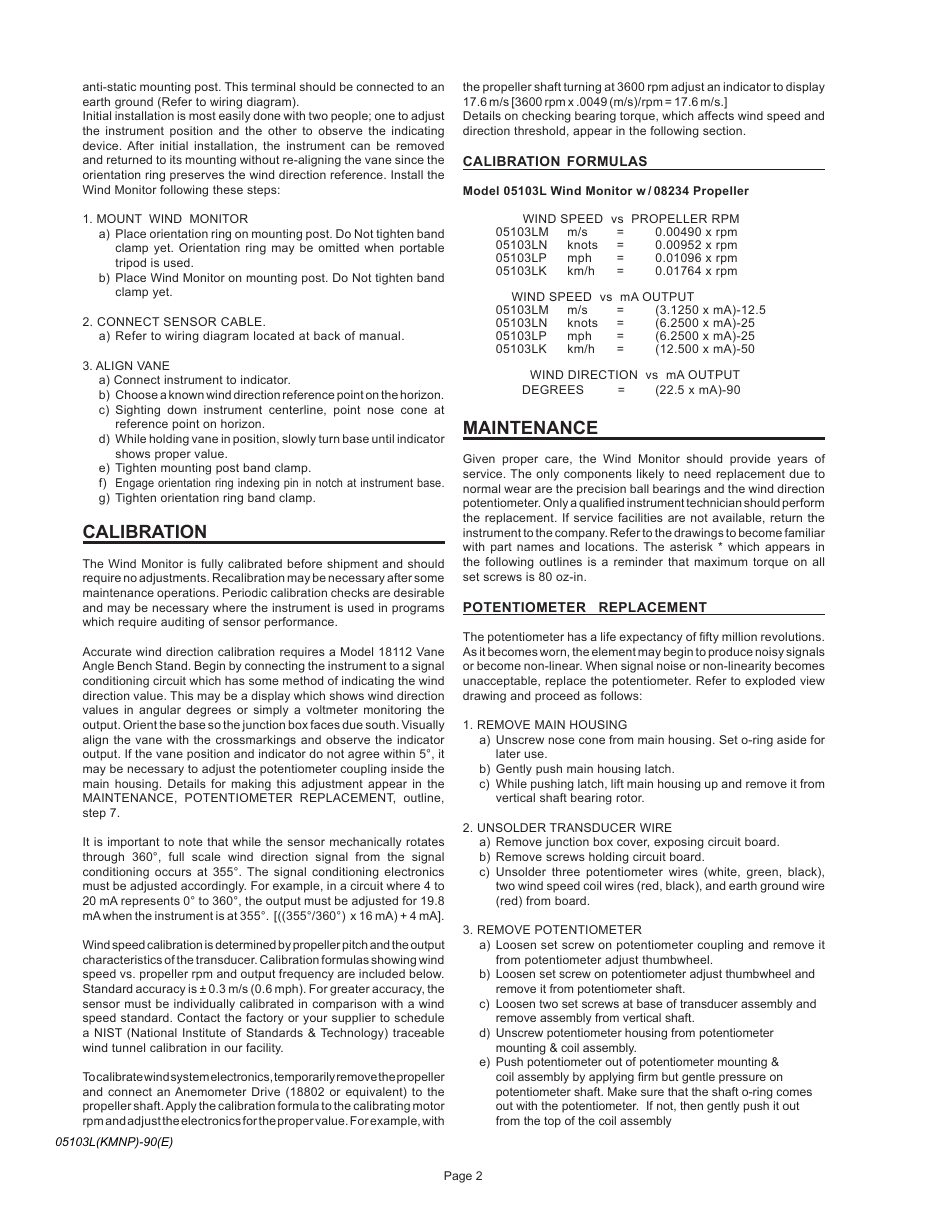

R.M. Young 05103L – Drawing (d55fd1b9da48_S2-3 S. 2)
Drawing · d55fd1b9da48_S2-3 · S. 2
R.M. Young 05103L – Drawing (3c263723dcd0_S1-1 S. 1)
Drawing · 3c263723dcd0_S1-1 · S. 1
Source: rmyoung 05103L datasheet, p. 1
