ILSUNG MEASUREMENT

AM2302

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power supply3.3-5.5V DC
Output signaldigital signal via 1-wire bus
Sensing elementPolymer humidity capacitor
Operating rangehumidity 0-100%RH; temperature -40~80Celsius
Accuracy+-2%RH (Max +-5%RH); humidity +-2%RH, temperature +-0.5Celsius
Resolution or sensitivityhumidity 0.1%RH; temperature 0.1Celsius
Repeatabilityhumidity +-1%RH, temperature +-0.2Celsius
Humidity hysteresis+-0.3%RH
Long-term Stability+-0.5%RH/year
Interchangeabilityfully interchangeable
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“/DHT22 Digital relative humidity & temperature sensor AM2302 AM2302/DHT22 1. Feature & Application Application:: *High precision *Capacitive type *Full range temperature compensated *Relative…”

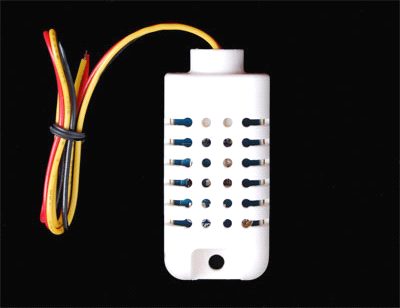

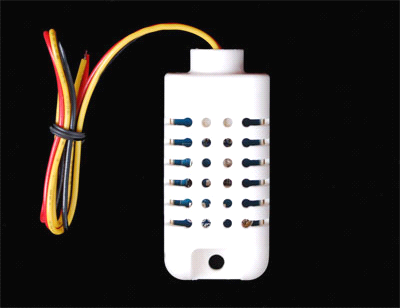

ILSUNG MEASUREMENT AM2302 – Photo (01b51a0c5d36_S1-1 S. 1)
Photo · 01b51a0c5d36_S1-1 · S. 1

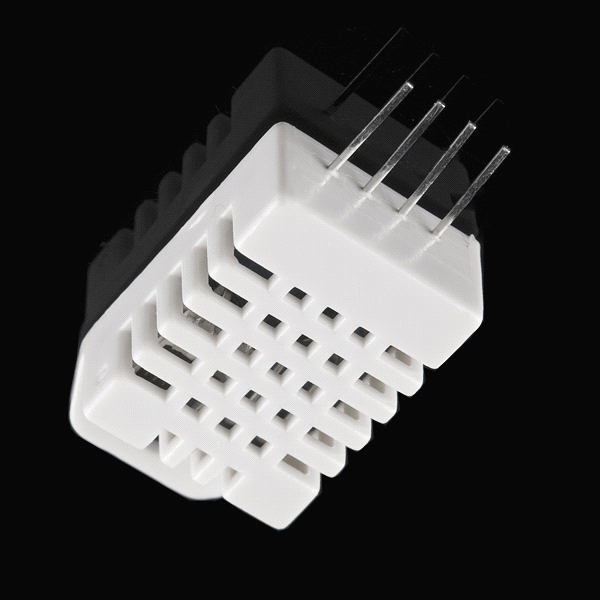

ILSUNG MEASUREMENT AM2302 – Photo (01b51a0c5d36_S1-1 S. 1)
Photo · 01b51a0c5d36_S1-1 · S. 1

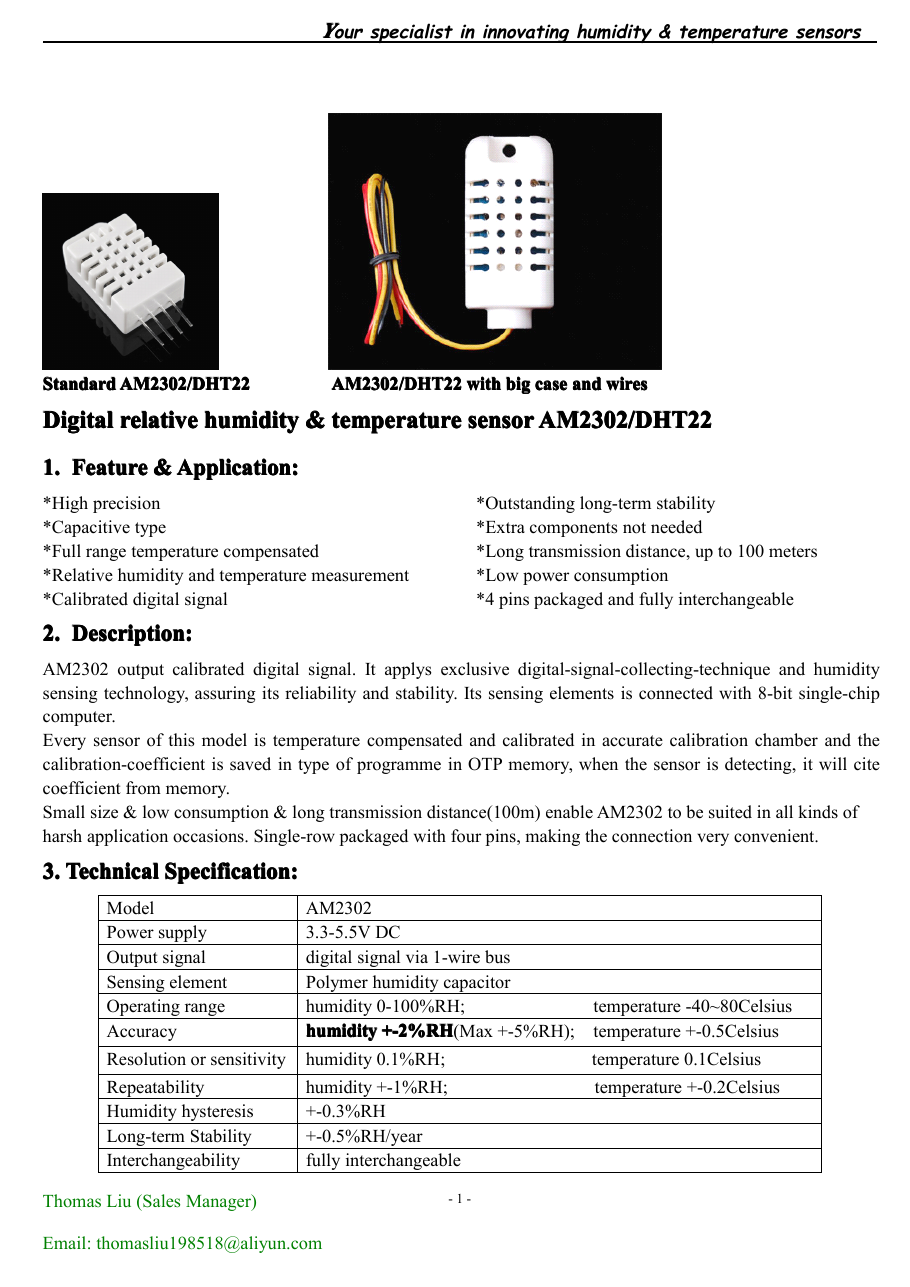

ILSUNG MEASUREMENT AM2302 – Drawing (01b51a0c5d36_S1-1 S. 1)
Drawing · 01b51a0c5d36_S1-1 · S. 1
Source: ILSUNG MEASUREMENT AM2302 datasheet, p. 1
