Library› Navigation› GMDSS› VSAT› Cobham SATCOM 800 XTR™ Ku
Cobham SATCOM

800 XTR™ Ku

VSAT · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Reflector size83 cm / 33"
CertificationCompliant with CE (Maritime), ETSI
System power supply range100-240 VAC, 50-60 Hz
Total system power consumption8W: 155 W typical, 185W max (excl. modem)
Temperature (ambient)Operational: -25ºC to +55ºC / -13°F to +131°F
HumidityEN60945 Protected, 95% (non-condensing)
IP classIP30
Compass safe distance0.3 m / 12" to EN60945
Rx10.70 to 12.75 GHz
Tx13.75 to 14.50 GHz (extended band)
Transmit Gain40.0 dBi typ. @ 14.25 GHz (incl. radome)
Receive Gain37.9 dBi typ. @ 11.70 GHz (incl. radome)
System G/T18.2 dB/K typ. @ 11.70 GHz, at ≥30° elevatio
Reflector diameter83cm
BUC power8W or 16W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SAILOR 800 XTR Ku is a mid-size VSAT antenna designed for global Ku-band services, offering fast deployment and high performance.

Applications

  • broadband at sea
  • vessel operations
  • crew welfare
  • business applications

Features

  • future-proof design
  • rapid deployment
  • best-in-class RF performance
  • secure software platform
  • dual antenna operation
  • flexible for future satellite constellations

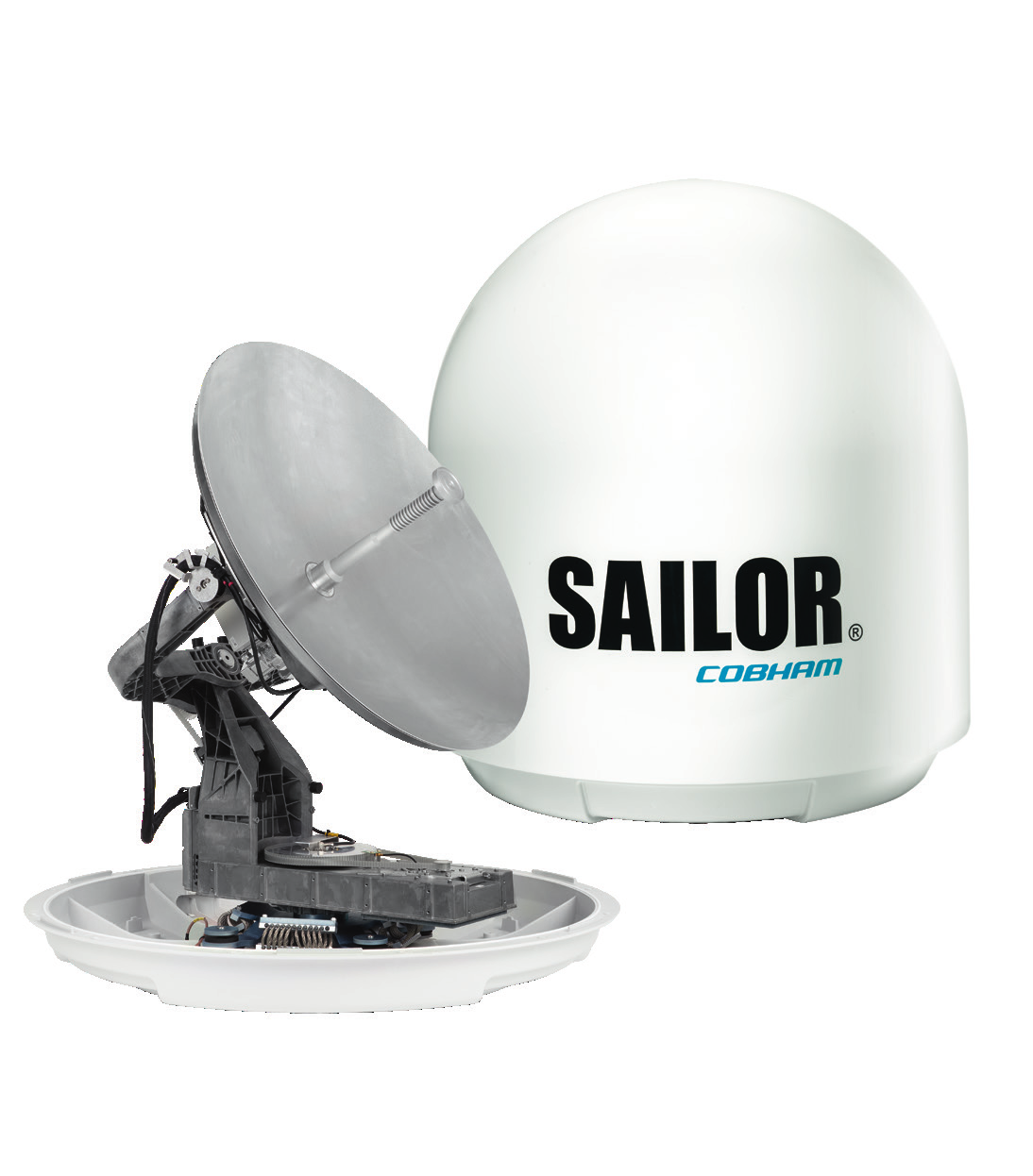

Cobham SATCOM 800 XTR™ Ku – Photo (cc9bb3eadcfd_S1-1 S. 1)
Photo · cc9bb3eadcfd_S1-1 · S. 1

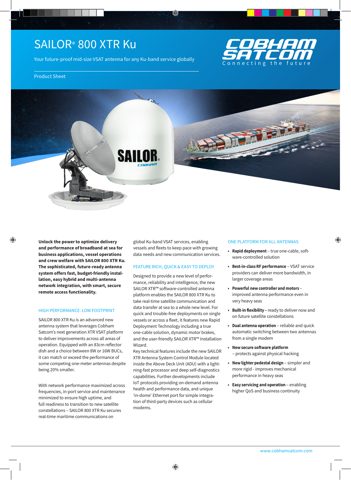

Cobham SATCOM 800 XTR™ Ku – Drawing (cc9bb3eadcfd_S1-1 S. 1)
Drawing · cc9bb3eadcfd_S1-1 · S. 1

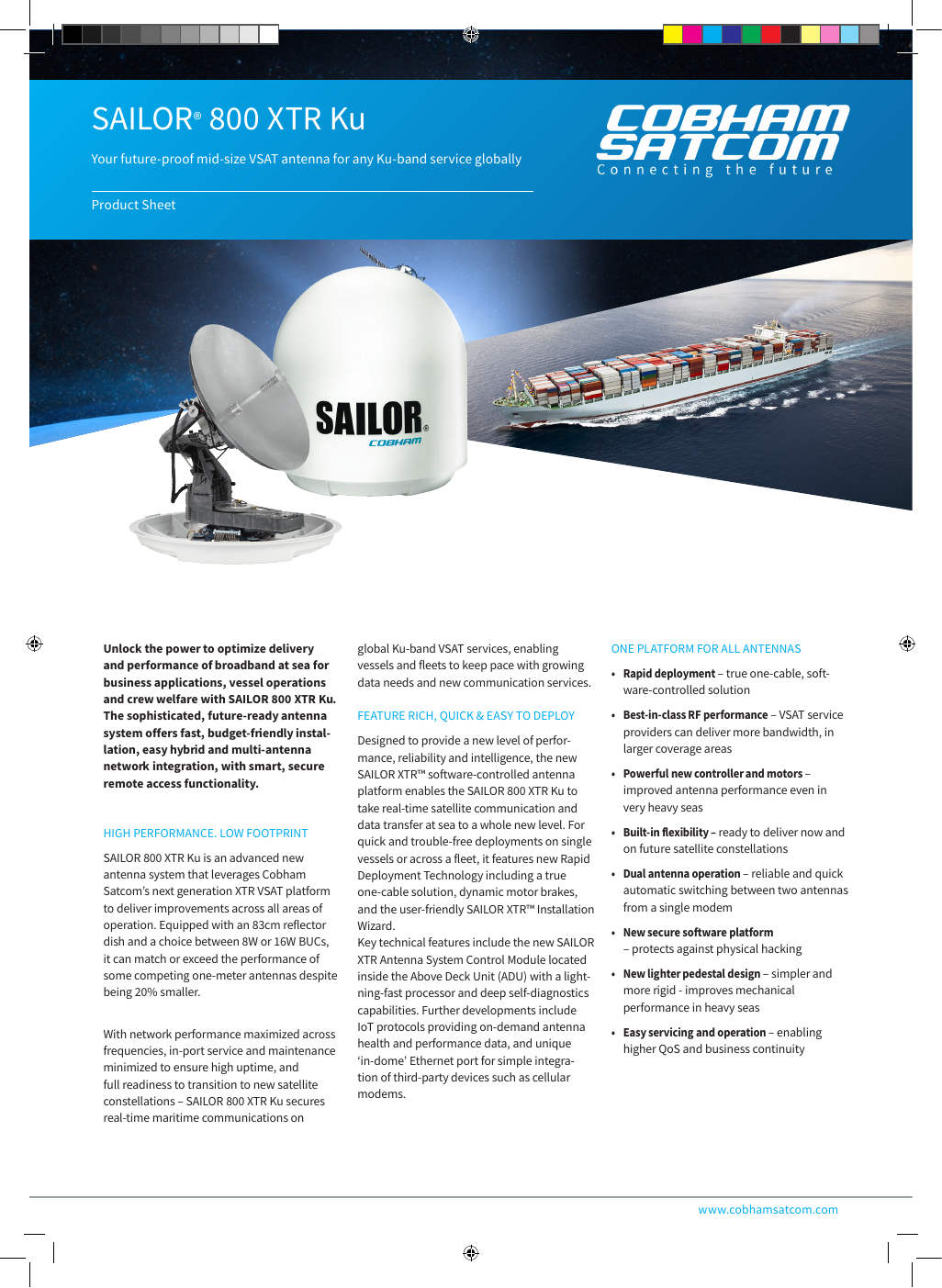

Source: Cobham SATCOM 800 XTR™ Ku datasheet, p. 1
