Library› Engine Room› Welding Consumables› Welding Electrodes› Weldfast Electrodes WELDFAST 308Mo
Weldfast Electrodes

WELDFAST 308Mo

Welding Electrodes · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

CodingE 308Mo-16
C0.08 max
Mn0.8-1.2
Si1.0 max
S0.03 max
P0.04 max
Cr18.0-21.0
Ni9.0-11.0
Mo2.0-3.0
Uts580-630 N/mm2
Elongation35-40
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“A rutile basic coated all position electrode. For welding of corrosion resistant Cr-Ni steels of AISI grades 301, 302, 304, 308 used in dairy, food processing and chemical industries.”

Weldfast Electrodes WELDFAST 308Mo – Drawing (5b4c56637ed4_S4-11 S. 5)
Drawing · 5b4c56637ed4_S4-11 · S. 5

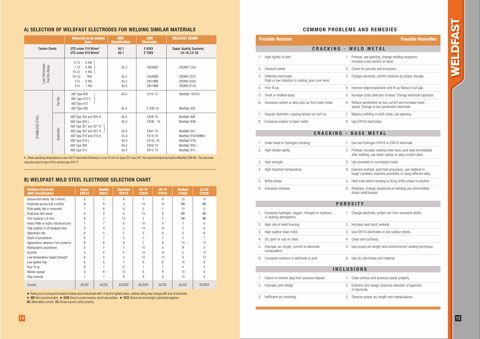

Weldfast Electrodes WELDFAST 308Mo – Drawing (5b4c56637ed4_S4-11 S. 6)
Drawing · 5b4c56637ed4_S4-11 · S. 6

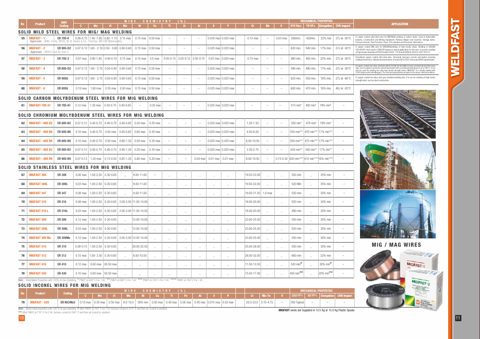

Weldfast Electrodes WELDFAST 308Mo – Page preview (5b4c56637ed4_S4-11 S. 4)
Page preview · 5b4c56637ed4_S4-11 · S. 4

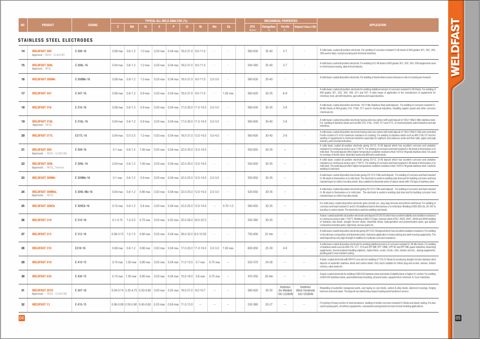

Weldfast Electrodes WELDFAST 308Mo – Page preview (5b4c56637ed4_S4-11 S. 8)
Page preview · 5b4c56637ed4_S4-11 · S. 8
Source: Weldfast Electrodes WELDFAST 308Mo datasheet, p. 1
