Library› Electrical› Cable & Wiring› Network Switch / Communication Equipment› Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T
Moxa

IKS-6728A-8PoE-4GTXSFP-HV-HV-T

Network Switch / Communication Equipment · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power InputTwo isolated 110/220 VAC (85 to 264 VAC) power supplies for switch and two isola
Input Voltage48 VDC (46-57 VDC)
Power input110 VAC/230 VAC
EPS input48 VDC (46-57 VDC)
Input Current0.53 A (Power consumption of PoE devices is not included.)
HousingIP30 protection
Dimensions440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Weight4250 g
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The IKS-6728A-8PoE is a managed industrial rackmount switch with 8 PoE+ ports. It supports two isolated power supplies, one for the switch and one for the PoE+ ports.

Applications

  • Industrial Automation

Features

  • High Power PoE+ Support
  • Redundant Power Supplies
  • VLAN Support

Options

  • Modular Interface Modules
  • Power Redundancy
Source: Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T datasheet, p. 9

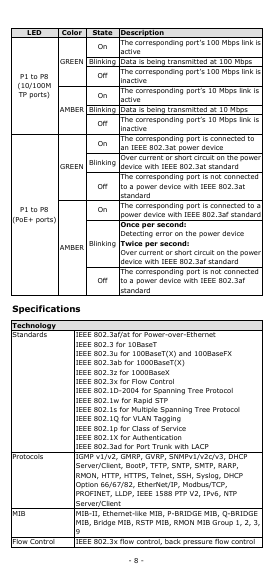

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Photo (bb786472fccd_S3-9 S. 3)
Photo · bb786472fccd_S3-9 · S. 3

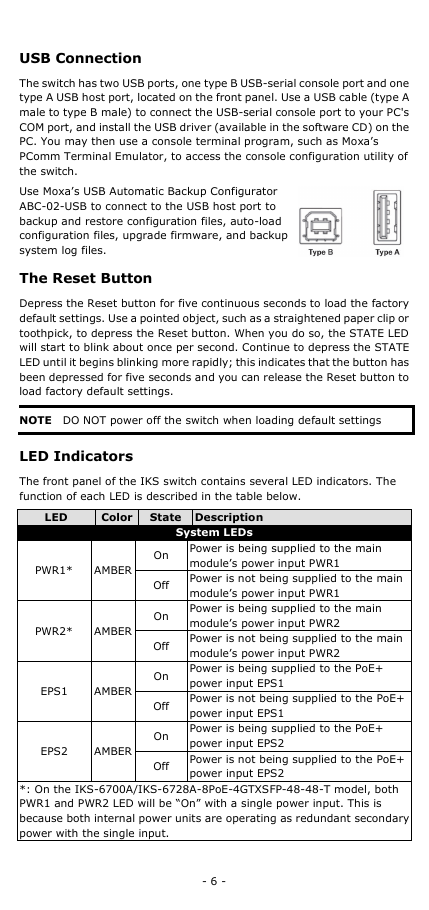

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Drawing (83c9581ded58_S4-9 S. 6)
Drawing · 83c9581ded58_S4-9 · S. 6

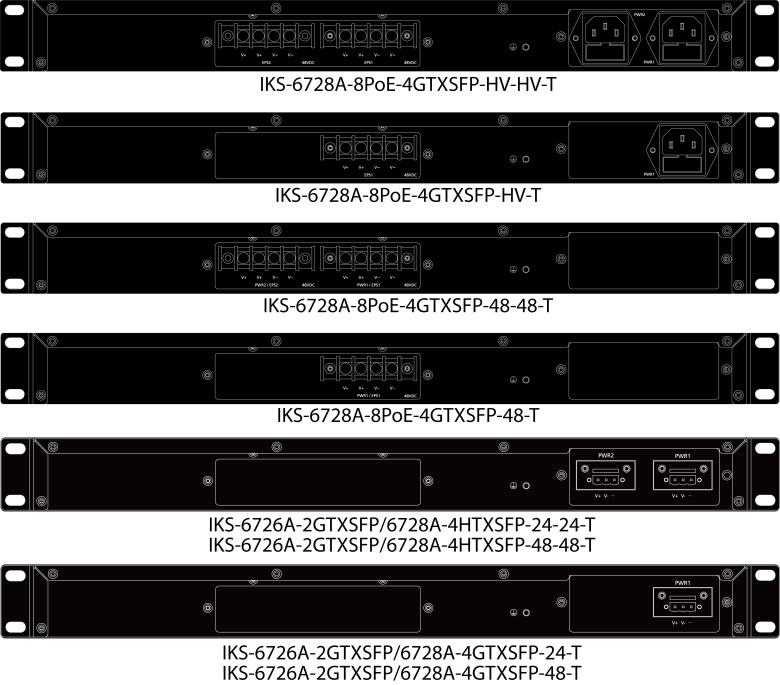

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Drawing (bb786472fccd_S3-9 S. 4)
Drawing · bb786472fccd_S3-9 · S. 4

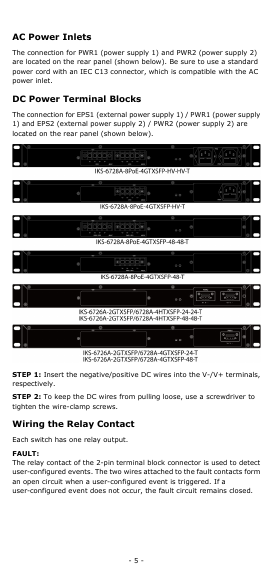

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Page preview (83c9581ded58_S4-9 S. 5)
Page preview · 83c9581ded58_S4-9 · S. 5

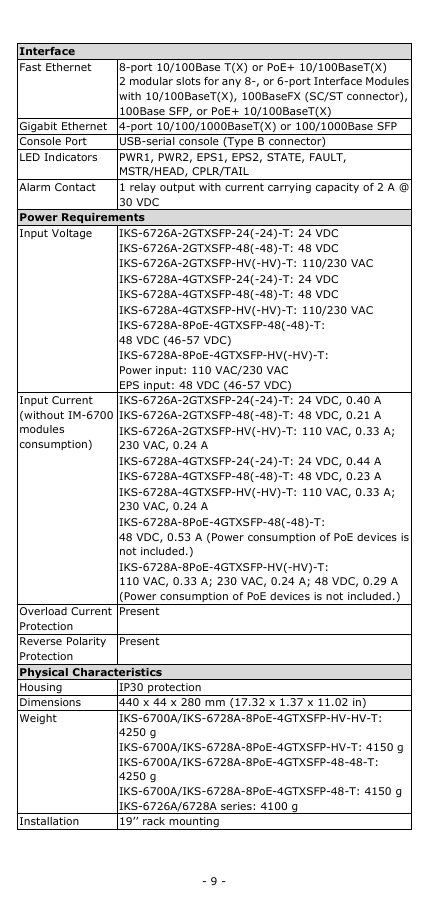

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Page preview (bb786472fccd_S3-9 S. 3)
Page preview · bb786472fccd_S3-9 · S. 3

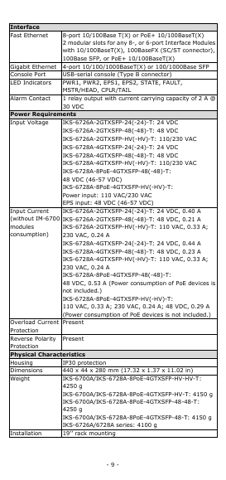

Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T – Page preview (bb786472fccd_S3-9 S. 7)
Page preview · bb786472fccd_S3-9 · S. 7
Source: Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T datasheet, p. 4
