Victron Energy

MultiPlus-II

Battery Charger Panel · Power Distribution

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage120 V
DC Input voltage range38 – 66 V
AC Output voltage230 V ± 2%
AC output frequency50 Hz ± 0,1% (1)
AC output current29A
Continuous output power at 25°C (3)8000 VA
Continuous output power at 25°C6400 W
Continuous output power at 40°C5500 W
Continuous output power at 65°C4000 W
Peak power15000 W
Maximum output fault current80A
Maximum output over current protection AC OUT 1135A
Maximum output over current protection AC OUT 250A
Maximum battery discharge current188A
Maximum efficiency95%
Zero load power29 W
Zero load power in AES mode19 W
AC Output current29A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Inverter/charger for power conversion and battery management.

Applications

  • power supply
  • backup power
Source: Victron Energy MultiPlus-II datasheet, p. 36

Features

  • Versatile battery charging
  • Multiple connection options

Options

  • Remote control
  • Programmable relay
  • Analog/digital input/output

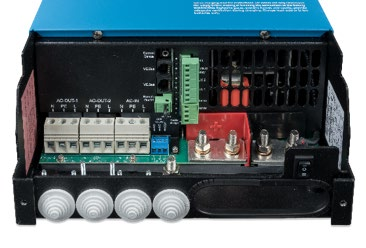

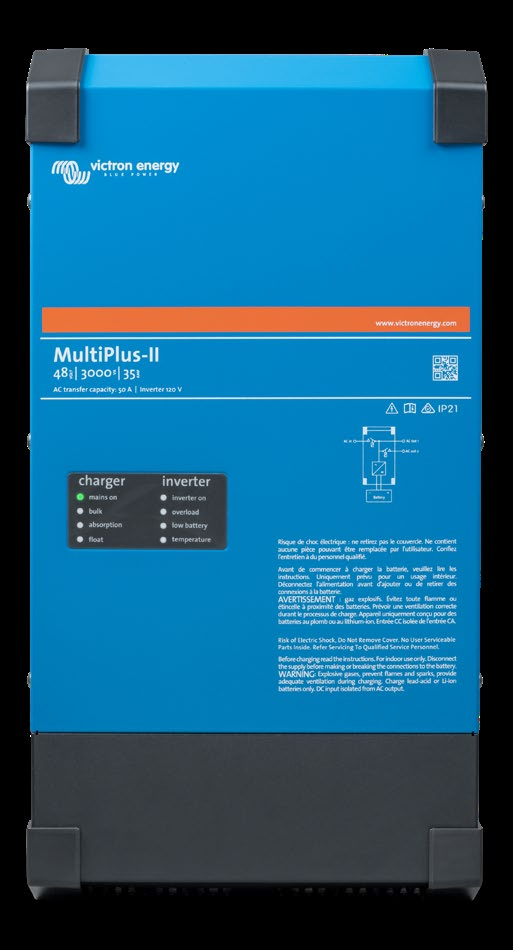

Victron Energy MultiPlus-II – Photo (3f4b8940f5b8_S1-1 S. 1)
Photo · 3f4b8940f5b8_S1-1 · S. 1
Victron Energy MultiPlus-II – Photo (3f4b8940f5b8_S1-1 S. 1)
Photo · 3f4b8940f5b8_S1-1 · S. 1
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 3)
Photo · 4da928471014_S2-27 · S. 3
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 4)
Photo · 4da928471014_S2-27 · S. 4
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 4)
Photo · 4da928471014_S2-27 · S. 4
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 4)
Photo · 4da928471014_S2-27 · S. 4
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 4)
Photo · 4da928471014_S2-27 · S. 4
Victron Energy MultiPlus-II – Photo (4da928471014_S2-27 S. 4)
Photo · 4da928471014_S2-27 · S. 4
Source: Victron Energy MultiPlus-II datasheet, p. 2
