Library› Engine Room› Main Engines (4-Stroke)› Dual-Fuel Engine (Marine)› WinGD flex50DF
WinGD

flex50DF

Dual-Fuel Engine (Marine) · Main Engines (4-Stroke)

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Cylinder bore500 mm🔖
Piston stroke2050 mm🔖
Speed99-124 rpm🔖
Mean effective pressure at R117.3 bar🔖
📄
Download datasheet (PDF) (217 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“factory acceptance tested and delivered to shipyards, also testing of the first X62DF customer engine has been completed. An additional milestone has been reached with the Type Approval Testing of…”

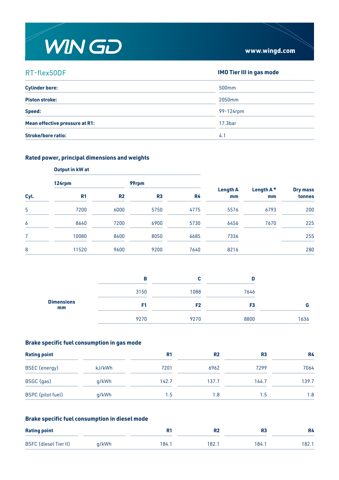

WinGD flex50DF – Drawing (d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c S. 1)
Drawing · d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c · S. 1

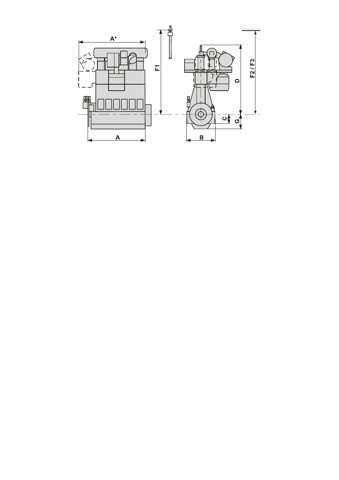

WinGD flex50DF – Drawing (d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c S. 2)
Drawing · d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c · S. 2

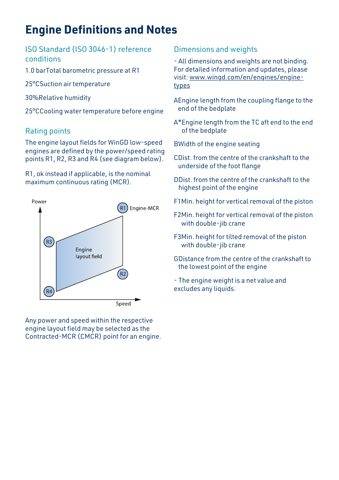

WinGD flex50DF – Drawing (d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c S. 3)
Drawing · d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c · S. 3

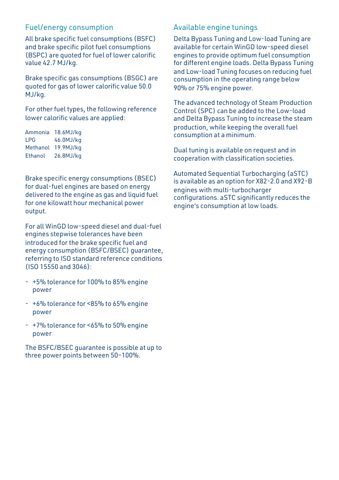

WinGD flex50DF – Page preview (d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c S. 4)
Page preview · d19fe3b1918ad6d59a2f275caf5d2fb710e71ba6360428d051f09da32e60732c · S. 4

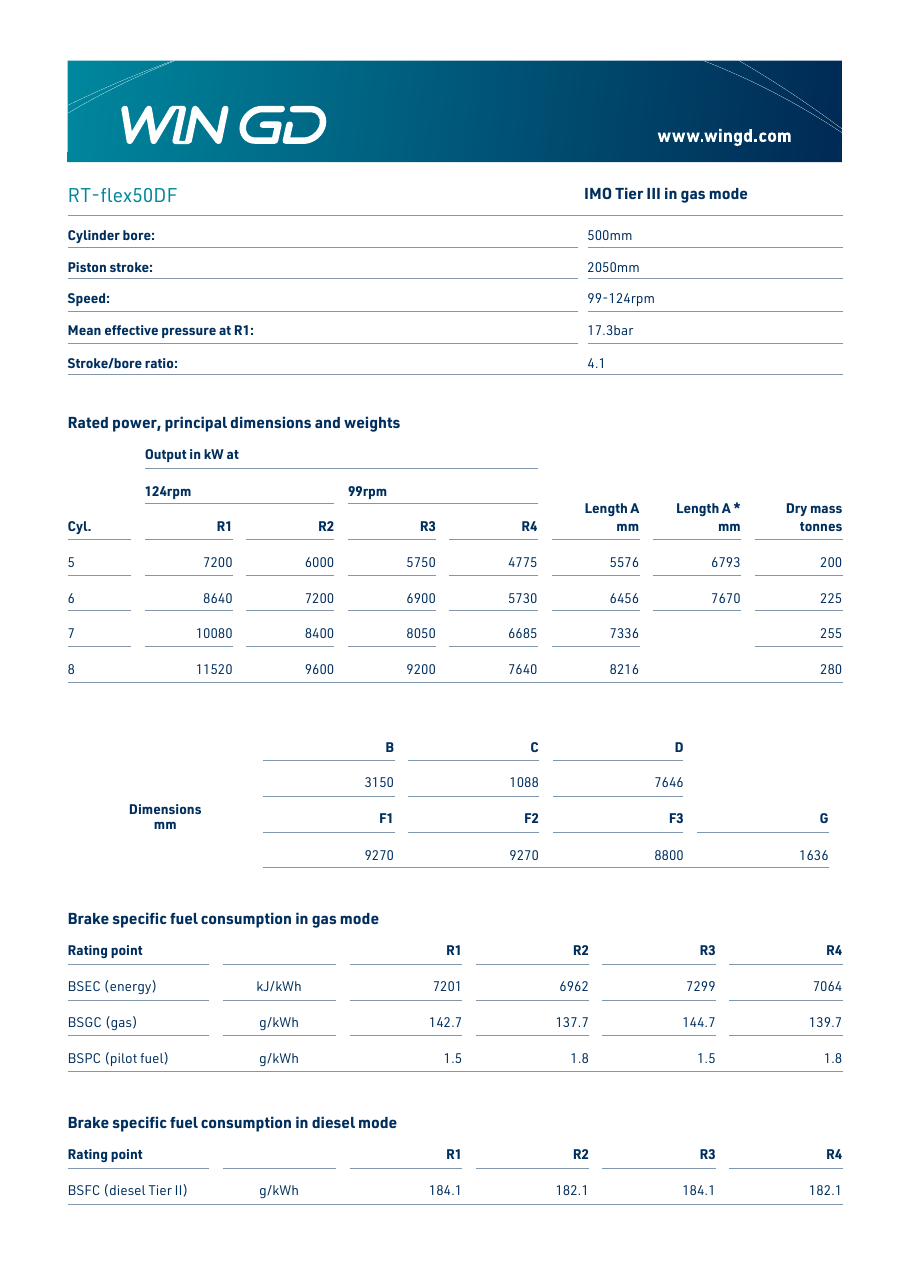

Source: WinGD (Winterthur Gas & Diesel) flex50DF datasheet, p. 1
