Library› Engine Room› Main Engines (4-Stroke)› Main Engine 4-Stroke› Societe Internationale des Moteurs Baudouin S.A.S.U. W105M
Societe Internationale des Moteurs Baudouin S.A.S.U.

W105M

Main Engine 4-Stroke · Main Engines (4-Stroke)

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Bore and stroke105 x 130 mm
Number of cylinders4 in line
Total displacement4,5 litres
Compression ratio18/1
Engine rotation (ISO 1204 standard)counterclockwise
Idle speed650 rpm
Flywheel housingSAE 3
FlywheelSAE 11,5”
Ambient temperature25 °C / 77 °F
Relative density0,840 ± 0,005
Lower calorific power42 700 kJ/kg
Relative humidity30%R
Raw water temperature25 °C / 77 °F
Inlet limit temperature35 °C / 95 °F
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“4 W105M 4 Stroke diesel engine, direct injection Bore and stroke Number of cylinders Total displacement Compression ratio Engine rotation (ISO 1204 standard) Idle speed Flywheel housing Flywheel”

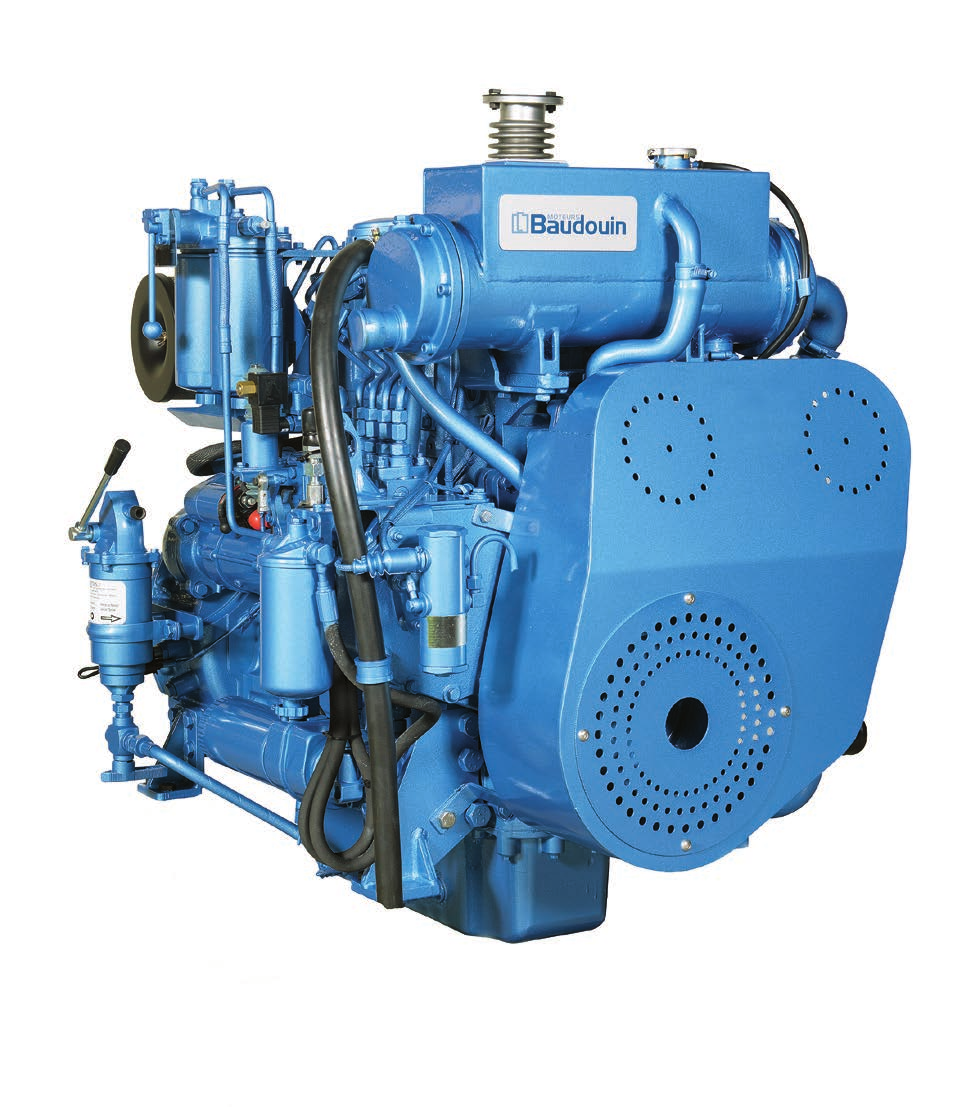

Societe Internationale des Moteurs Baudouin S.A.S.U. W105M – Photo (4b612c0a33ac_S1-1 S. 1)
Photo · 4b612c0a33ac_S1-1 · S. 1
Societe Internationale des Moteurs Baudouin S.A.S.U. W105M – Drawing (4b612c0a33ac_S1-1 S. 1)
Drawing · 4b612c0a33ac_S1-1 · S. 1

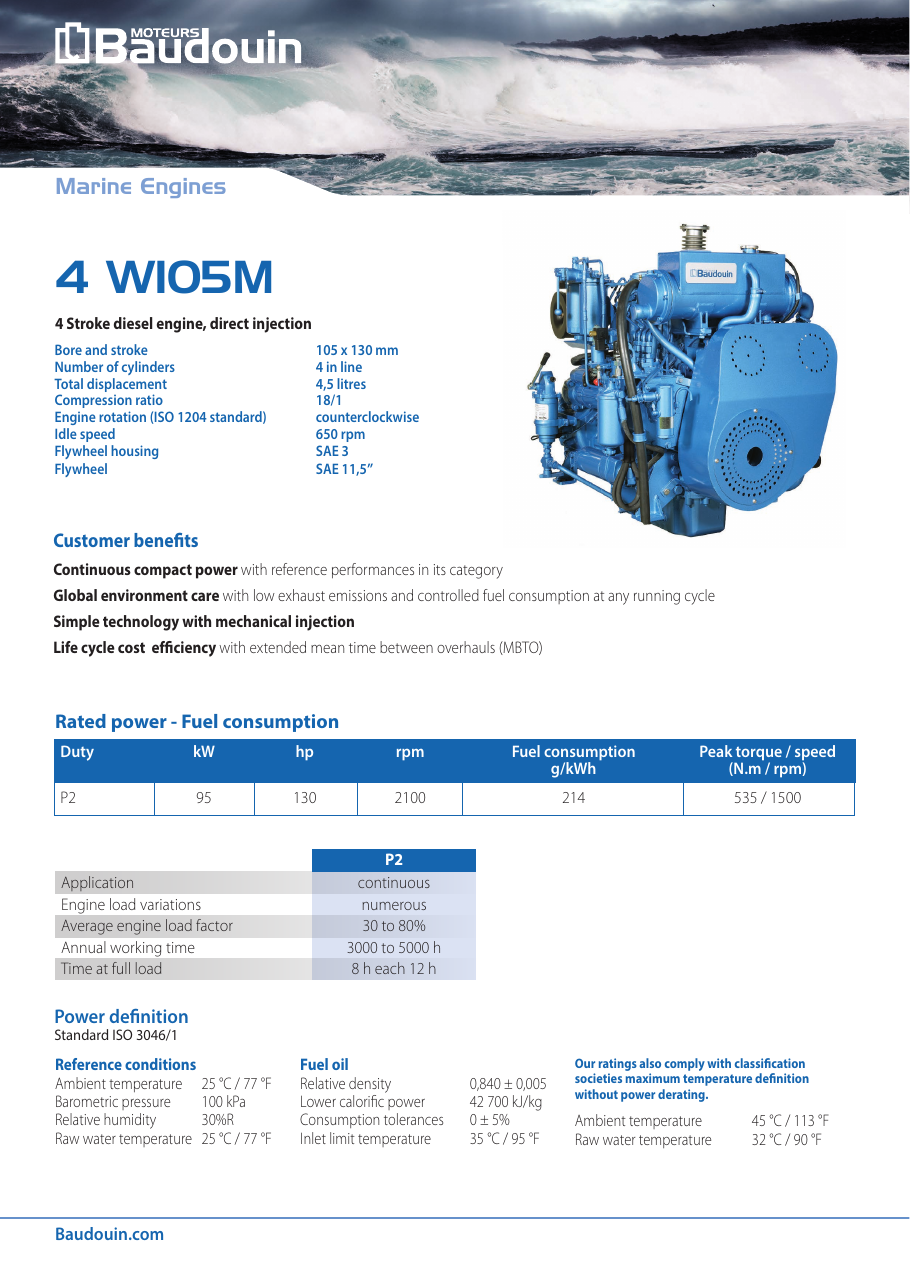

Source: Societe Internationale des Moteurs Baudouin S.A.S.U. W105M datasheet, p. 1
