Library› Electrical› Lighting› LED Light Fitting› Sealite 2NM
Sealite

2NM

LED Light Fitting · Lighting

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

LED Life Expectancy>100,000 hours
Nominal Voltage3.6 V
Autonomy>20 days
Temperature Range-40 to 80°C
Output1.4 watts
Lens Diameter150 / 57/8 mm/inches
Mounting3 & 4 hole 200mm bolt pattern
Height122 / 47/8 mm/inches
Width231 / 91/8 mm/inches
Mass1 / 21/4 kg/lbs
Product Life ExpectancyUp to 12 years
CertificationsUL 1104
Battery16Ah
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Sealite BargeSafe™ Solar 2NM is a solar-powered LED barge light designed for navigation and safety.

Applications

  • Barge safety

Features

  • Certified to UL 1104 and COLREG-72
  • 2NM visible range
  • World-class LED lens
  • Integrated circuit protection
  • IP68 waterproof rating

Options

  • 16Ah battery
  • 50mm pole mount adapter plate

Standards

  • COLREG-72
  • IALA E-200-1

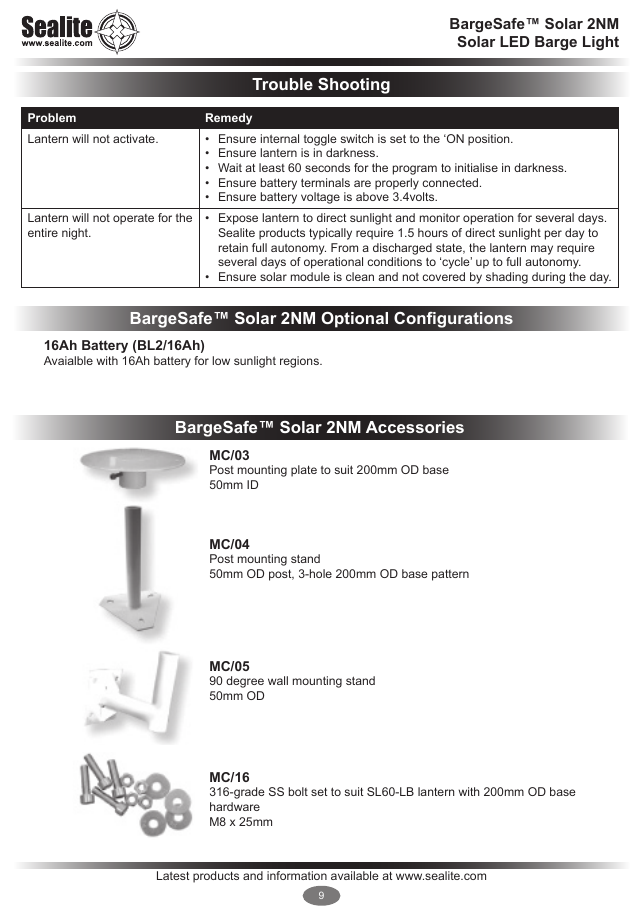

Sealite 2NM – Drawing (5cc32a6c48af_S5-9 S. 5)
Drawing · 5cc32a6c48af_S5-9 · S. 5
Source: Sealite 2NM datasheet, p. 5
