Library› Engine Room› Industrial Valves› Gate Valve› Schubert & Salzer Control Systems 8030-GS3
Schubert & Salzer Control Systems

8030-GS3

Gate Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal sizeDN 15 up to DN 250
Nominal pressure acc. ANSIANSI 150
Nominal pressure acc. JIS10K
Media temperatureVersions from -60°C up to +350°C
Rangeability30 : 1
LeakageDisc pair
% of Kvs<0,0001
IEC 60534-4IV-S1
En122661E
Spezific leakage rateISO FE-BH-CC3-SSA0-t(-40°C/+350°C)-PN40-ISO 15848-1
Protection classIP 65 (Din 40050)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Sliding Gate Motor Valve 8030 GS 3 series, DN 15 up to DN 250 Sliding gate motor valve for control and switching of neutral through to highly aggressive media in process engineering, chemical…”

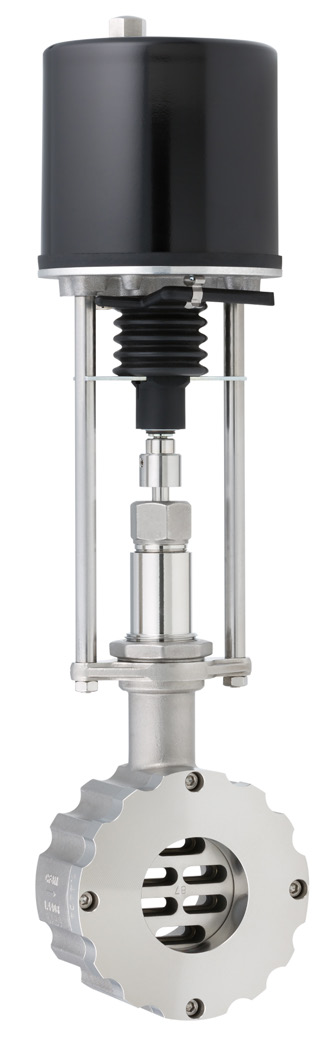

Schubert & Salzer Control Systems 8030-GS3 – Photo (255930e345b7_S1-5 S. 1)
Photo · 255930e345b7_S1-5 · S. 1

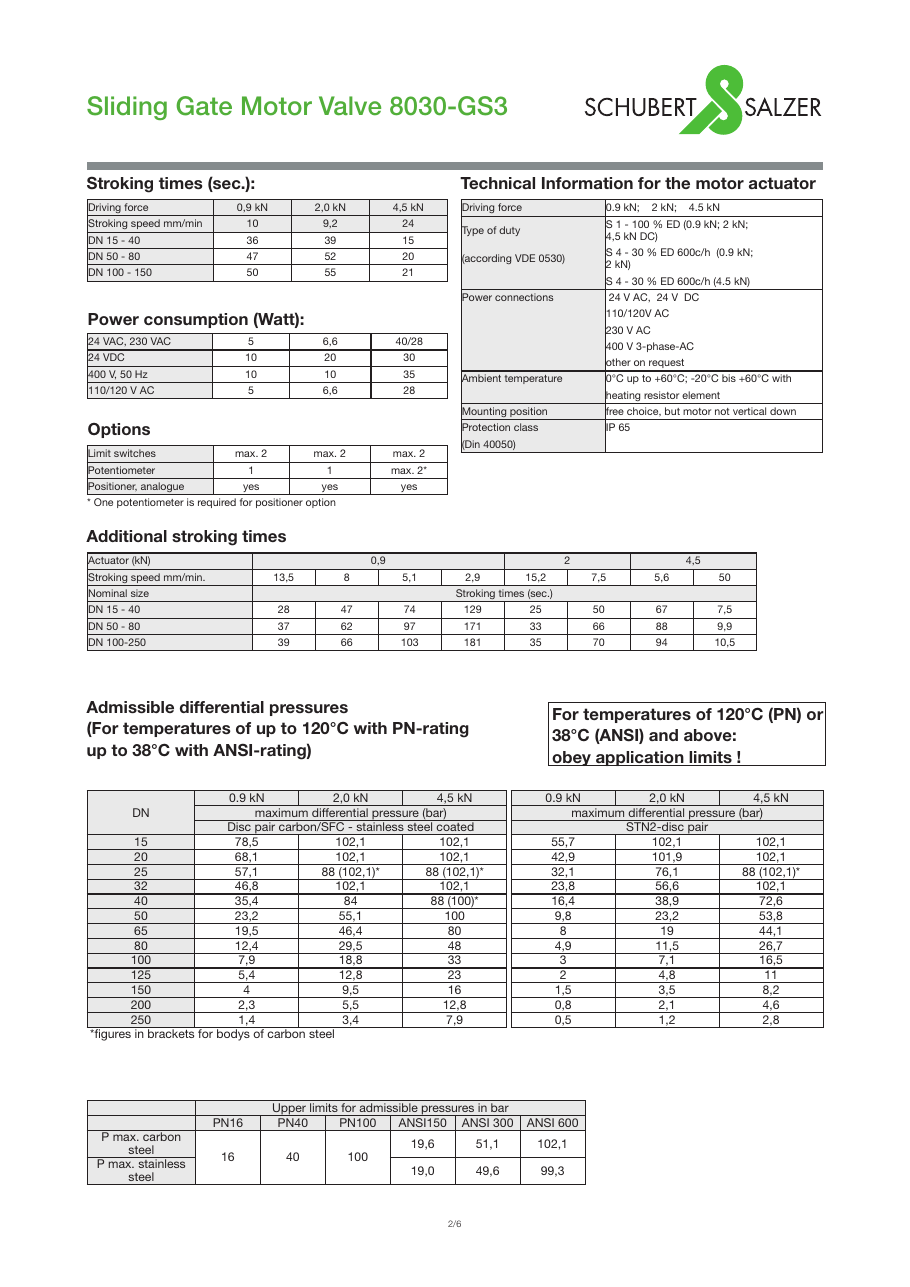

Schubert & Salzer Control Systems 8030-GS3 – Drawing (255930e345b7_S1-5 S. 2)
Drawing · 255930e345b7_S1-5 · S. 2

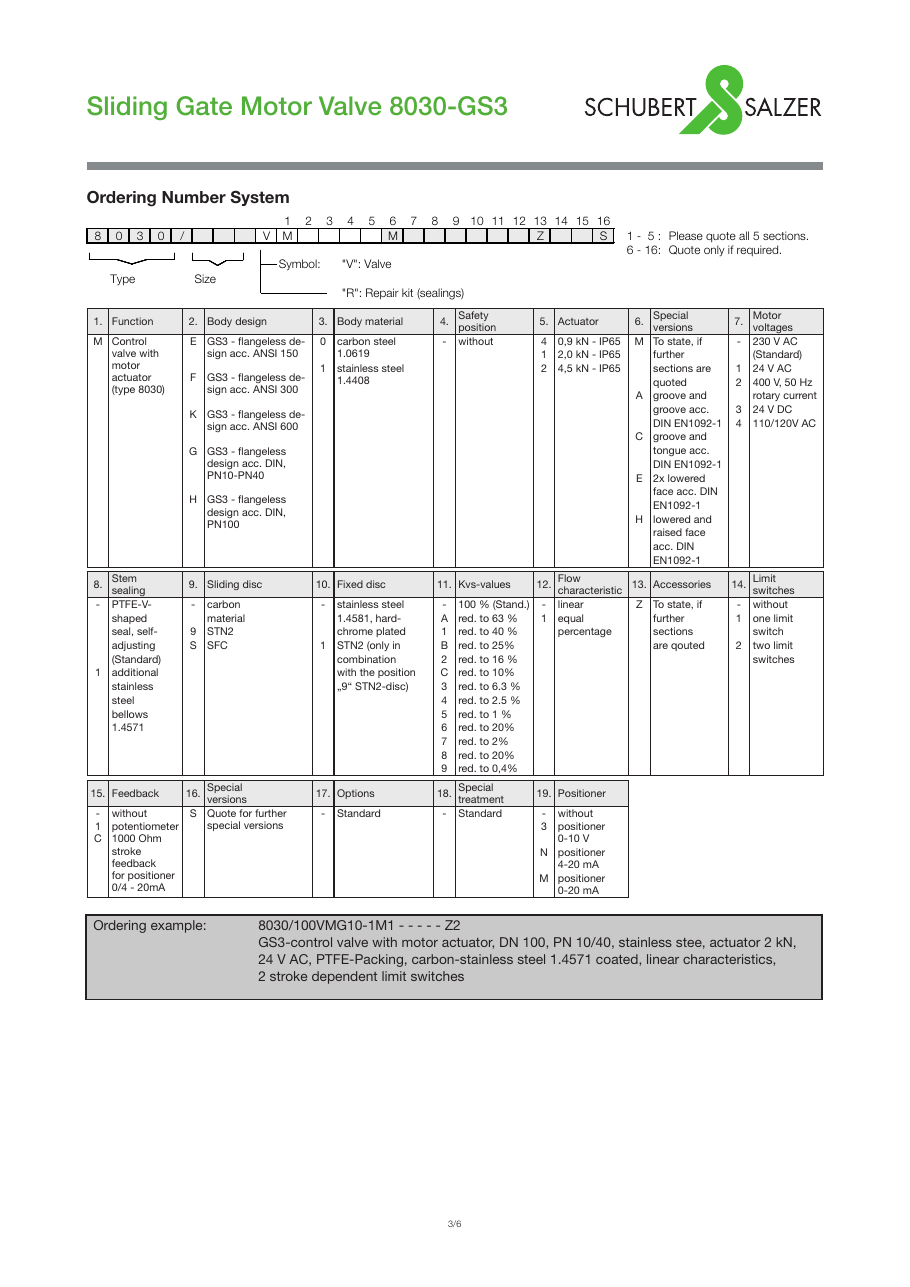

Schubert & Salzer Control Systems 8030-GS3 – Drawing (255930e345b7_S1-5 S. 3)
Drawing · 255930e345b7_S1-5 · S. 3

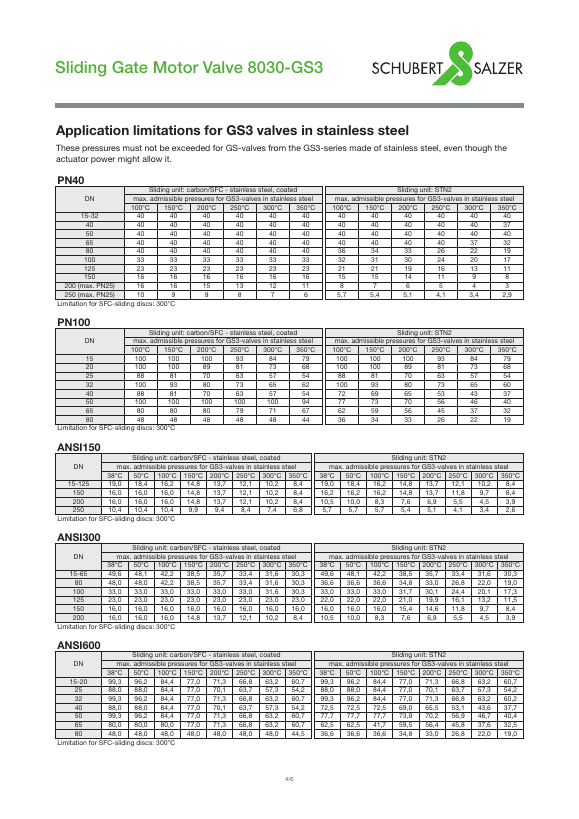

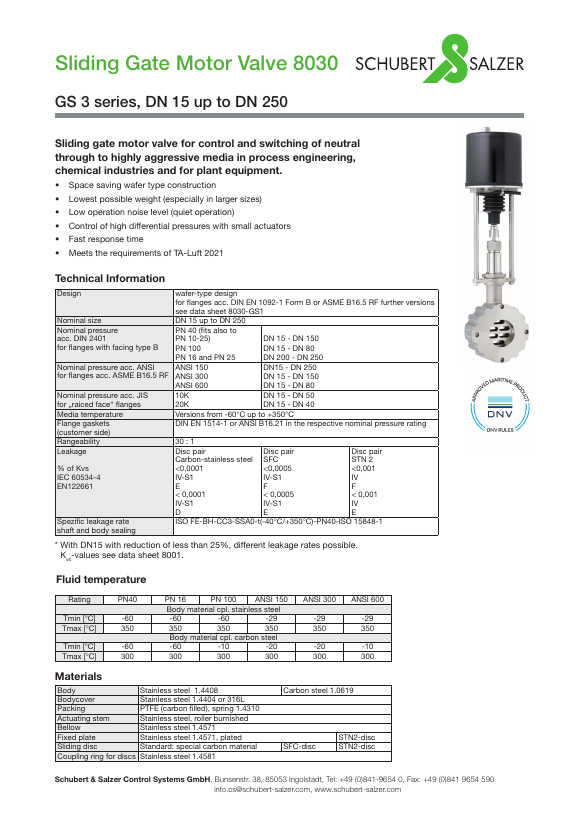

Schubert & Salzer Control Systems 8030-GS3 – Page preview (255930e345b7_S1-5 S. 1)
Page preview · 255930e345b7_S1-5 · S. 1
Schubert & Salzer Control Systems 8030-GS3 – Page preview (255930e345b7_S1-5 S. 4)
Page preview · 255930e345b7_S1-5 · S. 4

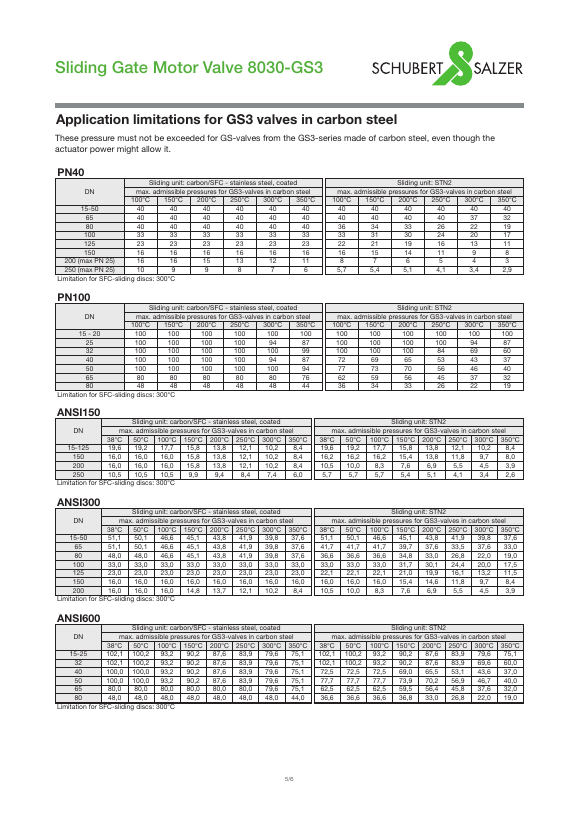

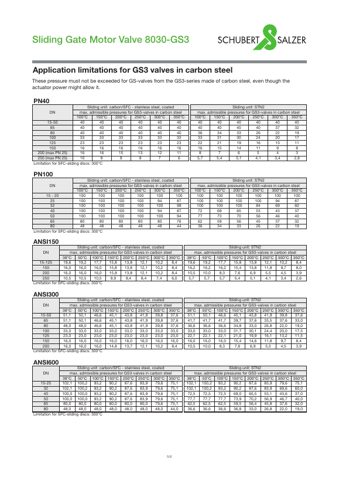

Schubert & Salzer Control Systems 8030-GS3 – Page preview (255930e345b7_S1-5 S. 5)
Page preview · 255930e345b7_S1-5 · S. 5
Source: Schubert & Salzer Control Systems 8030-GS3 datasheet, p. 1
