Nuova Fima

MN16

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Design: EN837-1.-1...0 bar kPa MPa psi
Safety designation: S3 as per EN 837-2.0...0.6 bar kPa MPa psi
Accuracy class: 0,6 as per EN 837-1.0...1 bar kPa MPa psi
Ambient temperature: -13...+149 °F (-25...+65 °C).0...1.6 bar kPa MPa psi
Process fluid temperature: -40...+302°F (-40...+150 °C).0...2.5 bar kPa MPa psi
Calibration temperature: 68°F (+20 °C).0...4 bar kPa MPa psi
Thermal drift: ±0,4 %/10 K of range (starting from 68°F - 20°C).0...6 bar kPa MPa psi
Working pressure: max 75% of FSV.0...10 bar kPa MPa psi
Overpressure limit: 30% of FSV.0...16 bar kPa MPa psi
Protection degree: IP 55 as per IEC 529.0...25 bar kPa MPa psi
Socket material: AISI 316L st.st.0...30 bar kPa MPa psi
Bourdon tube: AISI 316L st.st. seamless tube.0...40 bar kPa MPa psi
Case: stainless steel.0...60 bar kPa MPa psi
Ring: stainless steel, bayonet lock.0...100 bar kPa MPa psi
Blow out disk: stainless steel0...160 bar kPa MPa psi
Window: safety glass.0...160 bar kPa MPa psi
Movement: stainless steel with internal limit stops of minimum and maximum p0...250 bar kPa MPa psi
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“PED 2014/68/UE These instruments have been specifically designed for laboratories, instrument testing or recalibration facilities, and for all applications where accuracy and repeatability are of…”

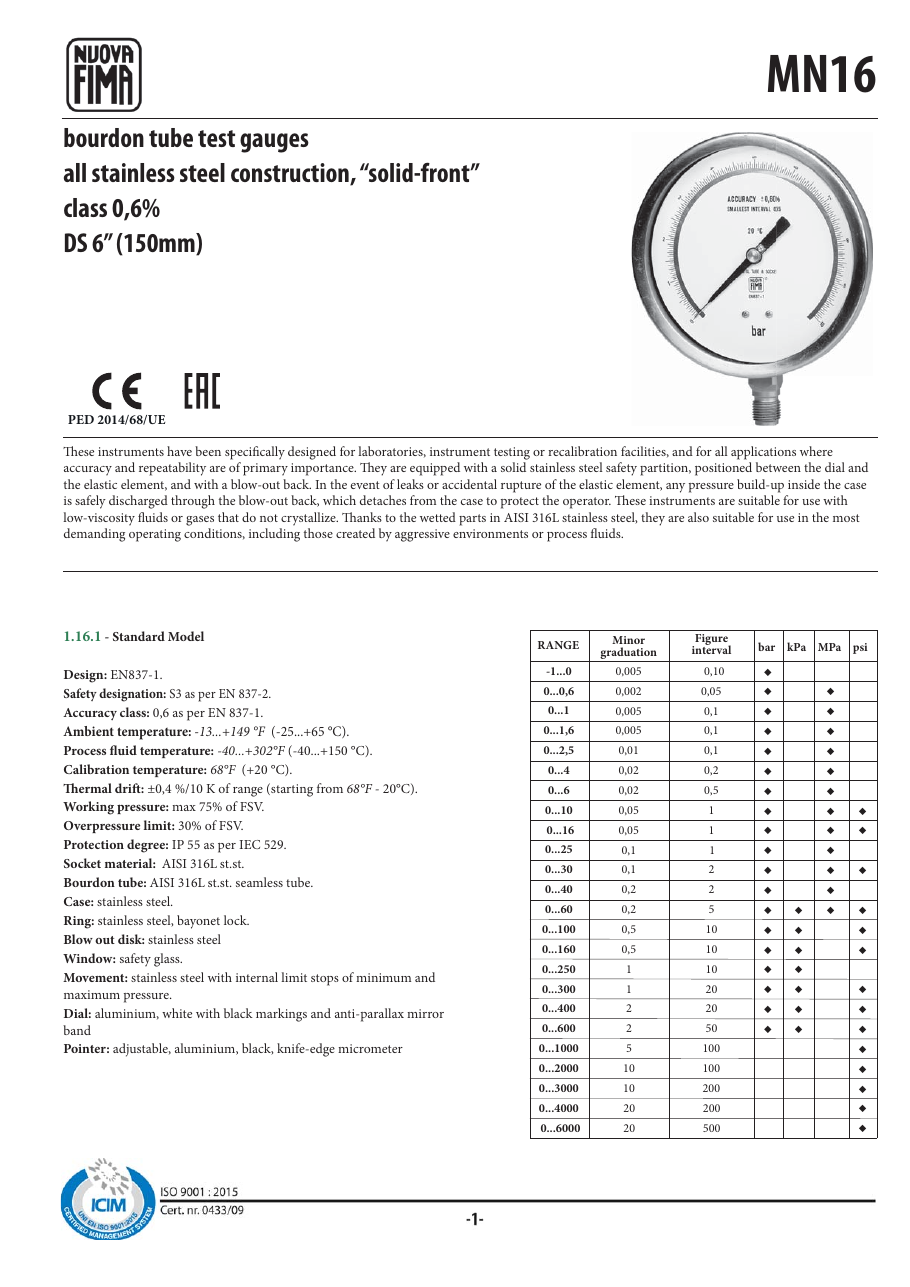

Nuova Fima MN16 – Drawing (ea3f060779d9_S1-1 S. 1)
Drawing · ea3f060779d9_S1-1 · S. 1
Source: 15020_RC4=Data Sheet MN16 DN150.ai, p. 1
