Library› Electrical› Instrumentation & Gauges› Pressure Gauge› Nuova Fima MN17
Nuova Fima

MN17

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

DesignEN837-1.
Safety designationS3 as per EN 837-2.
Accuracy class0,25 as per EN 837-1.
Ambient temperature+59...+149 °F (+15...+65 °C).
Process fluid temeprature+149°F (max +65 °C).
Calibration temperature68°F (+20 °C).
Thermal drift±0,1 %/10 K of range (starting from 68°F - 20°C).
Working pressuremax 75% of FSV.
Protection degreeIP 55 as per IEC 529.
Socket materialAISI 316L st.st.
Bourdon tubeberyllium copper alloy.
Casestainless steel.
Ringstainless steel, bayonet lock.
Blow out diskstainless steel.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“These instruments have been specifically designed for laboratories, instrument testing or recalibration facilities, and for all applications where accuracy and repeatability are of primary…”

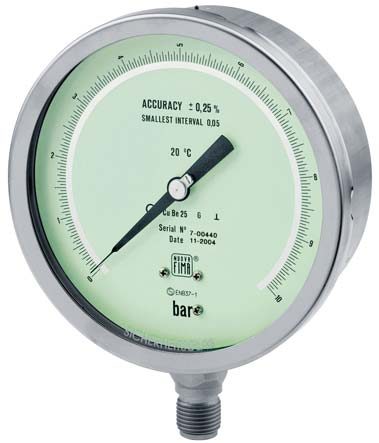

Nuova Fima MN17 – Photo (f16aab16b880_S1-2 S. 1)
Photo · f16aab16b880_S1-2 · S. 1
Nuova Fima MN17 – Photo (f16aab16b880_S1-2 S. 2)
Photo · f16aab16b880_S1-2 · S. 2

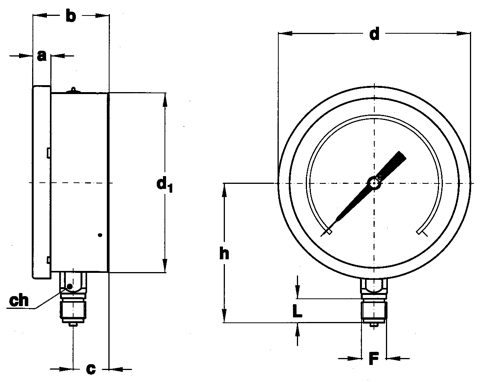

Nuova Fima MN17 – Drawing (f16aab16b880_S1-2 S. 2)
Drawing · f16aab16b880_S1-2 · S. 2
Nuova Fima MN17 – Drawing (f16aab16b880_S1-2 S. 2)
Drawing · f16aab16b880_S1-2 · S. 2

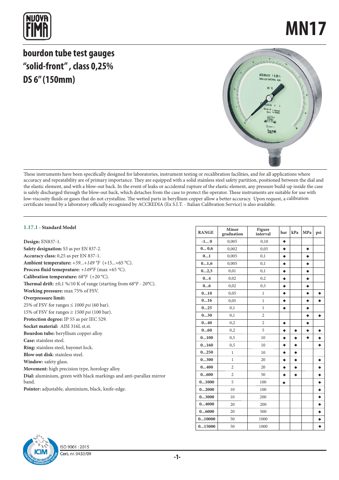

Nuova Fima MN17 – Drawing (f16aab16b880_S1-2 S. 1)
Drawing · f16aab16b880_S1-2 · S. 1
Nuova Fima MN17 – Drawing (f16aab16b880_S1-2 S. 2)
Drawing · f16aab16b880_S1-2 · S. 2
Source: Nuova Fima MN17 datasheet, p. 1
