Library› Electrical› Electrical Components & Switchgear› Electrical Enclosure / Junction Box› Gustav Hensel KF 1600 H
Gustav Hensel

KF 1600 H

Electrical Enclosure / Junction Box · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Wall thickness of the bottom part2,6 mm
Rated insulation voltage1000 V a.c./d.c.
MaterialPC-GFS (polycarbonate)
Degree of protectionIP 66 / IP 67 / IP 69
Mounting width175 mm
Mounting height120 mm
Max. installation depth76 mm
Width210 mm
Height155 mm
Depth92 mm
Weight0,418 kg
In accordance withIEC 60670-22
Degree of protection against mechanical loadIK09 (10 Joule)
Resistance to occasional cleaning proceduresmax 100 bar, water temperature: max 80 °C, distance ≥ 0.15 m
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“without terminals box walls without knockouts wall surface can be drilled individually for cable entry max. M40 with two cable entries M 32 from the rear side "weatherproof" resistant to weather…”

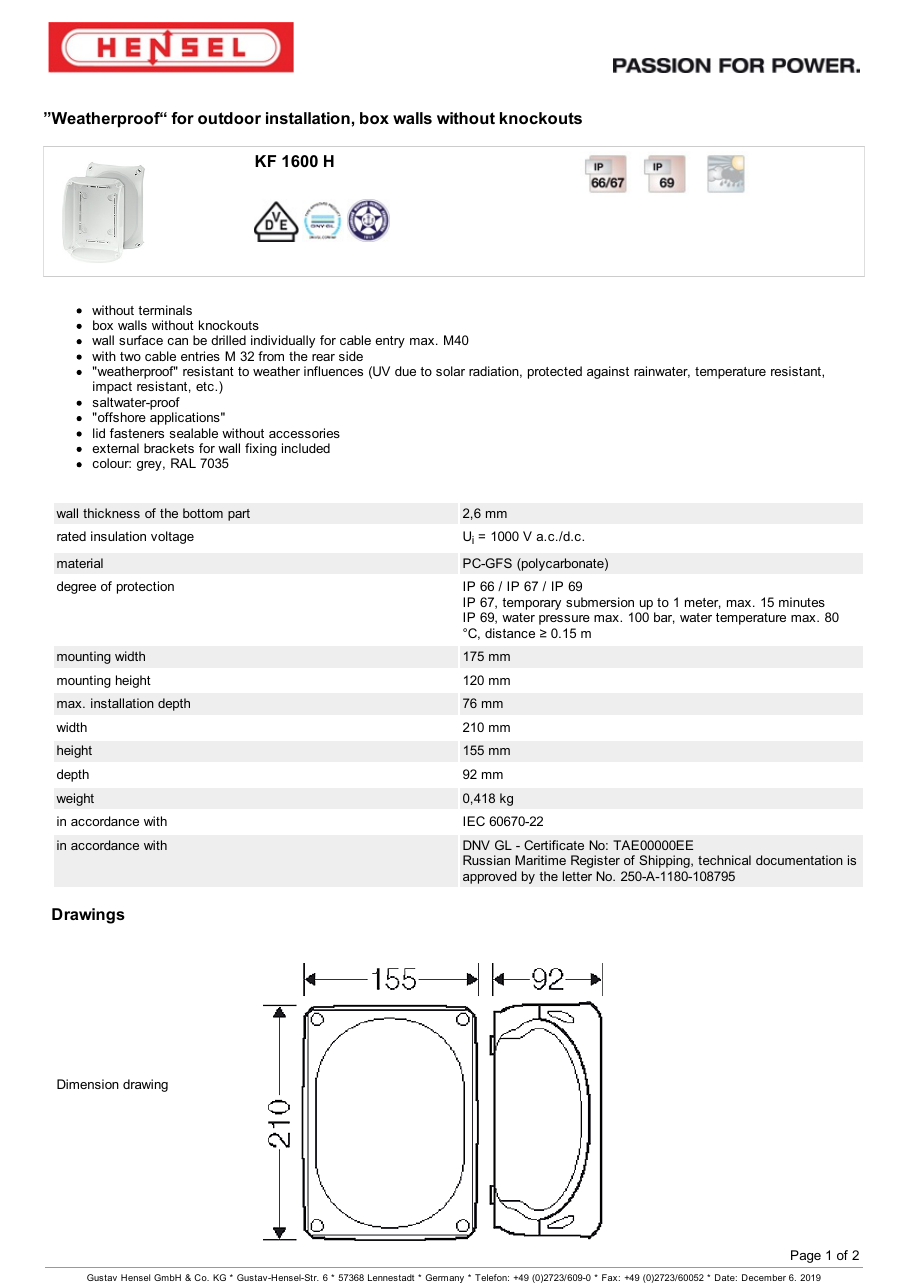

Gustav Hensel KF 1600 H – Photo (88d82b892b6e_S1-2 S. 1)
Photo · 88d82b892b6e_S1-2 · S. 1

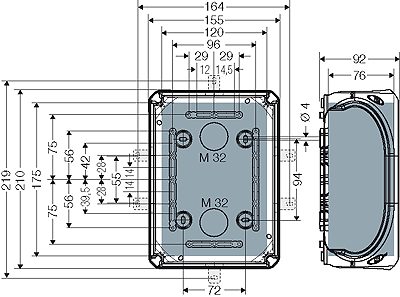

Gustav Hensel KF 1600 H – Photo (88d82b892b6e_S1-2 S. 2)
Photo · 88d82b892b6e_S1-2 · S. 2

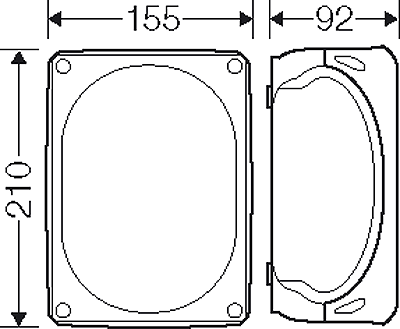

Gustav Hensel KF 1600 H – Drawing (88d82b892b6e_S1-2 S. 1)
Drawing · 88d82b892b6e_S1-2 · S. 1

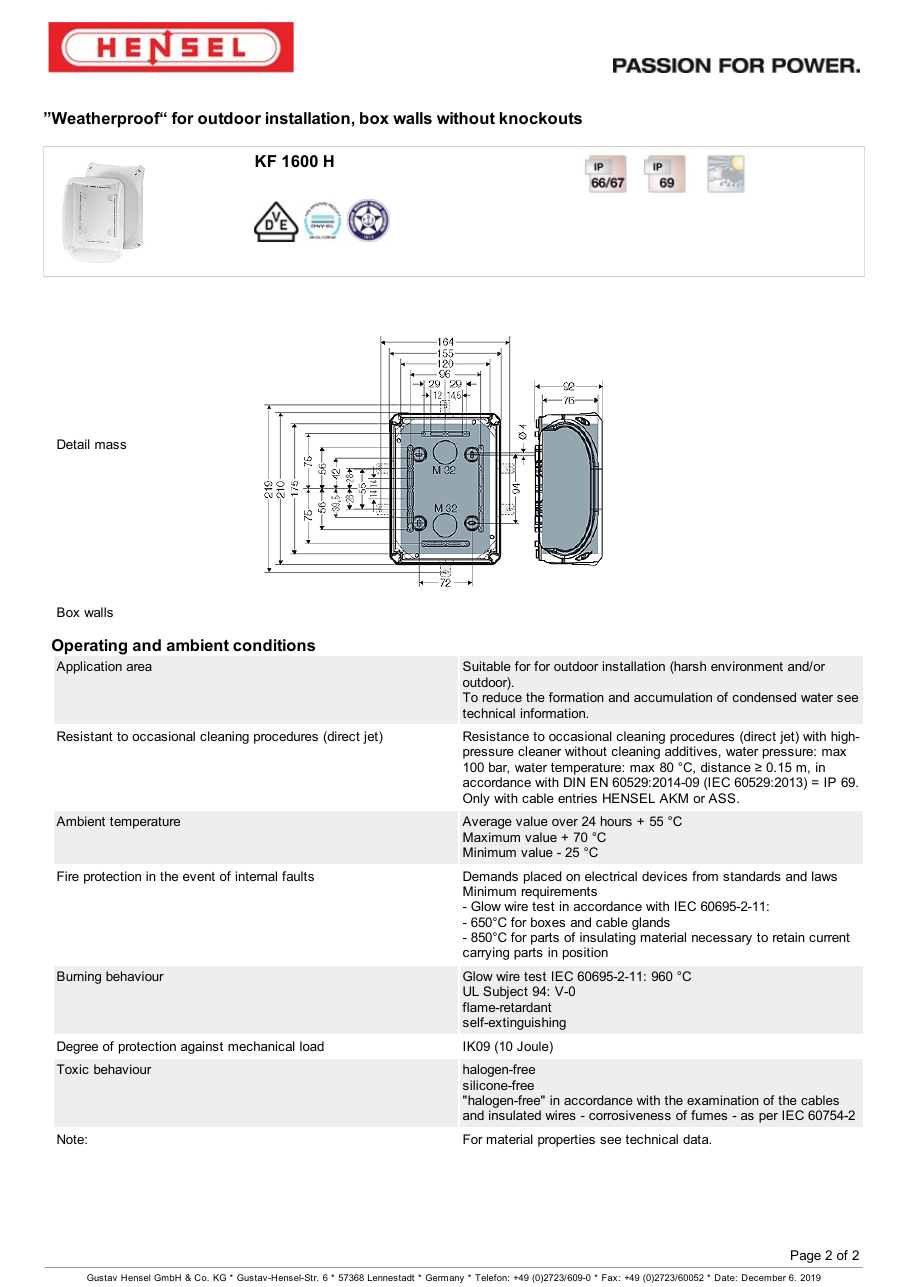

Gustav Hensel KF 1600 H – Drawing (88d82b892b6e_S1-2 S. 2)
Drawing · 88d82b892b6e_S1-2 · S. 2
Source: Gustav Hensel KF 1600 H datasheet, p. 1
