Library› Navigation› Navigation & Bridge Equipment› CCTV / Camera System› FLIR / Teledyne M232
FLIR / Teledyne

M232

CCTV / Camera System · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Thermal resolution320 x 240
Pan and tilt capability360° pan and +/-90° tilt
continuous E-Zoom4x
Field of View24° × 18°
Video Refresh Rate9 Hz
Focal Length19mm
FocusFixed 12ft (3.6m) to infinity
Detector Type320 × 240 VOx Microbolometer
Power Requirements12 or 24 VDC
Power Consumption15 W (typical) 18 W (max)
Operating Temperature Range-13°F to +131°F (-25°C to +55°C)
Storage Temperature Range-22°F to +158°F (-30°C to +70°C)
Shock15 g vertical, 9 g horizontal
VibrationIEC 60945; MIL-STD-810E
Lightning ProtectionNear Strike at 2kV
Salt MistIEC60945
Digital Zoom4x Continuous
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The M232 marine thermal camera takes affordability and easy integration to a whole new level. Incorporating 320 x 240 thermal resolution, video over IP, and digital zoom, M232 is the smallest…”

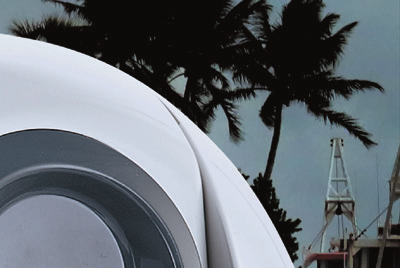

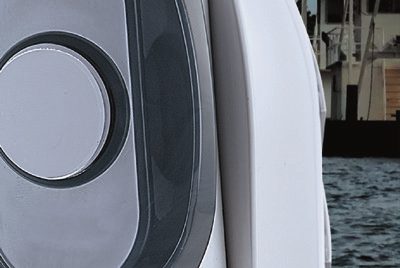

FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1
FLIR / Teledyne M232 – Photo (2de252e10437_S1-2 S. 1)
Photo · 2de252e10437_S1-2 · S. 1

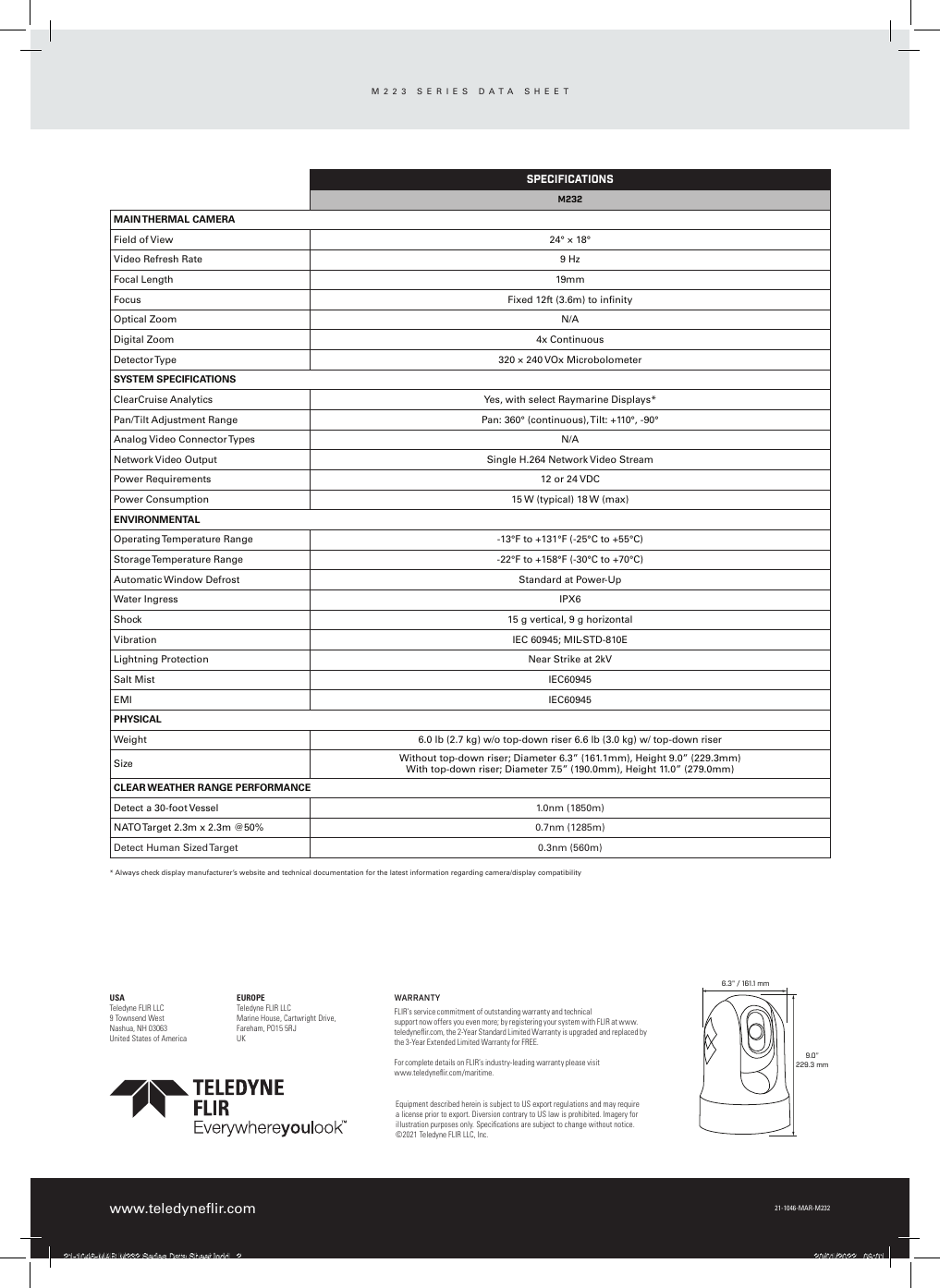

FLIR / Teledyne M232 – Drawing (2de252e10437_S1-2 S. 2)
Drawing · 2de252e10437_S1-2 · S. 2
Source: Teledyne M232 datasheet, p. 1
