Library› Navigation› Navigation & Bridge Equipment› CCTV / Camera System› Axis Communications Q1786-LE
Axis Communications

Q1786-LE

CCTV / Camera System · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Resolution4 MP / Quad HD 1440p
Optical Zoom32x
Temperature Range-40 °C to 60 °C (-40 °F to 140 °F)
OptimizedIR Range80 m (262 ft)
Lens4.3–137 mm, F1.4–4.0
Memory1024 MB RAM, 512 MB Flash
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“AXIS Q1786-LE Network Camera Robust, first-class 4 MP video with 32x optical zoom AXIS Q1786-LE Network Camera is an all-integrated camera delivering 4 megapixel resolution and 32x optical zoom for…”

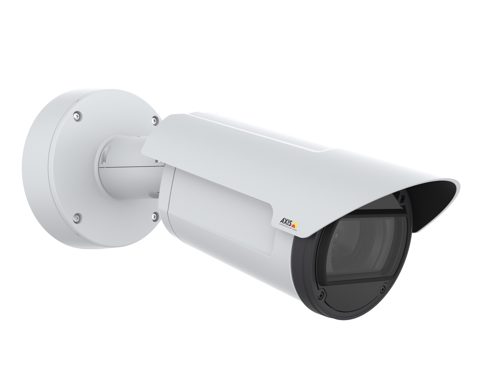

Axis Communications Q1786-LE – Photo (a257ca233a72_S1-2 S. 1)
Photo · a257ca233a72_S1-2 · S. 1

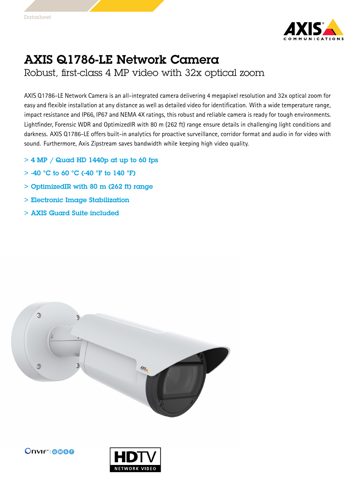

Axis Communications Q1786-LE – Drawing (a257ca233a72_S1-2 S. 1)
Drawing · a257ca233a72_S1-2 · S. 1

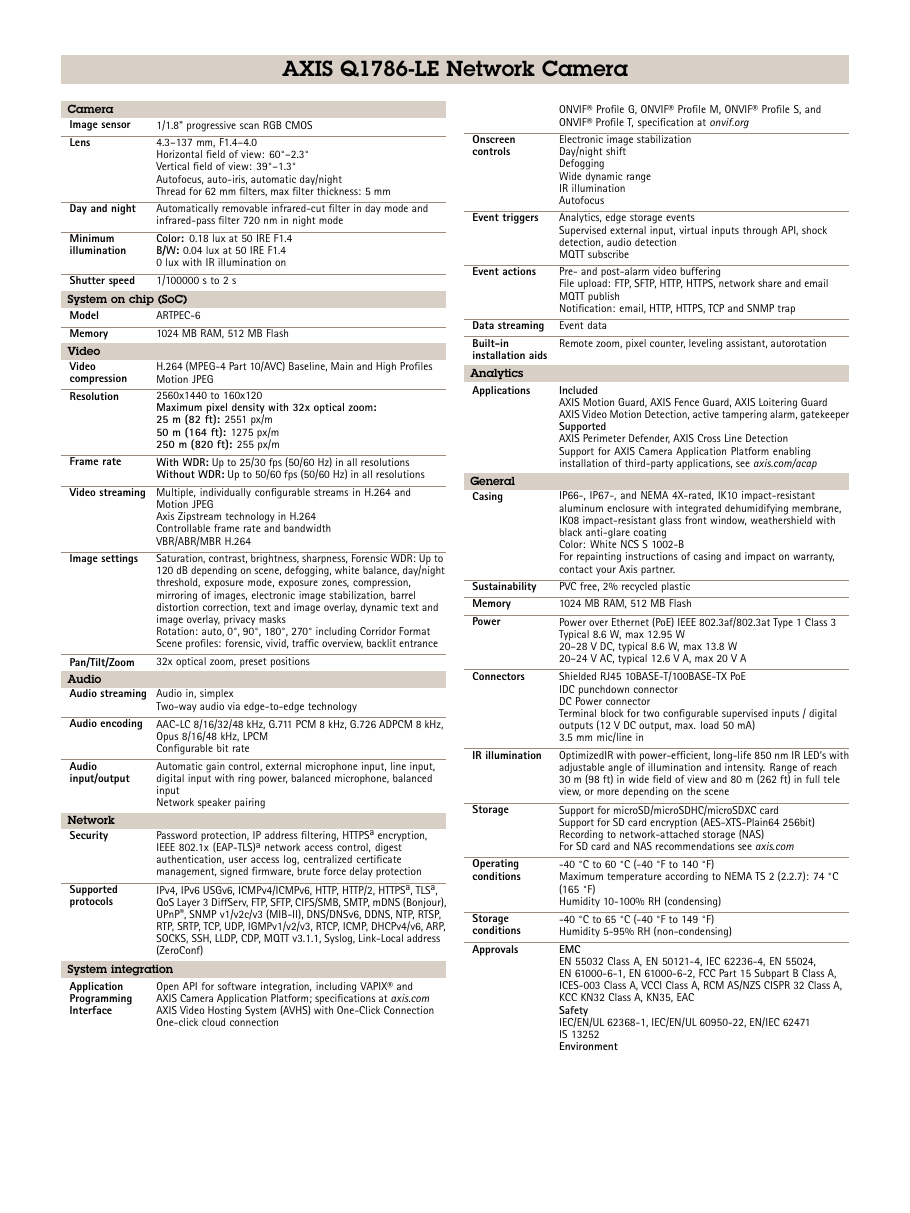

Axis Communications Q1786-LE – Drawing (a257ca233a72_S1-2 S. 2)
Drawing · a257ca233a72_S1-2 · S. 2
Source: Axis Communications Q1786-LE datasheet, p. 1
