Library› Electrical› Instrumentation & Gauges› Pressure Switch› Danfoss KPS 80
Danfoss

KPS 80

Pressure Switch · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Range Pe70 – 120 [°C]
Setting range70 – 120 [°C]
Mechanical diff.4.5 – 18 [°C]
Max. sensor temp.220 [°C]
Cap. tube length200 [m]
Regulation range70 – 120 [°C]
Correction factor a for thermostats with rigid sensor1.7
Correction factor a for thermostats with 2 and 5 m cap. tube2.4
Correction factor a for thermostats with 8 m cap. tube3.1
Mech. diff.4.5 – 18 °C
Max. temp.220 °C
[°c]70 – 120
Setting range Pe70 – 120 [°C]
Adjustable temperature range4.5 – 18 [°C]
Temperature setting pocket length220 [mm]
range Pe70 – 120
Setting [°C]4.5 – 18
Max. temp. [°C]220
Cap. length [mm]75, 110, 160
TypeKPS 80
Mech. temp. range70 – 120 [°C]
Max. diff. temp.4.5 – 18 [°C]
Cap. temp. setting220 [°C]
Pocket length75 [mm]
Tube length160 [m]
Code no.060L313866
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A device that monitors cooling water temperature and triggers an alarm if the temperature exceeds a set point.

Applications

  • cooling water temperature monitoring
  • alarm function

Features

  • adjustable differential spindle setting
  • scale correction calculation

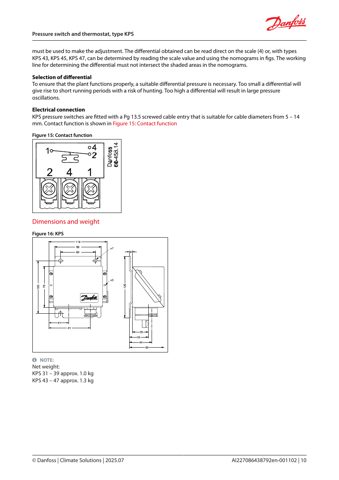

Danfoss KPS 80 – Drawing (68e34b73bb63_S3-15 S. 5)
Drawing · 68e34b73bb63_S3-15 · S. 5

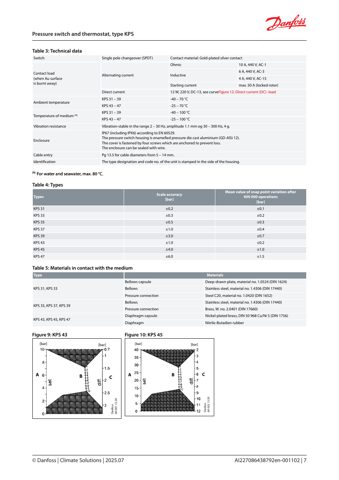

Danfoss KPS 80 – Drawing (68e34b73bb63_S3-15 S. 7)
Drawing · 68e34b73bb63_S3-15 · S. 7

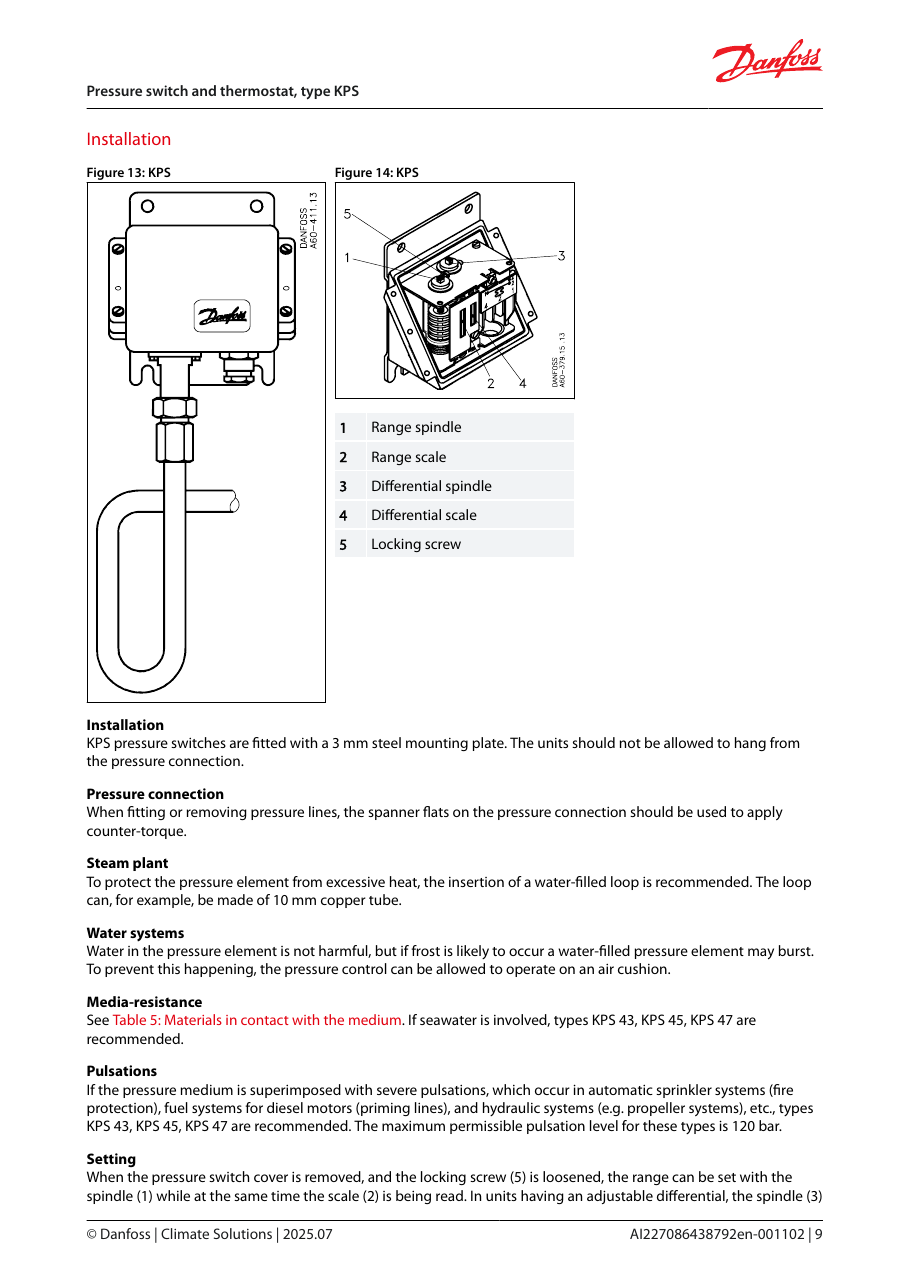

Danfoss KPS 80 – Drawing (68e34b73bb63_S3-15 S. 8)
Drawing · 68e34b73bb63_S3-15 · S. 8
Danfoss KPS 80 – Page preview (68e34b73bb63_S3-15 S. 3)
Page preview · 68e34b73bb63_S3-15 · S. 3

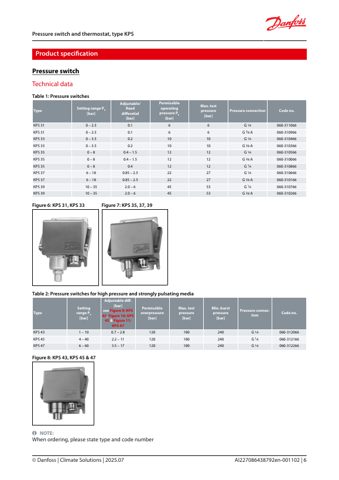

Danfoss KPS 80 – Page preview (68e34b73bb63_S3-15 S. 4)
Page preview · 68e34b73bb63_S3-15 · S. 4

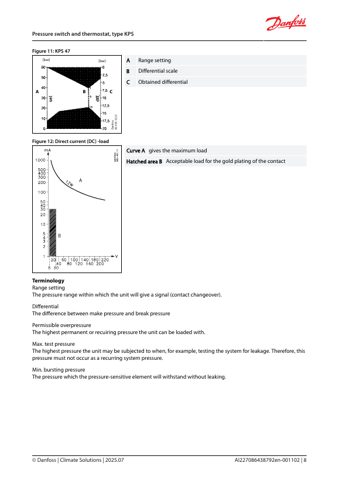

Danfoss KPS 80 – Page preview (68e34b73bb63_S3-15 S. 6)
Page preview · 68e34b73bb63_S3-15 · S. 6

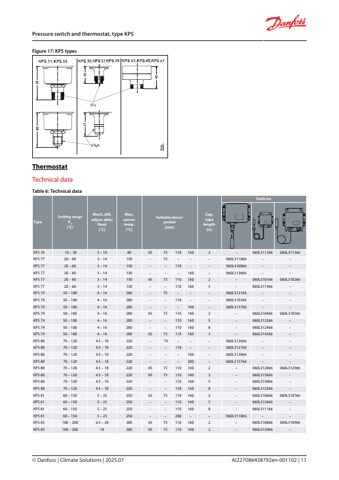

Danfoss KPS 80 – Page preview (68e34b73bb63_S3-15 S. 9)
Page preview · 68e34b73bb63_S3-15 · S. 9
Source: Danfoss KPS 80 datasheet, p. 18
