Zenitel

ETB-100

PA/GA System · Internal Communication

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

External all callETB-100A
Cable gland6 x PG-16
Dimension (mm)240W x 144H x 130D (with glands)
Cut out dimension224 x 132 mm
WeightApprox. 1.8 kg
Power supply24 - 32 VDC
Max. current consumption2A
Output power30 W RMS
Frequency range200 Hz - 8 KHz (-3 dB)
Temperature operating-15 to +55 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Master station with 10 lines selection and all call facility.

Applications

  • Central station
  • Panel mounted

Features

  • 100V line output
  • Monitor-speaker / microphone
  • Connector for gooseneck or handheld microphone
  • Dimable back light
  • Line buttons with on light
  • Buzzer indication of incoming calls
  • Step volume control
  • Call signal

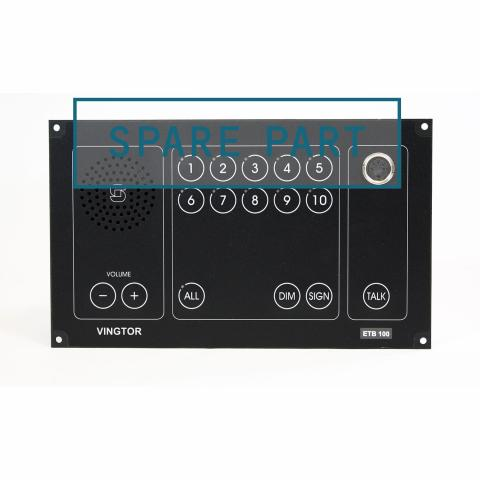

Zenitel ETB-100 – Photo (7c11805f3cae_S1-3 S. 1)
Photo · 7c11805f3cae_S1-3 · S. 1
Zenitel ETB-100 – Photo (7c11805f3cae_S1-3 S. 2)
Photo · 7c11805f3cae_S1-3 · S. 2

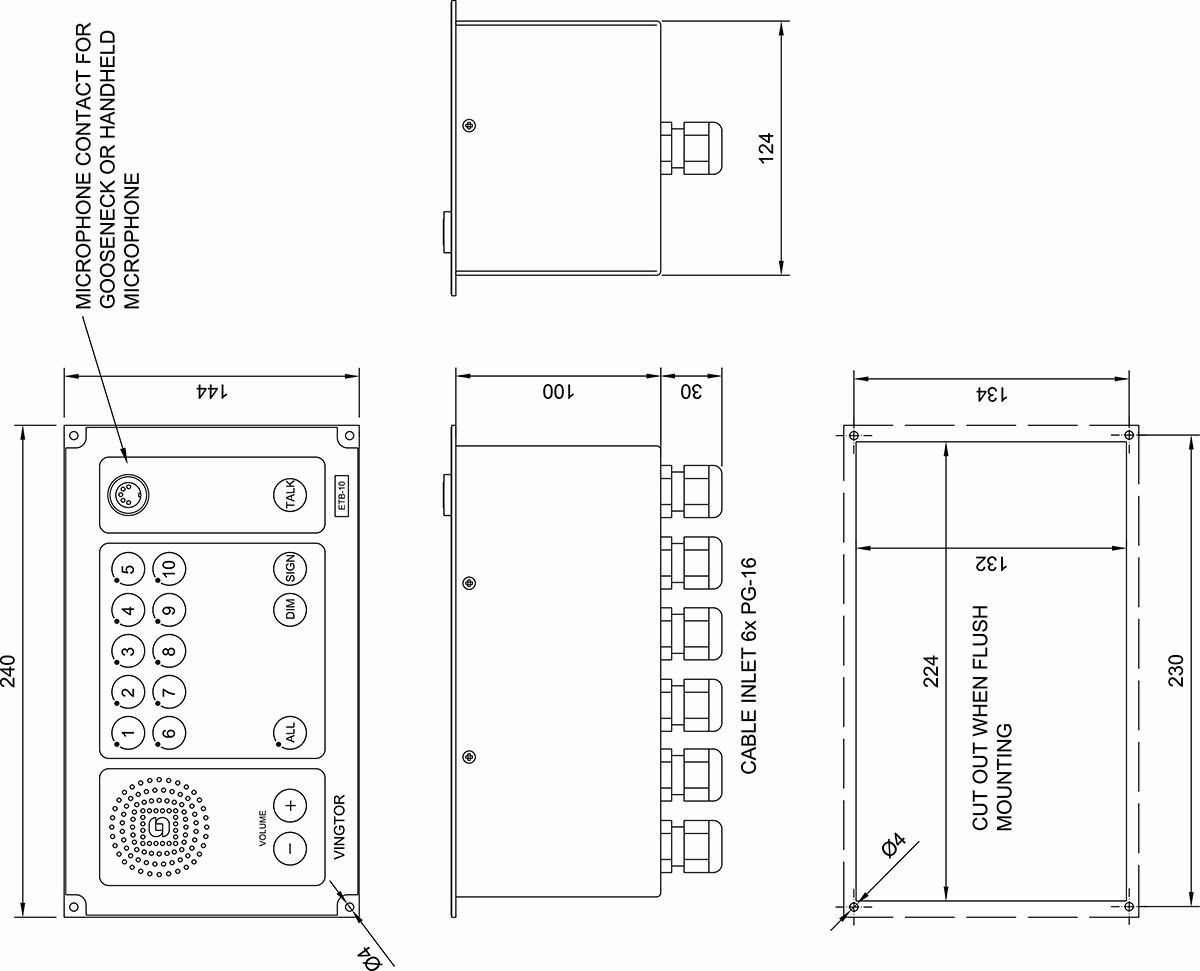

Zenitel ETB-100 – Drawing (7c11805f3cae_S1-3 S. 1)
Drawing · 7c11805f3cae_S1-3 · S. 1

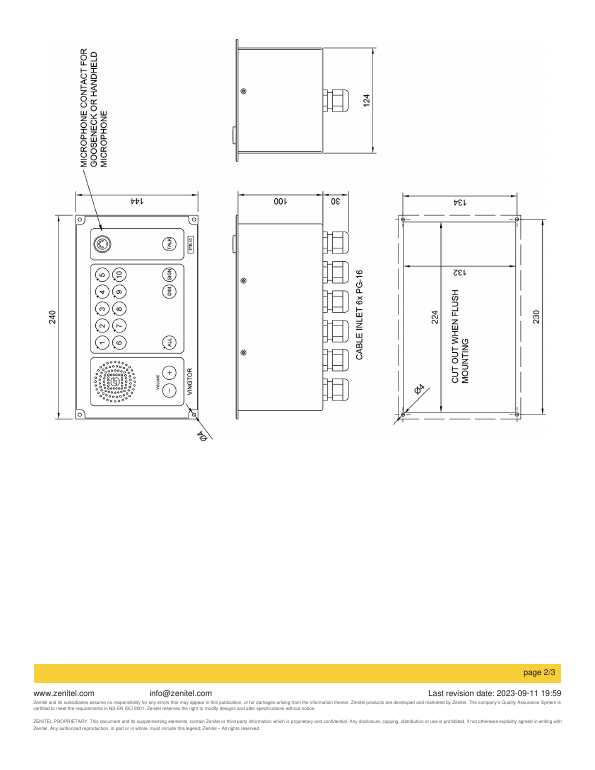

Zenitel ETB-100 – Drawing (7c11805f3cae_S1-3 S. 3)
Drawing · 7c11805f3cae_S1-3 · S. 3

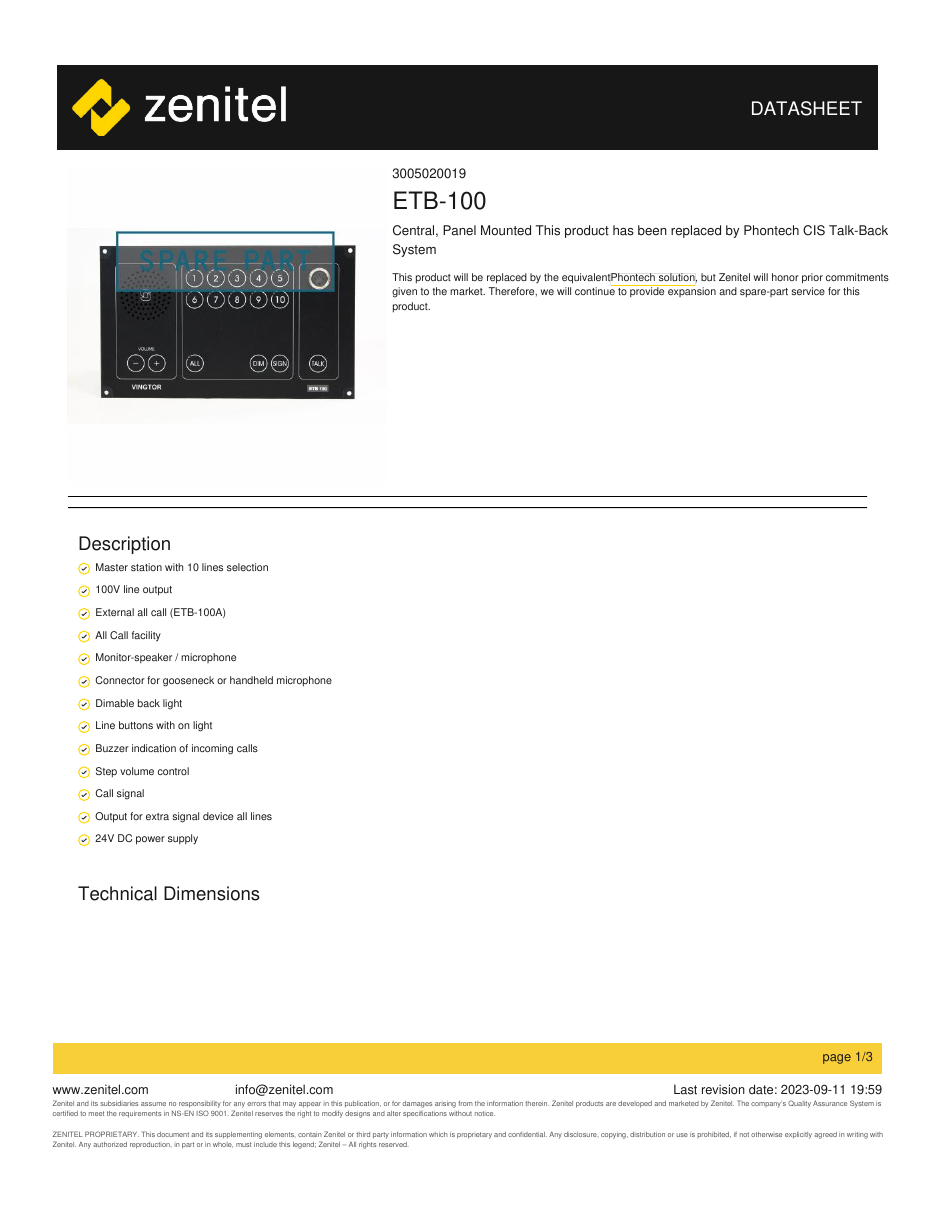

Zenitel ETB-100 – Page preview (7c11805f3cae_S1-3 S. 2)
Page preview · 7c11805f3cae_S1-3 · S. 2
Source: zenitel ETB-100 datasheet, p. 1
