Library› Navigation› Navigation & Bridge Equipment› Bridge Integration System (IBS/INS)› Raytheon Anschuetz SYNAPSIS
Raytheon Anschuetz

SYNAPSIS

Bridge Integration System (IBS/INS) · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Highly sensitive radar system for efficient collision avoidance and chart display.

Applications

  • collision avoidance
  • watch keeping
  • navigation

Features

  • extremely sensitive radar
  • clear structured user interface
  • PC-technology based processor
  • compact design
  • easy to service
  • software-updating quick and simple by USB-stick
  • high resolution TFT colour display
  • proven use for surveillance and offshore systems

Standards

  • IMO Res. A.823(19)
  • A.820 (19)-High Speed Craft Code
  • MSC.192(79) from July, 1st 2008 onwards

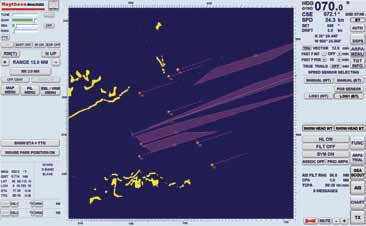

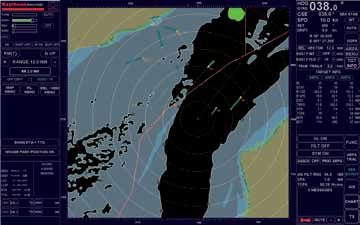

Raytheon Anschuetz SYNAPSIS – Photo (2888d2d3d953_S2-8 S. 2)
Photo · 2888d2d3d953_S2-8 · S. 2

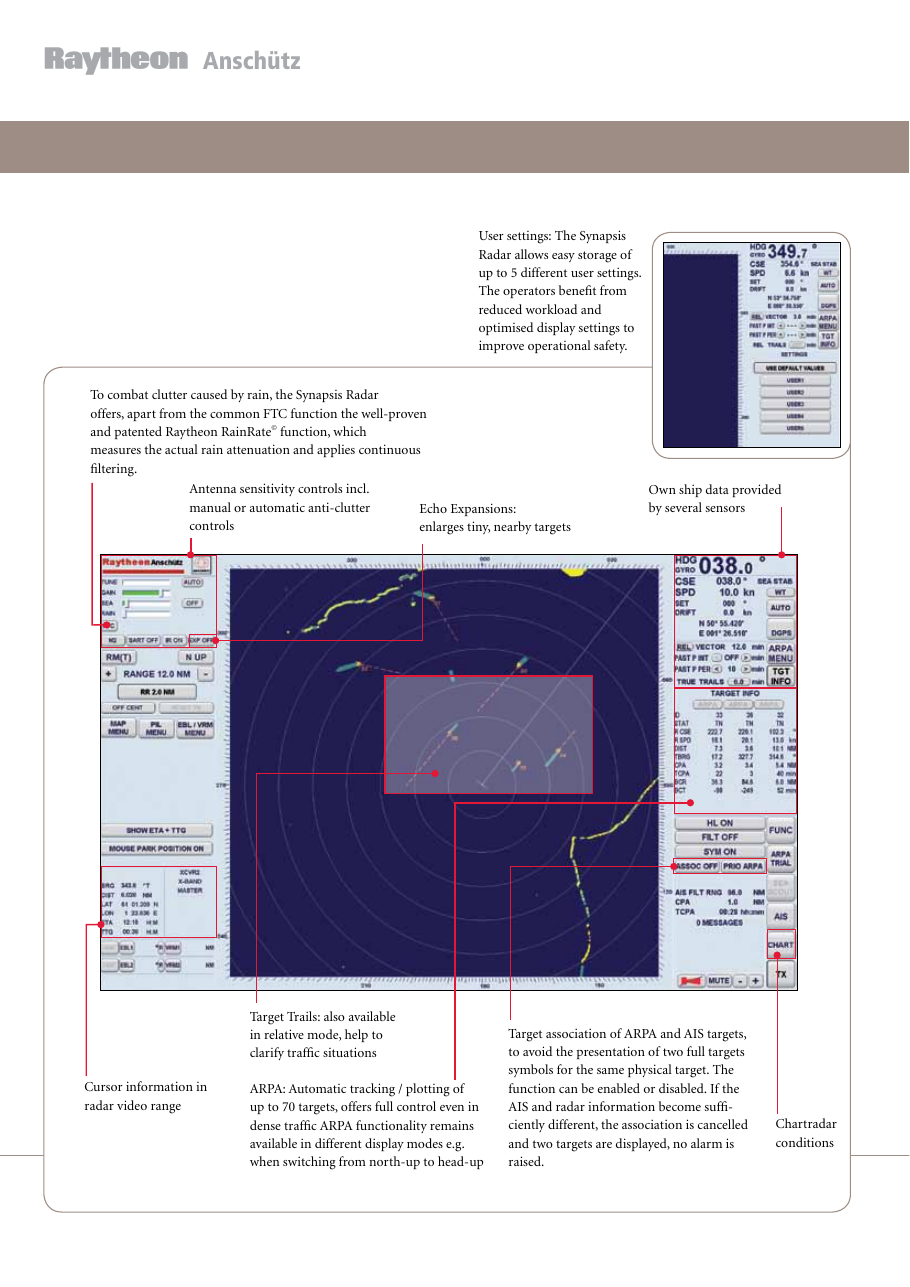

Raytheon Anschuetz SYNAPSIS – Photo (2888d2d3d953_S2-8 S. 3)
Photo · 2888d2d3d953_S2-8 · S. 3

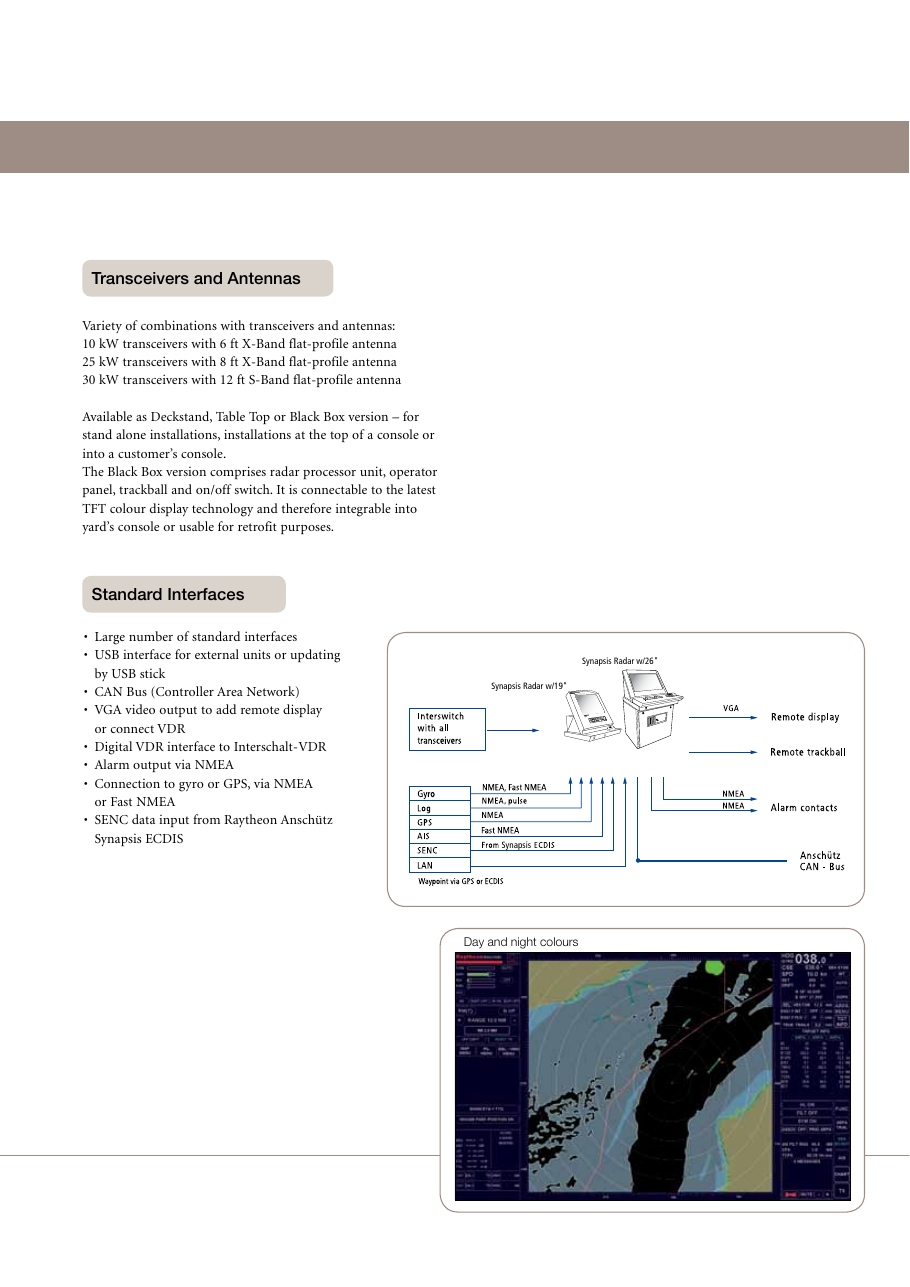

Raytheon Anschuetz SYNAPSIS – Photo (2888d2d3d953_S2-8 S. 4)
Photo · 2888d2d3d953_S2-8 · S. 4
Raytheon Anschuetz SYNAPSIS – Photo (2888d2d3d953_S2-8 S. 5)
Photo · 2888d2d3d953_S2-8 · S. 5
Raytheon Anschuetz SYNAPSIS – Photo (2888d2d3d953_S2-8 S. 5)
Photo · 2888d2d3d953_S2-8 · S. 5
Raytheon Anschuetz SYNAPSIS – Drawing (2888d2d3d953_S2-8 S. 2)
Drawing · 2888d2d3d953_S2-8 · S. 2
Raytheon Anschuetz SYNAPSIS – Drawing (2888d2d3d953_S2-8 S. 3)
Drawing · 2888d2d3d953_S2-8 · S. 3

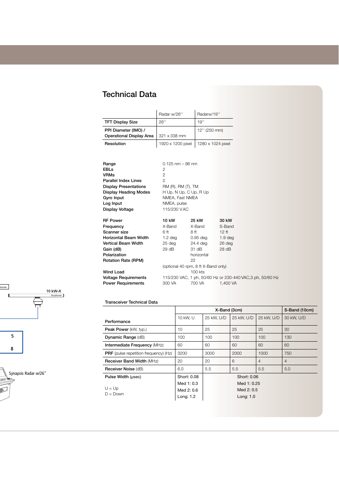

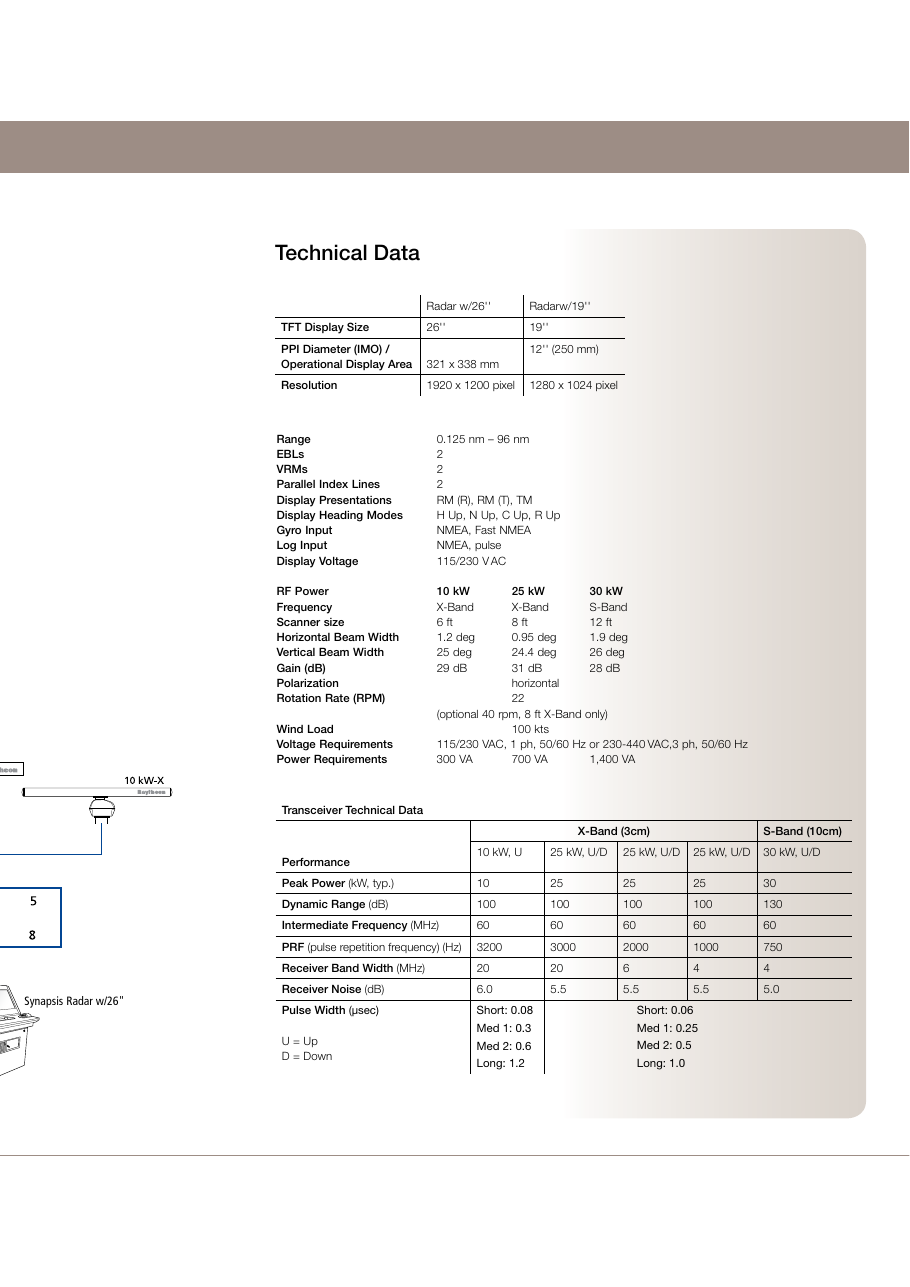

Raytheon Anschuetz SYNAPSIS – Drawing (2888d2d3d953_S2-8 S. 6)
Drawing · 2888d2d3d953_S2-8 · S. 6
Source: Raytheon Anschuetz SYNAPSIS datasheet, p. 2
