Mecc Alte

GC800-HMI

HMI Panel & Industrial Computer · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: HMI Panel & Industrial Computer — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal power supply (Vn)12 VDC or 24 VDC
Power supply range (Vn variation)From 7 to 32 VDC
Maximum time of interruption of the supply voltage without resetting the device0 VDC for minimum 20ms
Starting minimum voltageVbat ≥ 5 VDC
Input capacitanceAbout 1440 μF
Measurement rangeFrom 0 to 40 VDC
Sampling rate10 kHz
Measurement resolution12 bits
Measurement accuracy± 0,5% of full-scale reading
Sound OutputTyp. 60 dB*.
Rate frequency2730 Hz.
Operating temperatureFrom -20°C to +70°C.
Storage temperatureFrom -30°C to +80°C.
Relative humidity5% to 95% with no condensation.
Operating altitudeUp to 2000 m (6561 ft.).

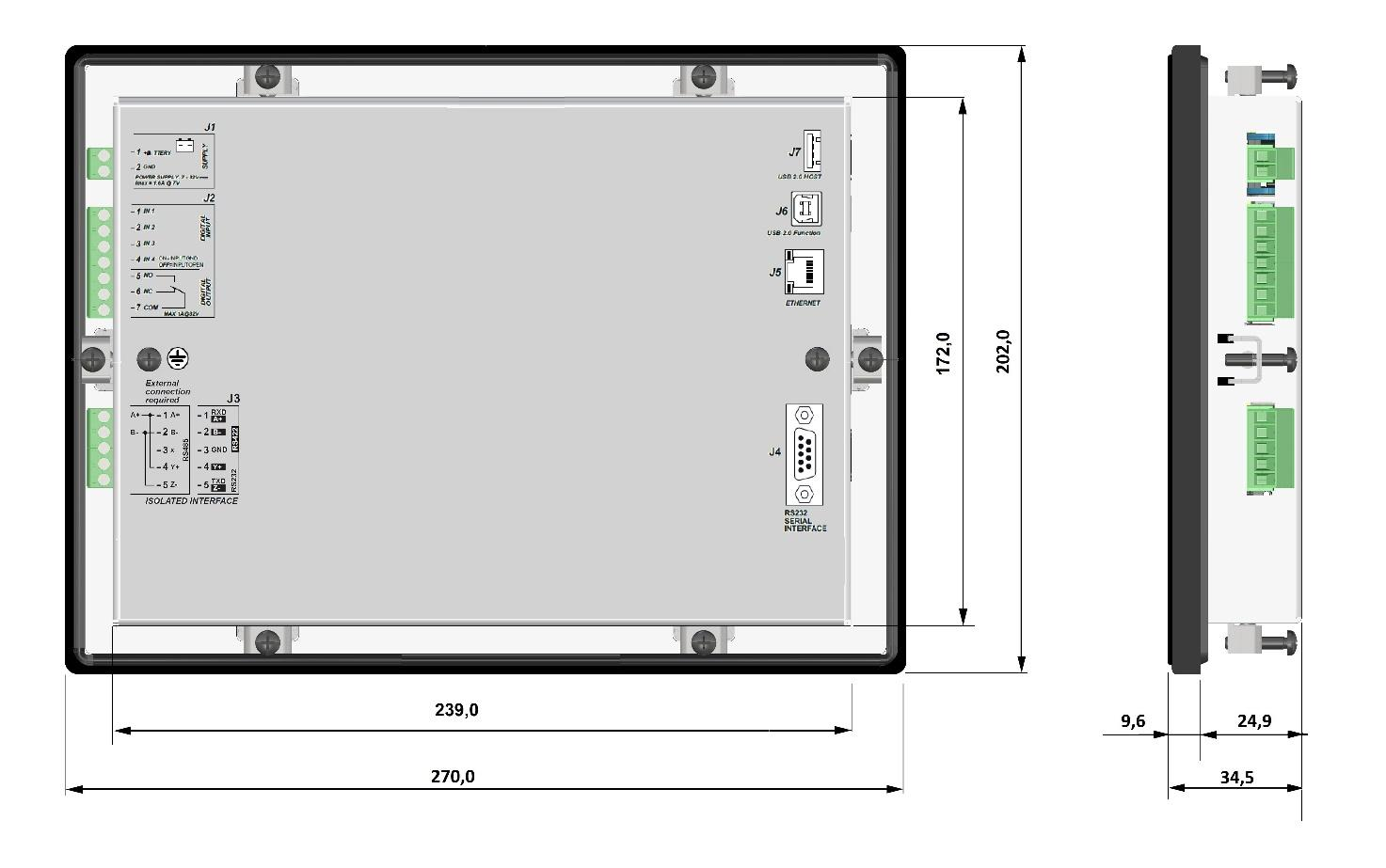

DimensionsLength: 270 mm.
Panel cutout241 mm x 174 mm.
Weight1400 g.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1.4 Safety requirements Please read this manual carefully before using the device. For the appropriate use of this manual, it is required knowledge of the use and of the installation of generator…”

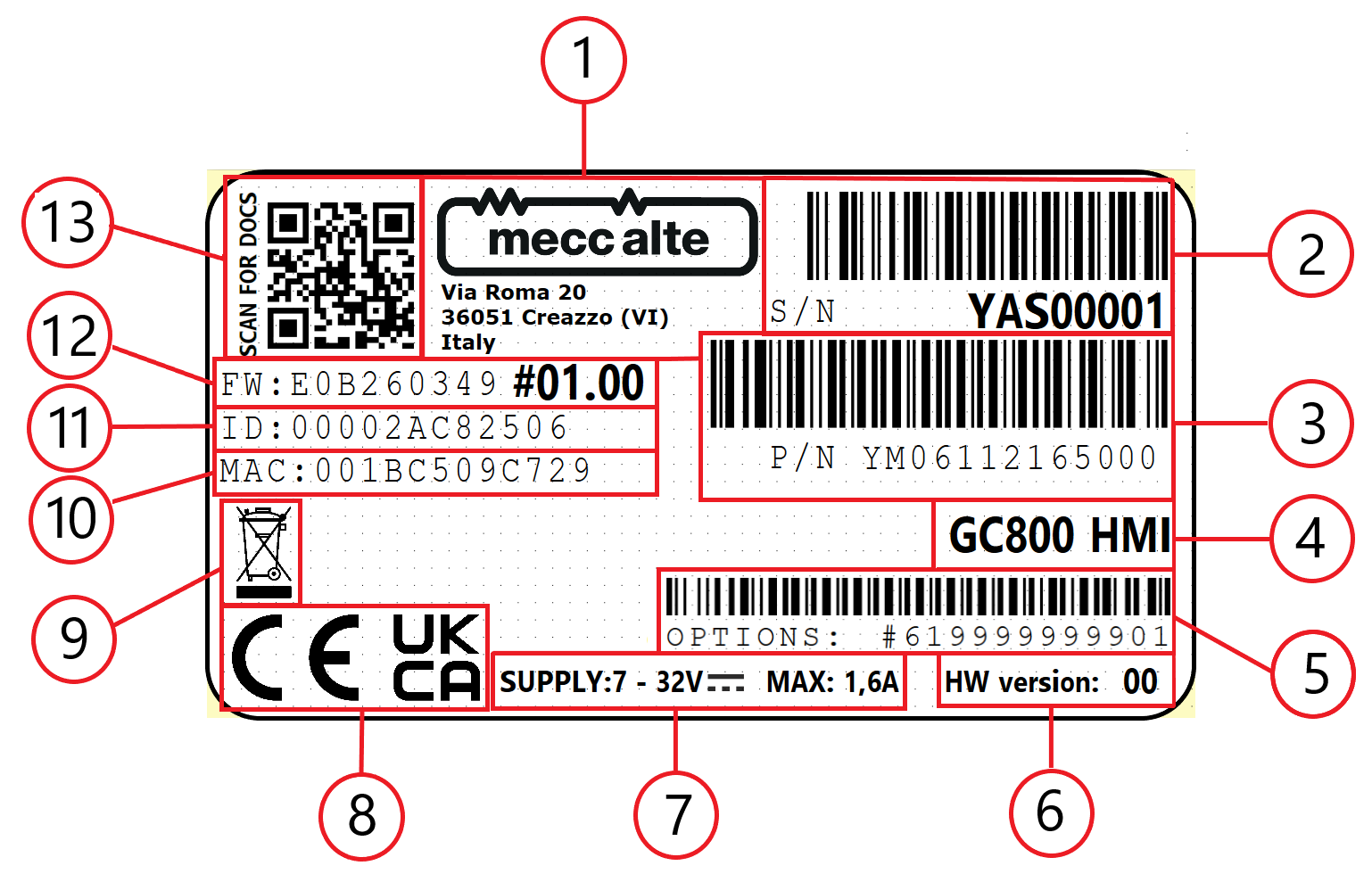

Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 7)
Photo · 5719cacfd133_S7-63 · S. 7

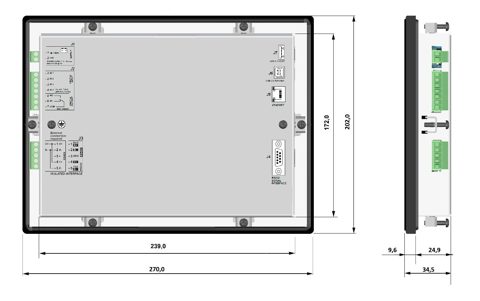

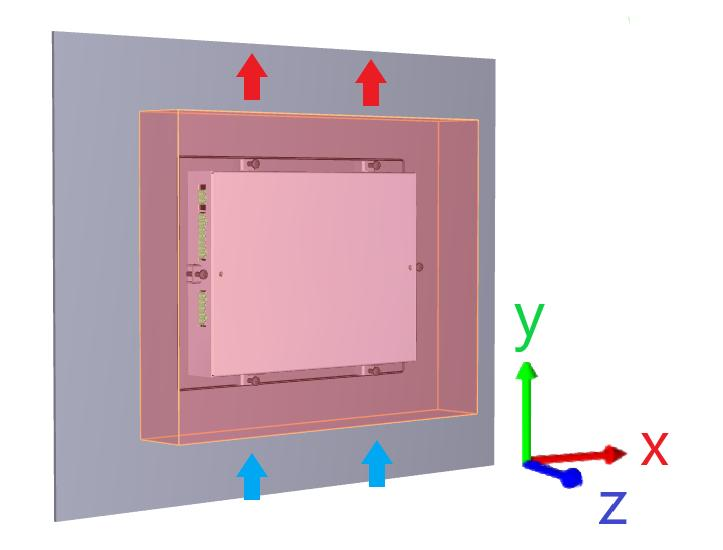

Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 14)
Photo · 5719cacfd133_S7-63 · S. 14

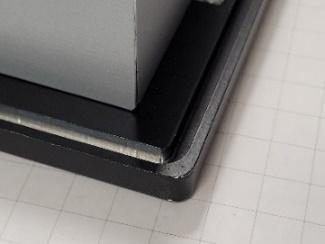

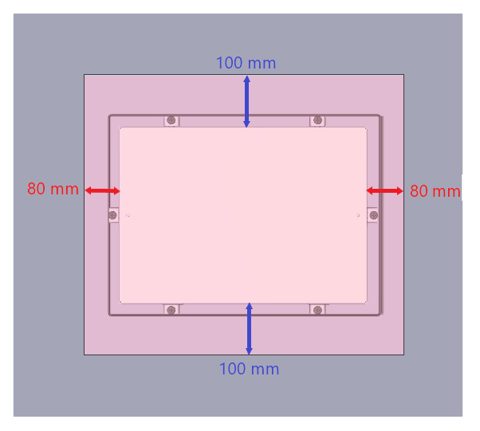

Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Mecc Alte GC800-HMI – Photo (5719cacfd133_S7-63 S. 15)
Photo · 5719cacfd133_S7-63 · S. 15
Source: Mecc Alte GC800-HMI datasheet, p. 1
