Library› Navigation› Signaling & Visual› Searchlight› Francis Searchlights L300D Deck RF
Francis Searchlights

L300D Deck RF

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pan rotation450°
Up to35,537 Lumen
SealingIP56 Searchlight, PSU IP66
Searchlight weight Deck17kgs
Deck Ped21kg
Cabin20kg
Cabin Ped24kg
Lamp life20,000 hrs
Range3047m
Luminous Flux35,537
Div4-10°
Watts234w
Supply115/230v
Weight25 kg
PSU weight4kgs
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The L300D Deck RF is a high-power LED searchlight designed for marine applications, offering efficient and environmentally friendly lighting with a long lifespan.

Applications

  • marine navigation

Features

  • robust construction
  • thermal management

Options

  • manual focus control
  • remote focus control

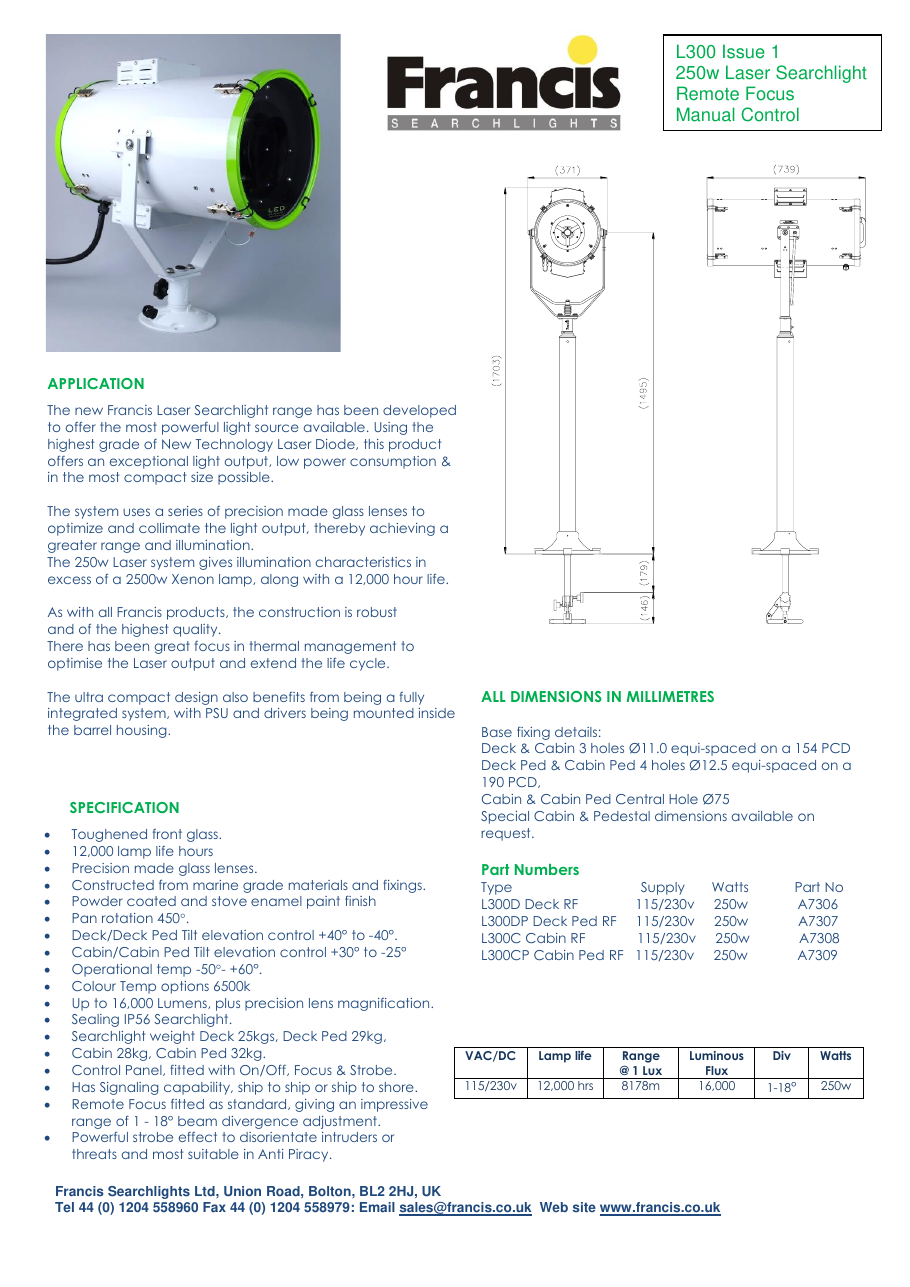

Francis Searchlights L300D Deck RF – Drawing (c97ba47792b3_S1-1 S. 1)
Drawing · c97ba47792b3_S1-1 · S. 1
Francis Searchlights L300D Deck RF – Drawing (54f49d654dc3_S1-1 S. 1)
Drawing · 54f49d654dc3_S1-1 · S. 1

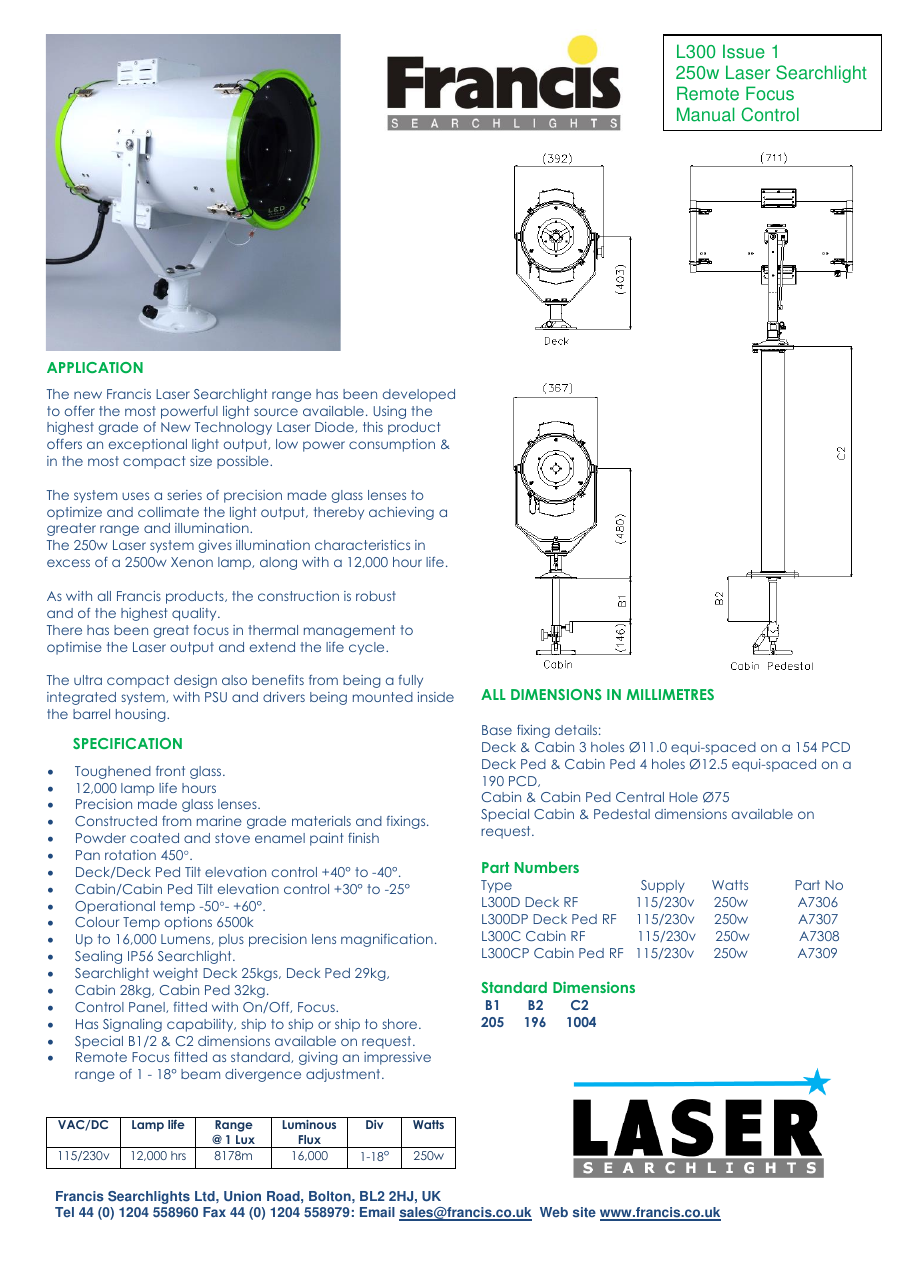

Francis Searchlights L300D Deck RF – Drawing (0cfd895a96cb_S1-1 S. 1)
Drawing · 0cfd895a96cb_S1-1 · S. 1
Source: francissearchlights L300D Deck RF datasheet, p. 1
