Library› Engine Room› Pumps› Pump› Tsurumi Pump KTZ611-61-4"
Tsurumi Pump

KTZ611-61-4"

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“C.W.L. : Continuous running Water Level DIMENSIONS:US CS (Inch) Model HP NOM. SIZE A KTZ411-61 15 4" 14 11/16 KTZ611-61(4") 15 4" 14 11/16 KTZ611-61 15 *6" 14 11/16”

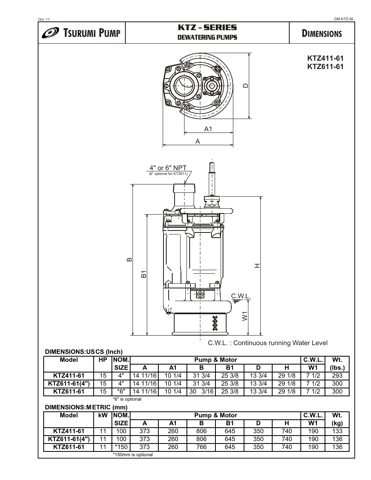

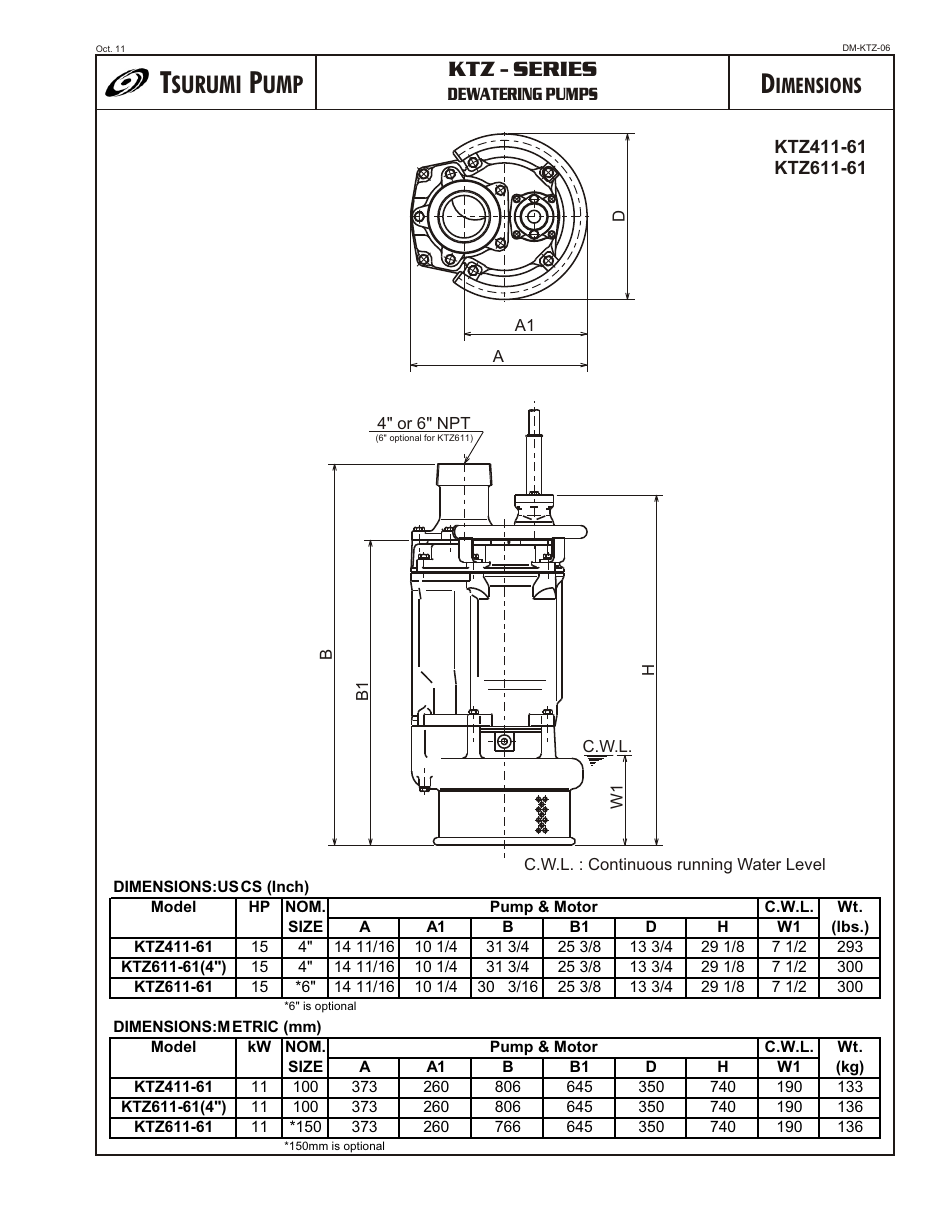

Tsurumi Pump KTZ611-61-4" – Drawing (0178fed6f3cf_S1-1 S. 1)
Drawing · 0178fed6f3cf_S1-1 · S. 1
Source: Dim 06 KTZ411-61 & KTZ611-61, p. 1
