Library› Electrical› Instrumentation & Gauges› Signal Converter / Isolator› Mecc Alte EAAM024505EN
Mecc Alte

EAAM024505EN

Signal Converter / Isolator · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Resistance300ohm
Dissipation Power0,22W
Input Voltage12 or 24VDC
Maximum Current Absorption80mA
INPUT 0-5V0-1023 10-bit
INPUT 0-10V0-1023 10-bit
Pwm0-8191 steps
Max0-8191 steps
Min0-8191 steps
Reset0-8191 steps
Ramp0-32 steps
Minimum value of 0-5V input30026 points per voltage isolator
Maximum value of 0-5V input30027 points per voltage isolator
Minimum value of 0-10V input30028 points per voltage isolator
Maximum value of 0-10V input30029 points per voltage isolator
0-5V INPUT - value calculated30031 ohms
0-5V INPUT - Pressure calculated30033 kPa
0-5V INPUT - Value calculated30035 Volts
Pressure in kPa30037 kPa
0-10V INPUT - value calculated30041 ohms
0-10V INPUT - Temperature calculated30043 tenths of a degree
0-10V INPUT - Value calculated30045 Volts
Current Loop Output: Current PWM value30051 value
Current Loop Output: Minimum PWM value30052 value
Current Loop Output: Maximum PWM value30053 value
Current Loop Output: PWM offset value and Reset value30054 value
Current Loop Output: PWM Ramp value30055 value
CANBUS: Presence of canbus interface30201 interface
CANBUS: State30202 state
RPM value received via CAN BUS(RPM x 8. E.g. 1200 / 8 = 1500 RPM)
RPM GAP received via CAN BUSIf 1500 rpm: GAP 120 x 8 = 960
PWM value(0-8191)
MAX - Max. PWM value(0-8191)
MIN - Min. PWM value(0-8191)
RESET - PWM Reset value(0-8191)
RAMP - PWM Ramp value(0-8191)
Select an adjustment source0 = from trimmer, 1 = from Modbus, 2 = Modbus + trimmer for fine tuning (+/- 12.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A resistor with specific resistance and power dissipation values for use in electrical circuits.

Applications

  • Voltage regulation

Features

  • Specific resistance value
  • Power dissipation capability
  • Input voltage range
  • Maximum current absorption

Options

  • RS485 serial port
  • 120R termination resistor
  • remote control mode
Source: Mecc Alte EAAM024505EN datasheet, p. 6

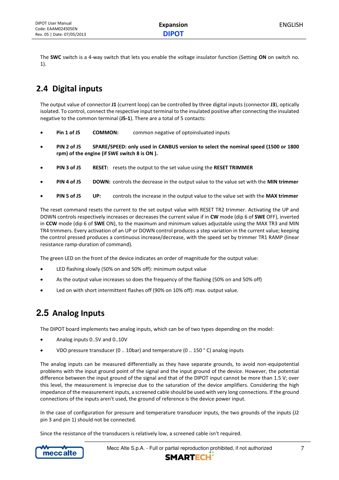

Mecc Alte EAAM024505EN – Drawing (629f43499cb8_S4-16 S. 4)
Drawing · 629f43499cb8_S4-16 · S. 4
Mecc Alte EAAM024505EN – Drawing (629f43499cb8_S4-16 S. 5)
Drawing · 629f43499cb8_S4-16 · S. 5

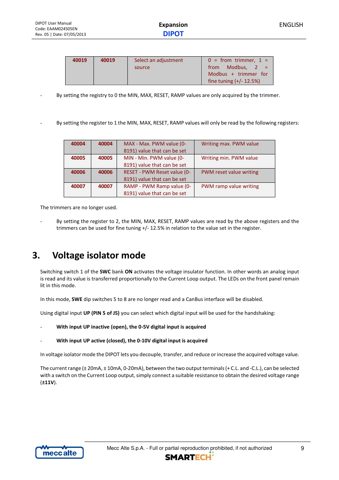

Mecc Alte EAAM024505EN – Drawing (629f43499cb8_S4-16 S. 6)
Drawing · 629f43499cb8_S4-16 · S. 6

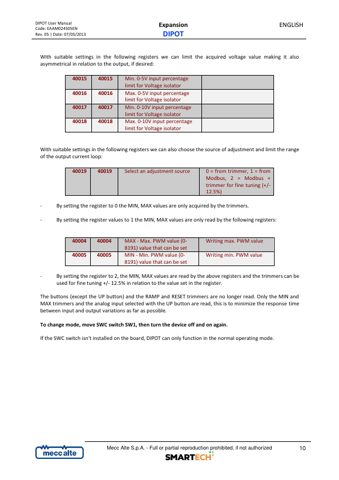

Mecc Alte EAAM024505EN – Page preview (629f43499cb8_S4-16 S. 7)
Page preview · 629f43499cb8_S4-16 · S. 7

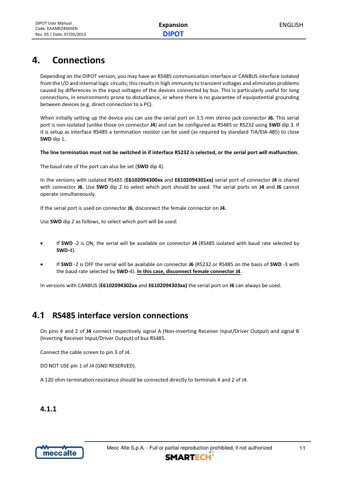

Mecc Alte EAAM024505EN – Page preview (629f43499cb8_S4-16 S. 8)
Page preview · 629f43499cb8_S4-16 · S. 8
Mecc Alte EAAM024505EN – Page preview (629f43499cb8_S4-16 S. 9)
Page preview · 629f43499cb8_S4-16 · S. 9
Mecc Alte EAAM024505EN – Page preview (629f43499cb8_S4-16 S. 10)
Page preview · 629f43499cb8_S4-16 · S. 10
Source: Mecc Alte EAAM024505EN datasheet, p. 5
