Library› Engine Room› Shaft Line & Propulsion› Flexible Coupling› SPF / Anvil C-1
SPF / Anvil

C-1

Flexible Coupling · Shaft Line & Propulsion

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Max. Nominal O.D.10 In./mm
Working Pressures300 Lbs./Kg
Range of Pipe End Separation0-3/32 In./mm
Deflection From CL Per Coupling0˚-80’

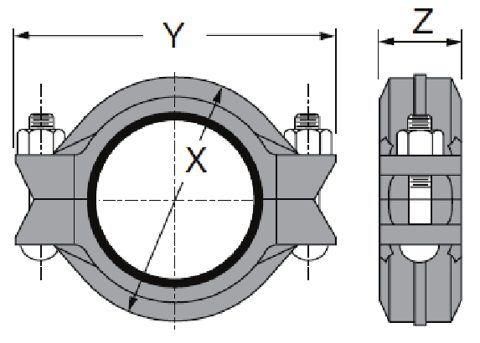

Coupling Dimensions X13 1/2 In./mm
Coupling Dimensions Y16 1/4 In./mm
Coupling Dimensions Z70 Lbs./Kg
Coupling Bolts Qty.2
Coupling Bolts Size7/8 x 5 1/2 In./mm
Specified Torque §180 - 220 Ft.-Lbs./N-m
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The C-1 is designed for a broad range of piping applications. It is a flexible style which provides allowance for controlled pipe movement caused by thermal changes, settling or seismic action, as…”

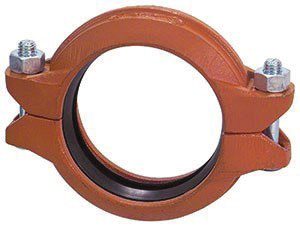

SPF / Anvil C-1 – Photo (6f6acd9291ba_S1-1 S. 1)
Photo · 6f6acd9291ba_S1-1 · S. 1
SPF / Anvil C-1 – Photo (6f6acd9291ba_S1-1 S. 1)
Photo · 6f6acd9291ba_S1-1 · S. 1

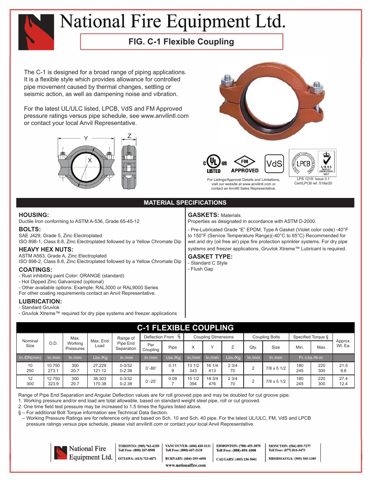

SPF / Anvil C-1 – Drawing (6f6acd9291ba_S1-1 S. 1)
Drawing · 6f6acd9291ba_S1-1 · S. 1
Source: Anvil C-1 datasheet, p. 1
