Library› Navigation› Radar & ECDIS› ECDIS› GEM Elettronica ECD-350
GEM Elettronica

ECD-350

ECDIS · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight7.8 Kg
Dimensions in mm408
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ECDIS Electronic Chart Display & Information System The top of class instrument aiding navigation management and safet y Models:”Source: GEM Elettronica ECD-350 datasheet, p. 1

Features

  • type approved by DNV
  • tested according to IMO, IHO, and IEC specifications
  • adopted by the Italian Navy and other navies

Standards

  • IMO
  • IHO
  • IEC

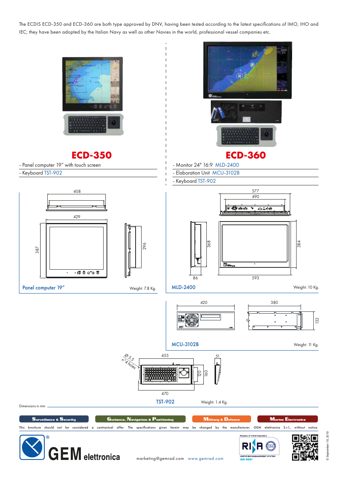

GEM Elettronica ECD-350 – Drawing (ead6f96bc4e5_S1-2 S. 2)
Drawing · ead6f96bc4e5_S1-2 · S. 2
GEM Elettronica ECD-350 – Page preview (ead6f96bc4e5_S1-2 S. 1)
Page preview · ead6f96bc4e5_S1-2 · S. 1
Source: GEM Elettronica ECD-350 datasheet, p. 2
