F17LV03035YW

Power Cable (0.6/1 kV) · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​⁠​‍⁠⁠⁠‍​‌‌​‌​‌​⁠⁠
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

NOMINAL CROSS SECTIONAL AREA35 mm²🔖
NOMINAL CROSS SECTIONAL AREA SCREEN20 mm²🔖
NO. CONTROL CORES8🔖
NOMINAL SINGLE CORE DIAMETER20.5 mm🔖
NOMINAL OVERALL DIAMETER44.1 mm🔖
NOMINAL WEIGHT2790 kg/km🔖
📄
Download datasheet (PDF) (689 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“These 3-core cables with control wires designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations. They are suitable for laying in earth, in water, outdoors,…”

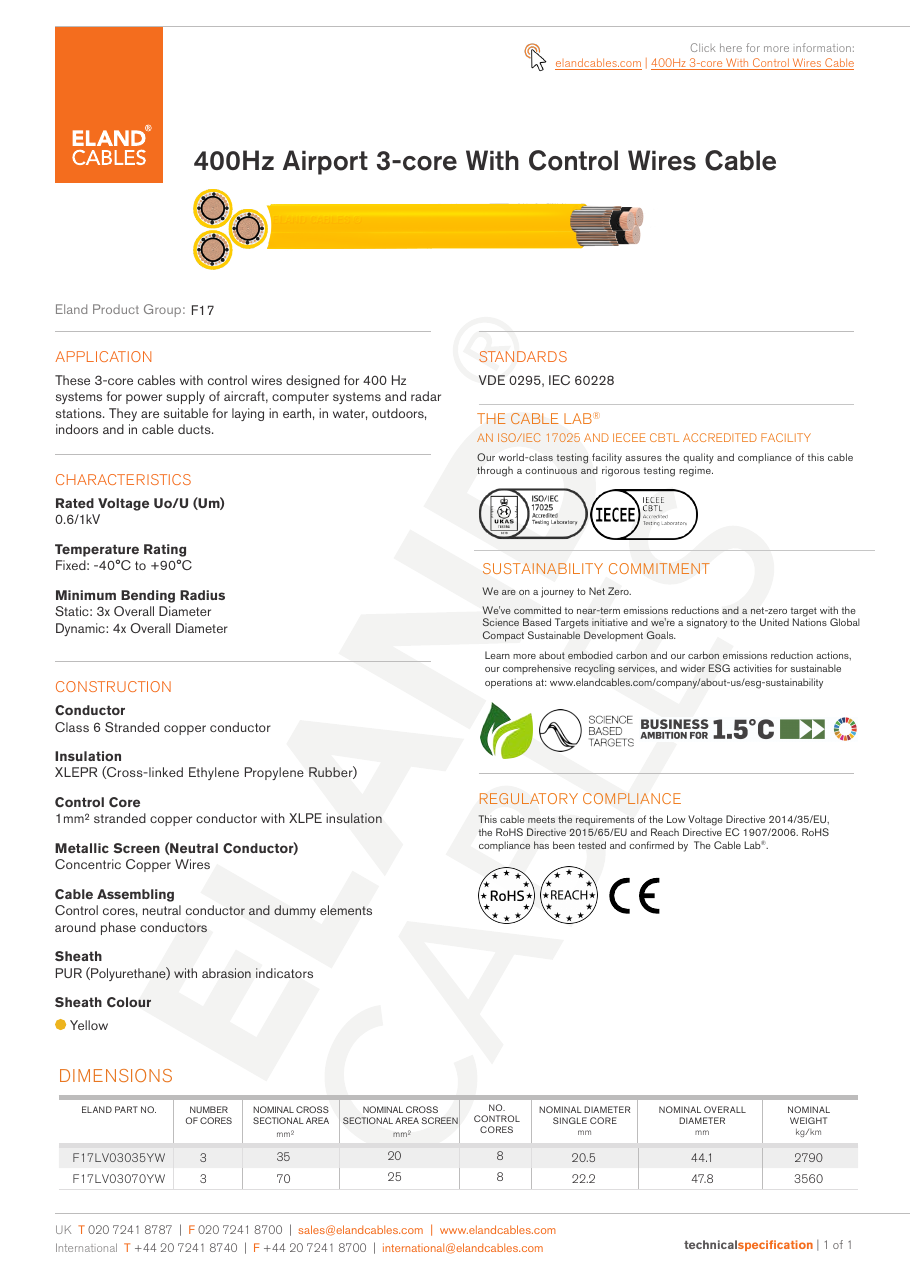

Eland Cables F17LV03035YW – Drawing (51d06aec8237_S1-1 S. 1)
Drawing · 51d06aec8237_S1-1 · S. 1
Source: Eland Cables F17LV03035YW datasheet, p. 1
