Consilium Marine

SAL R1E

Speed Log · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring distance130 mm from surface of transducer
Frequencies3.8 and 4.2 MHz
Speed range±50 knots sensed speed
Speed accuracy<1% or 0.1 knot, whichever is greater
Distance accuracy<1%
Minimum water depth3 meters below the transducer
Dimensions144 x 144 x 16 mm
Weight0.6 kg
Max load100 ohm (10 SD-indicators)
Analogue speed outputOne, 0.1 VDC/knot (max load 5 mA)
Power supply for SD-indicatorsMax 3 SD-indicators
Power requirement230/115 VAC 50-60 Hz
Power consumption30 VA nominal
Environmental requirementsIEC 60945, 4th edition 2002-8
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A cost-efficient solution for speed log and echo sounder for vessels below 50,000 GT.

Applications

  • vessels below 50,000 GT

Features

  • easy to fit in narrow spaces
  • easy maintenance and service with sea valve
  • only one hull penetration
  • only one package to be purchased
  • upgradeable to dual frequency E2 Navigational Sounder

Options

  • upgrade to dual frequency E2 Navigational Sounder

Standards

  • SOLAS

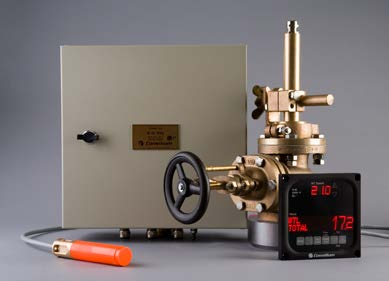

Consilium Marine SAL R1E – Photo (d78898a4ce9c_S2-4 S. 2)
Photo · d78898a4ce9c_S2-4 · S. 2
Consilium Marine SAL R1E – Photo (d78898a4ce9c_S2-4 S. 2)
Photo · d78898a4ce9c_S2-4 · S. 2

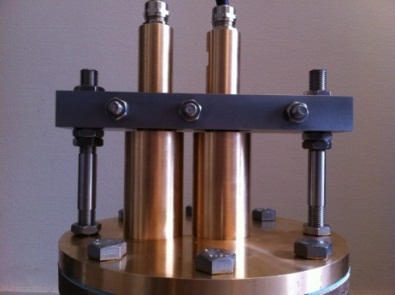

Consilium Marine SAL R1E – Photo (87860a065298_S1-2 S. 1)
Photo · 87860a065298_S1-2 · S. 1
Consilium Marine SAL R1E – Photo (87860a065298_S1-2 S. 2)
Photo · 87860a065298_S1-2 · S. 2
Consilium Marine SAL R1E – Drawing (d78898a4ce9c_S2-4 S. 2)
Drawing · d78898a4ce9c_S2-4 · S. 2

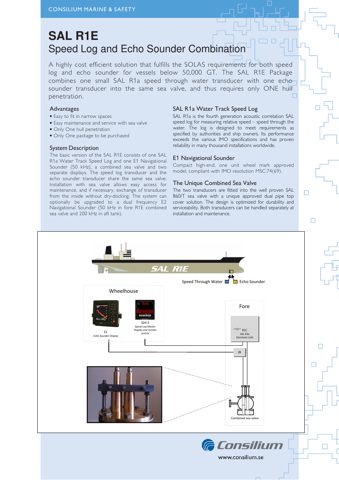

Consilium Marine SAL R1E – Drawing (87860a065298_S1-2 S. 1)
Drawing · 87860a065298_S1-2 · S. 1
Consilium Marine SAL R1E – Drawing (87860a065298_S1-2 S. 2)
Drawing · 87860a065298_S1-2 · S. 2

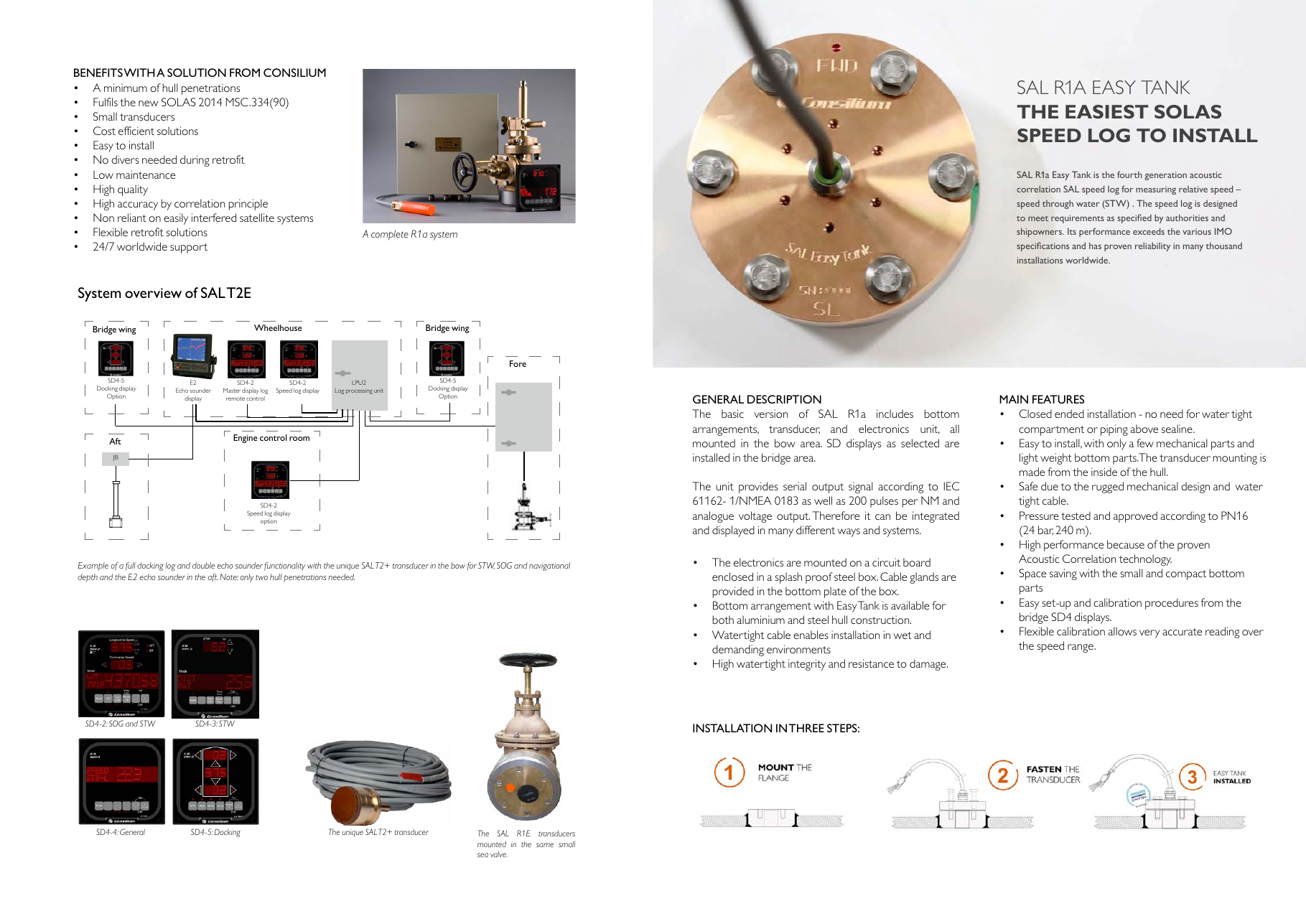

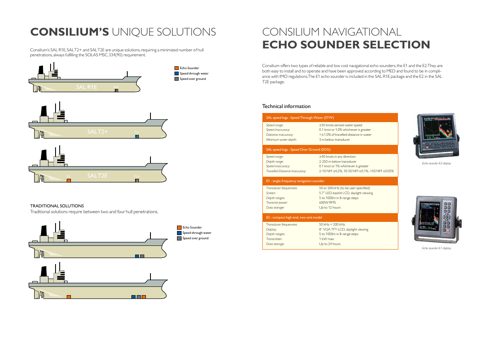

Consilium Marine SAL R1E – Page preview (d78898a4ce9c_S2-4 S. 3)
Page preview · d78898a4ce9c_S2-4 · S. 3
Source: Consilium Marine SAL R1E datasheet, p. 1
