Library› Electrical› Electrical Components & Switchgear› DC Power Supply› DEIF 4189232129C
DEIF

4189232129C

DC Power Supply · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Dimension:Width 40.7 mm (8 TE)
Power consumption:Typical: 9W Max.: 25W
Temperature:Reference: +15…+30°C Nominal: -10…+55°C
Climate:Class HSE (to DIN 40040)
Safety:To EN 61010-1, (overvoltage category) III, 600V, pollution degree 2
Protection:IP20 (to IEC 529 and EN 60529)
Emc/ce:To EN 61000-6-1/2/3/4, SS4631503 (PL4) and IEC 255-3
Material:All plastic materials are self-extinguishing according to UL94 (V1)
Supply voltage:Nom. +24V DC (-25%/+30%) The power is not turned off at
ON/OFF signals:2 relay outputs
Relay rating:250V AC/24V DC – 8A
Galvanic separation: Between relays:2.0KV AC – 50Hz – 1min.
Galvanic separation: To earth (chassis).2.0KV AC – 50Hz – 1min.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Power supply The Power supply and Control Module (PCM) supplies the other DELOMATIC 4 modules with power. The PCM provides a galvanic insulation between the power source and the DELOMATIC 4 system.…”

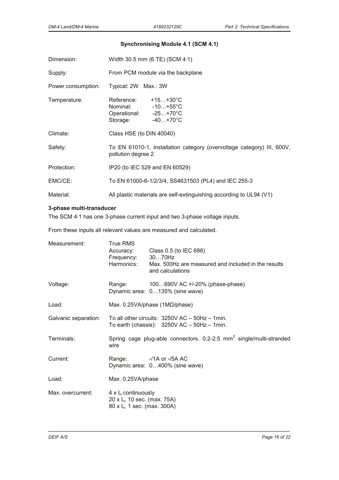

DEIF 4189232129C – Drawing (5528fc839add_S8-17 S. 9)
Drawing · 5528fc839add_S8-17 · S. 9

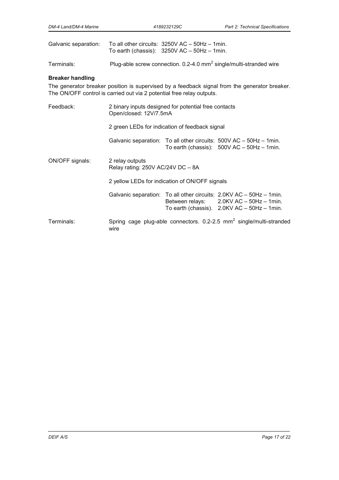

DEIF 4189232129C – Drawing (5528fc839add_S8-17 S. 10)
Drawing · 5528fc839add_S8-17 · S. 10
DEIF 4189232129C – Page preview (5528fc839add_S8-17 S. 8)
Page preview · 5528fc839add_S8-17 · S. 8
Source: DEIF 4189232129C datasheet, p. 1
