Library› Electrical› Electrical Components & Switchgear› Fuse› newmar FDP-1010-48N
newmar

FDP-1010-48N

Fuse · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Nominal Input/Output48 VDC🔖
Total Fuse Capacity10 GMT fuse per bus🔖
Amps/Bus (Dual Bus)100🔖
Total Current Capacity200 A (dual 100 amp/bus)🔖
Fuse Holder & Fuse Rating*15 A maximum🔖
GMT Fuses (available amps)1, 3, 5, 10, and 15 A🔖
Dimensions450 x 432 x 292 mm🔖
Weight3.83 kg [8 lb]🔖
Operating Temperature-20–60°C [-5°–140°F]🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

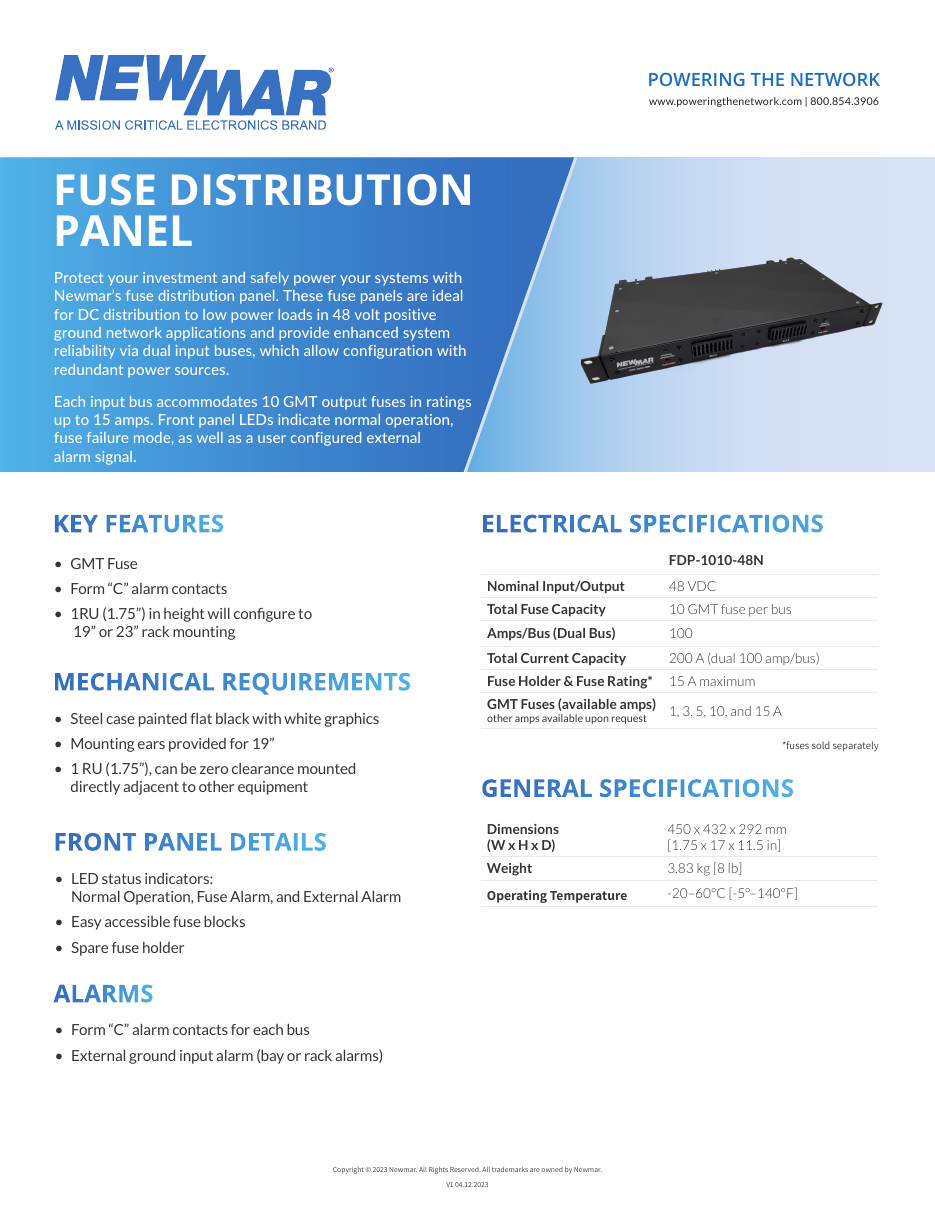

“FUSE DISTRIBUTION PANEL Protect your investment and safely power your systems with Newmar’s fuse distribution panel. These fuse panels are ideal for DC distribution to low power loads in 48 volt…”

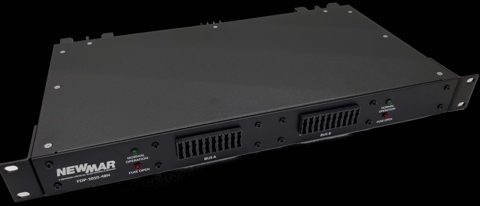

newmar FDP-1010-48N – Photo (e0b15aeabf90_S1-1 S. 1)
Photo · e0b15aeabf90_S1-1 · S. 1
newmar FDP-1010-48N – Photo (e0b15aeabf90_S1-1 S. 1)
Photo · e0b15aeabf90_S1-1 · S. 1
newmar FDP-1010-48N – Drawing (e0b15aeabf90_S1-1 S. 1)
Drawing · e0b15aeabf90_S1-1 · S. 1
Source: newmar FDP-1010-48N datasheet, p. 1
