Library› Deck› Accommodation & Access Equipment› Helideck› Matre Maskin DY16
Matre Maskin

DY16

Helideck · Accommodation & Access Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Diameter7 m
Height7 m
Interface for water supply1 ½” BSPP Female
Design pressure20 bar
Water pressure range4‐6 bar
Flow toleranceNominal value ± 5%
Spread diameter7m
Spread height6m
Weight0,6 kg
Deck thickness120 mm ± 10
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Matre`s DY16 pop‐up nozzles is designed to ensure uniform & reliable firewater distribution on helicopter deck in an emergency situation. Each nozzle will be spraying water in a semi‐sphere covering…”

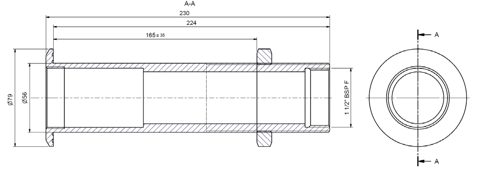

Matre Maskin DY16 – Photo (5de40abe2ca5_S2-3 S. 2)
Photo · 5de40abe2ca5_S2-3 · S. 2

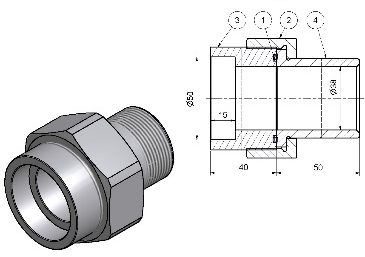

Matre Maskin DY16 – Photo (5de40abe2ca5_S2-3 S. 2)
Photo · 5de40abe2ca5_S2-3 · S. 2

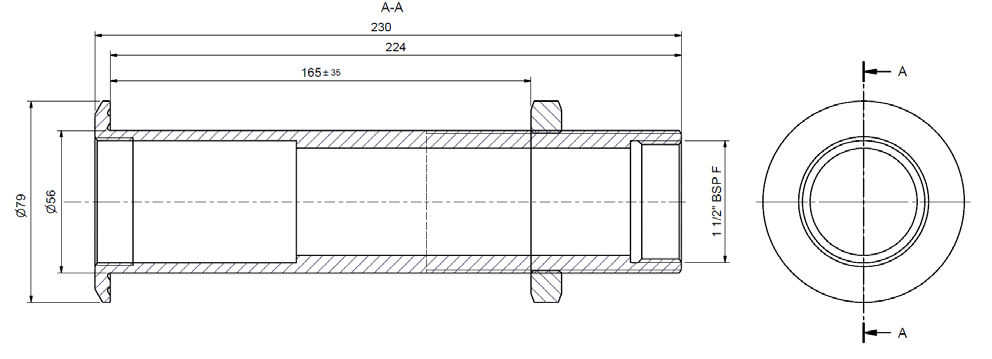

Matre Maskin DY16 – Drawing (5de40abe2ca5_S2-3 S. 2)
Drawing · 5de40abe2ca5_S2-3 · S. 2
Source: Matre Maskin DY16 datasheet, p. 1
