Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› Hansford Sensors HS-200
Hansford Sensors

HS-200

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature OutputPT100 (100 Ohms)
IsolationBase isolated
Case MaterialStainless Steel
Mounting Torque8Nm
Weight125gms (nominal) body only
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The HS-200 is a PT100 temperature sensor designed for use with data collectors in various industries.

Applications

  • Building services
  • Pulp and Paper
  • Mining
  • Metals
  • Utilities
  • Automotive

Features

  • PT100 Temperature output
  • Customisable features
  • Base isolated

Options

  • Shielded Cable Assembly options available

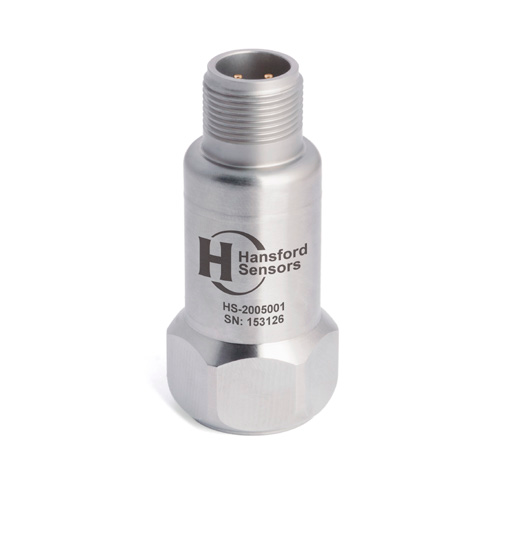

Hansford Sensors HS-200 – Photo (2aa1fd40a0d4_S1-1 S. 1)
Photo · 2aa1fd40a0d4_S1-1 · S. 1
Hansford Sensors HS-200 – Drawing (2aa1fd40a0d4_S1-1 S. 1)
Drawing · 2aa1fd40a0d4_S1-1 · S. 1
Hansford Sensors HS-200 – Drawing (018f176102ad_S1-1 S. 1)
Drawing · 018f176102ad_S1-1 · S. 1

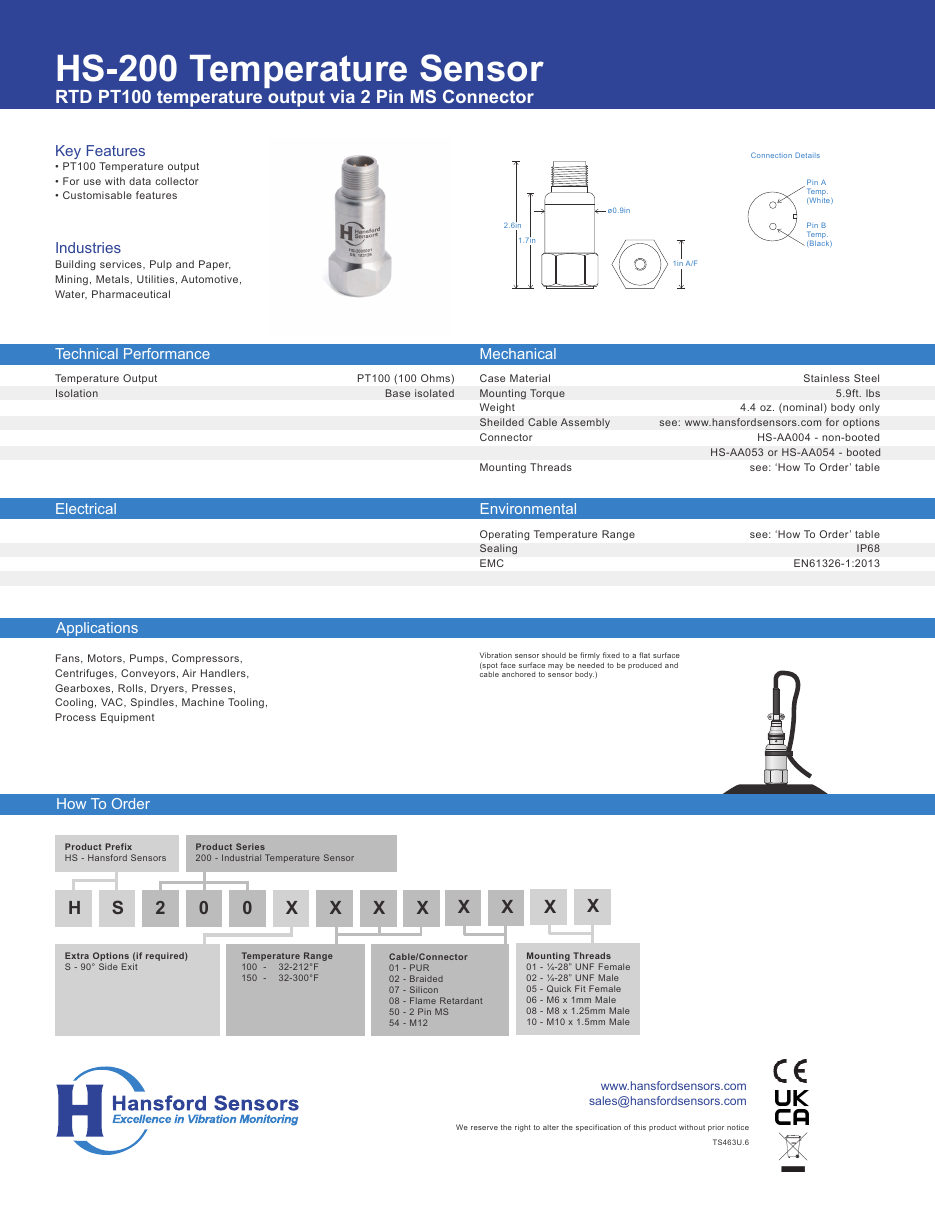

Source: Hansford Sensors HS-200 datasheet, p. 1
