Danfoss

KPS 43

Pressure Switch · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

T1 min.-25 °C
T2 max.-25 °C
Range Pe1 – 10 [bar]
Setting range Pe1 – 10 [bar]
Adjustable differential0.7 – 2.8 [bar]
Permissible operating pressure Pe120 [bar]
Max. test pressure180 [bar]
Min. burst pressure240 [bar]
Net weightapprox. 1.3 kg
Scale accuracy+1.0 [bar]
Mean value of snap point variation after+0.2 [bar]
Range1 - 10 bar
Mean value of snap point variation after 400 000 operations±0.2 bar
Range Pe [bar]1 – 10
[bar]1 – 10
TypeKPS 43
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The KPS series pressure switch and thermostat is used to monitor and control pressure in marine systems.

Applications

  • pressure monitoring

Features

  • pressure monitoring

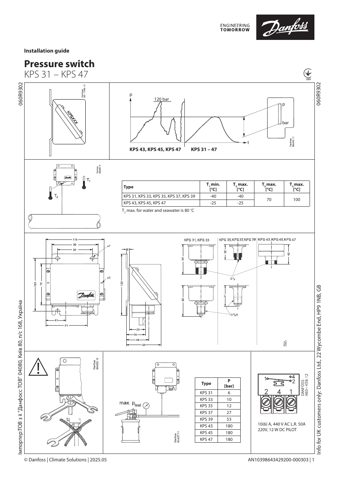

Danfoss KPS 43 – Drawing (3ce245eedc17_S1-1 S. 1)
Drawing · 3ce245eedc17_S1-1 · S. 1

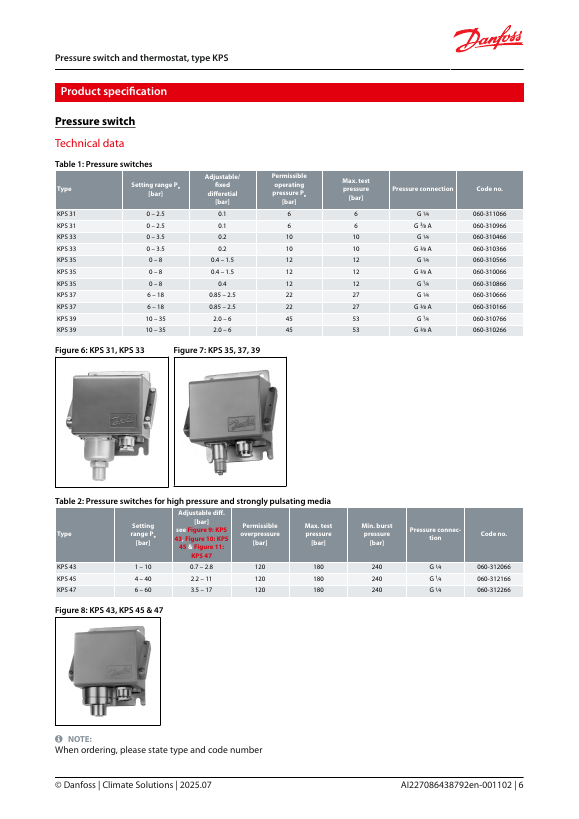

Danfoss KPS 43 – Drawing (6db431db1ec9_S3-7 S. 5)
Drawing · 6db431db1ec9_S3-7 · S. 5

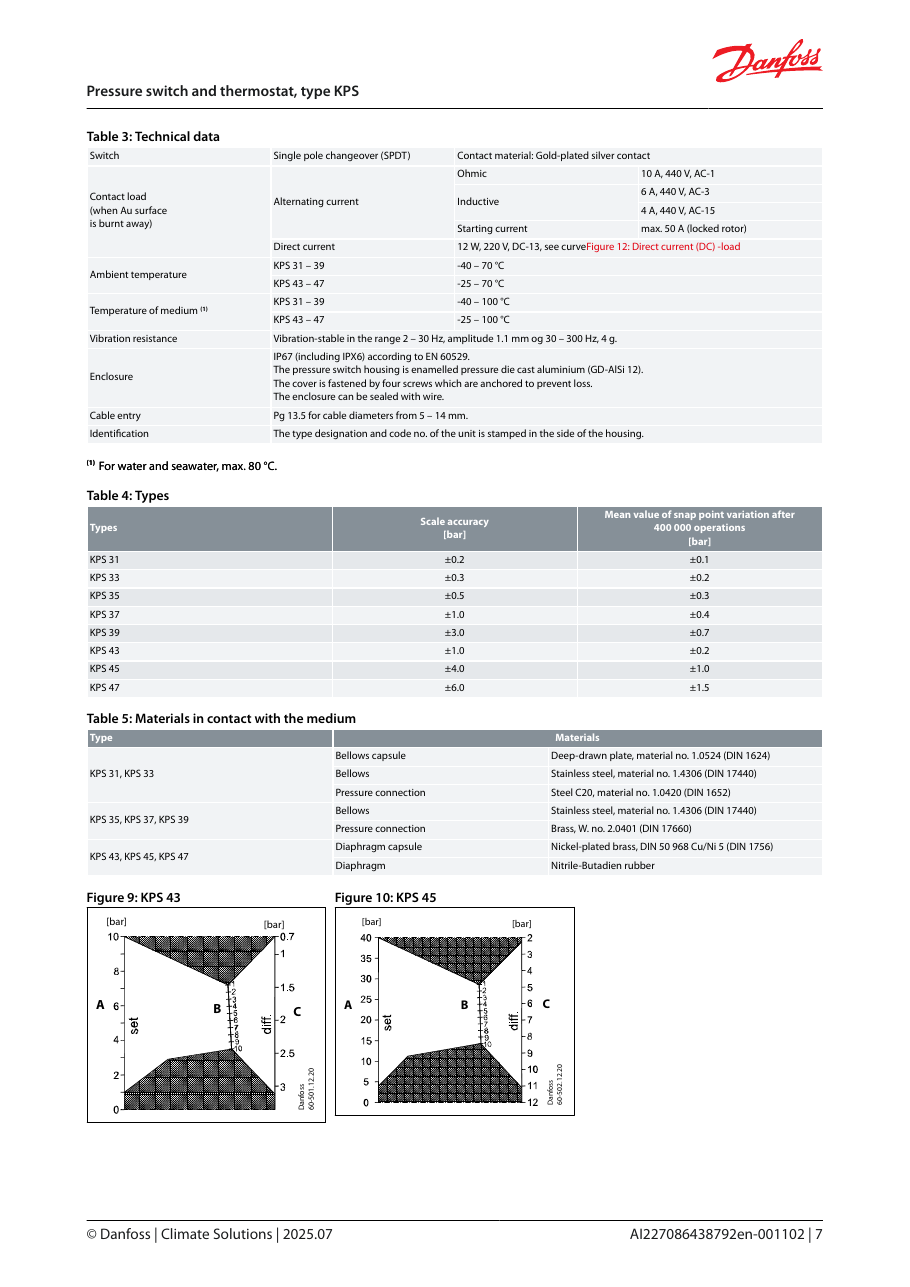

Danfoss KPS 43 – Drawing (47b8470f5410_S2-8 S. 3)
Drawing · 47b8470f5410_S2-8 · S. 3

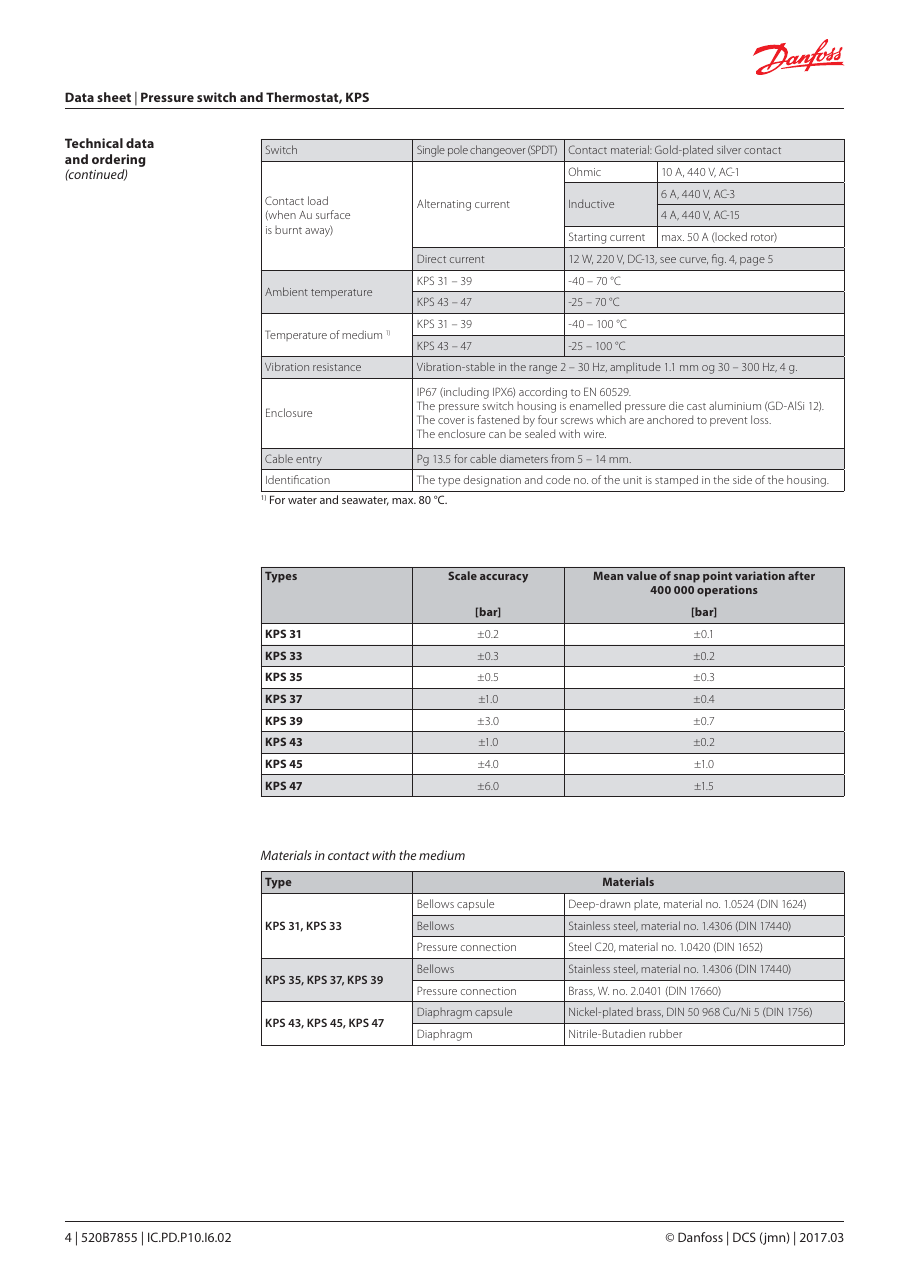

Danfoss KPS 43 – Page preview (6db431db1ec9_S3-7 S. 4)
Page preview · 6db431db1ec9_S3-7 · S. 4

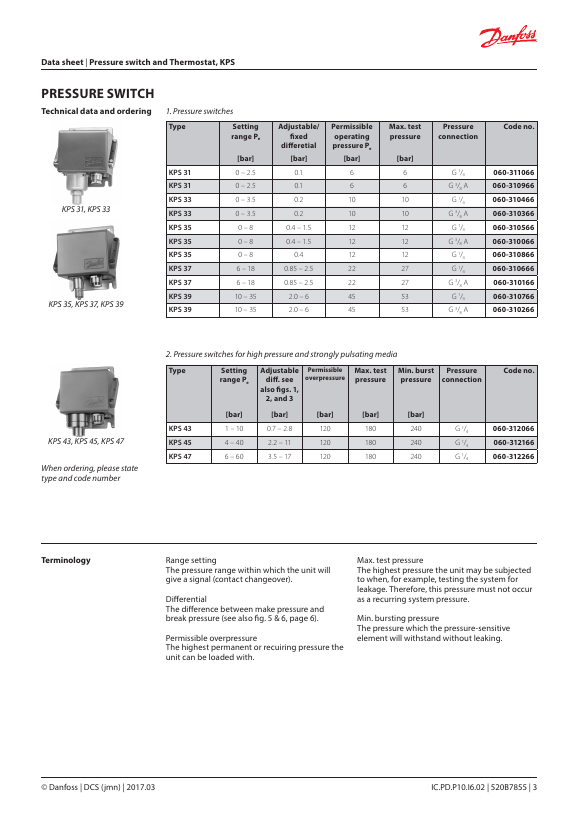

Danfoss KPS 43 – Page preview (47b8470f5410_S2-8 S. 2)
Page preview · 47b8470f5410_S2-8 · S. 2

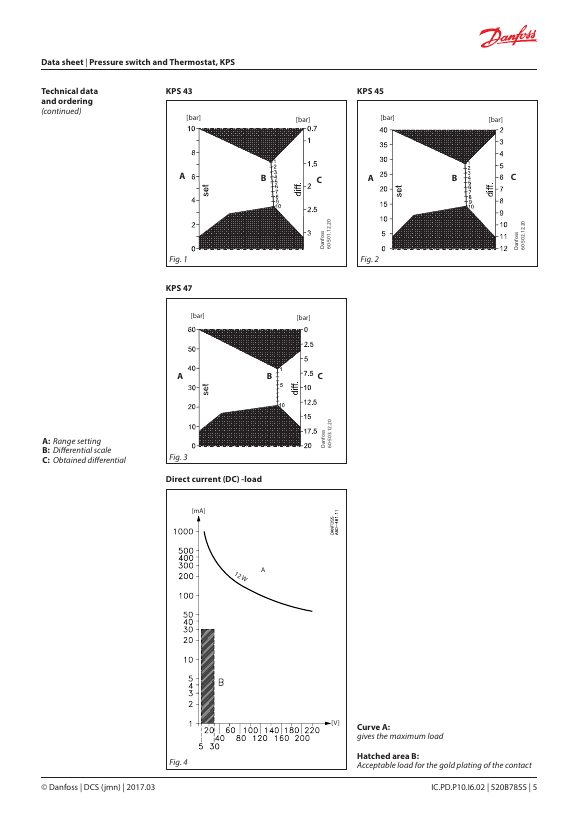

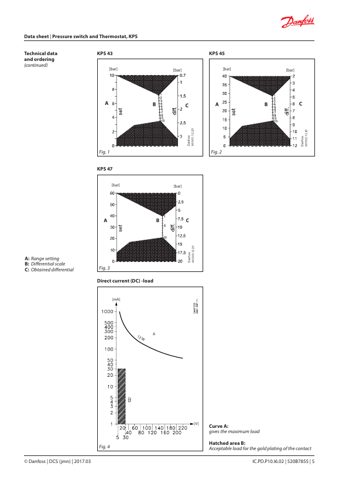

Danfoss KPS 43 – Page preview (47b8470f5410_S2-8 S. 4)
Page preview · 47b8470f5410_S2-8 · S. 4
Source: Danfoss KPS 43 datasheet, p. 5
