Library› Electrical› Instrumentation & Gauges› Pressure Switch› Danfoss KPS 33
Danfoss

KPS 33

Pressure Switch · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

T1 min.-40 °C
T2 max.-40 °C
Range Pe0 – 3.5 [bar]
Setting range Pe0 – 3.5 [bar]
Adjustable differential0.2 [bar]
Permissible operating pressure Pe10 [bar]
Max. test pressure10 [bar]
Scale accuracy+0.3 [bar]
Mean value of snap point variation after 400 000 operations±0.2 bar
Net weightapprox. 1.0 kg
Range Pe [bar]0 – 3.5 [bar]
TypeKPS 33
Mean value of snap point variation after+0.2 [bar]
Range0 - 3.5 bar
[bar]0 – 3.5
Setting range0 – 3.5 bar
Permissible differential pressure Pe0.2 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“American Bureau of Shipping, ABS Det Norske Veritas, DNV Germanischer Lloyd, GL Registro Italiano Navale, RINA Maritime Register of Shipping, RMRS Nippon Kaiji Kyokai, NKK China Classification…”

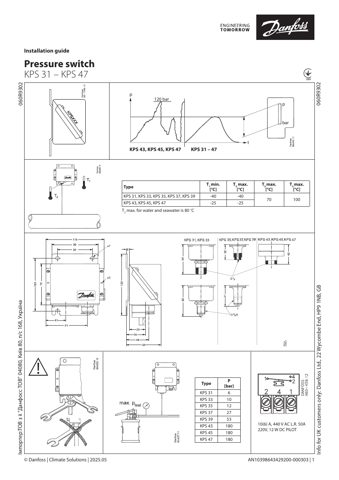

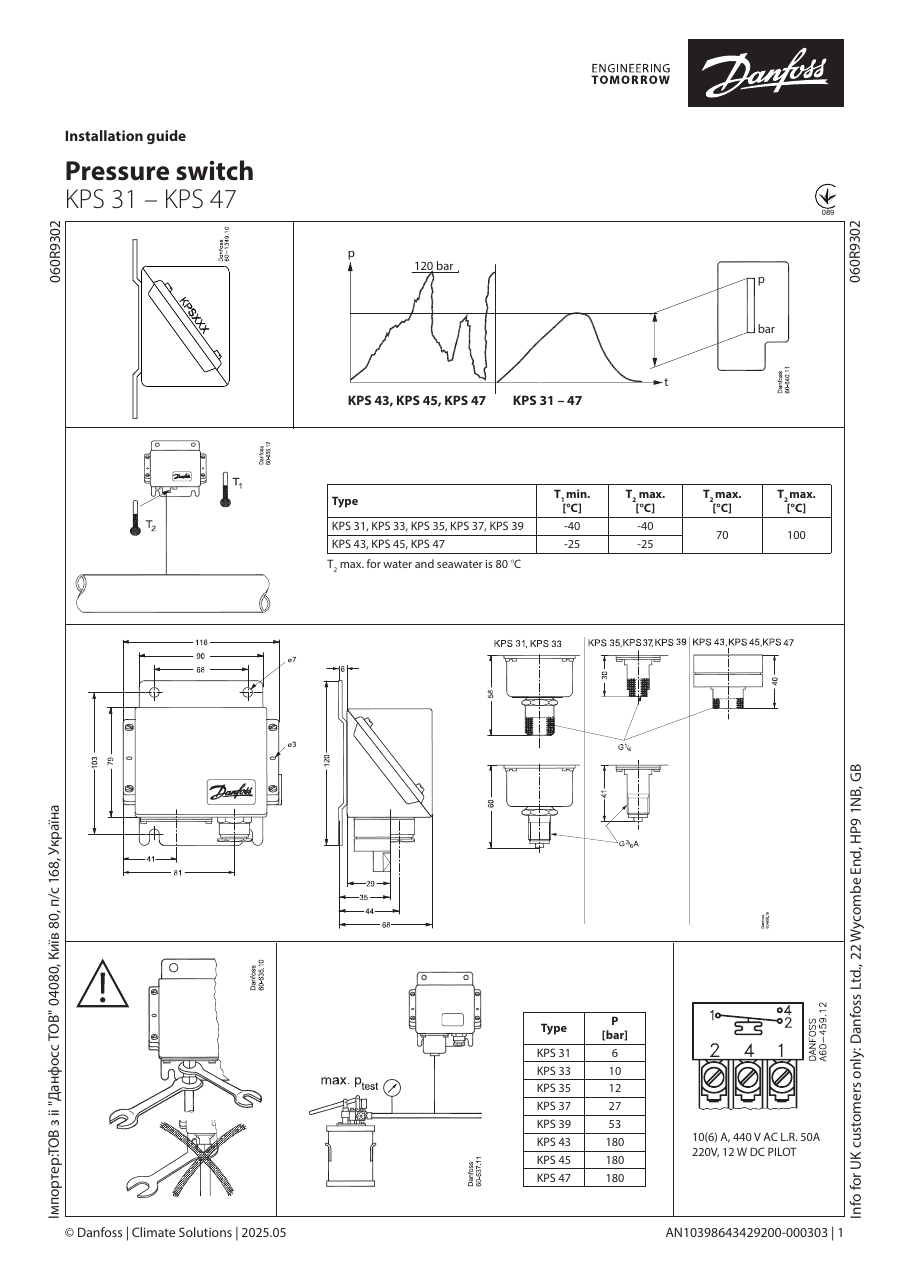

Danfoss KPS 33 – Drawing (9d10754d1b01_S1-1 S. 1)
Drawing · 9d10754d1b01_S1-1 · S. 1
Danfoss KPS 33 – Drawing (a1d0863d3f64_S3-7 S. 5)
Drawing · a1d0863d3f64_S3-7 · S. 5
Danfoss KPS 33 – Drawing (392cd2bdf05e_S2-8 S. 3)
Drawing · 392cd2bdf05e_S2-8 · S. 3
Danfoss KPS 33 – Page preview (a1d0863d3f64_S3-7 S. 4)
Page preview · a1d0863d3f64_S3-7 · S. 4

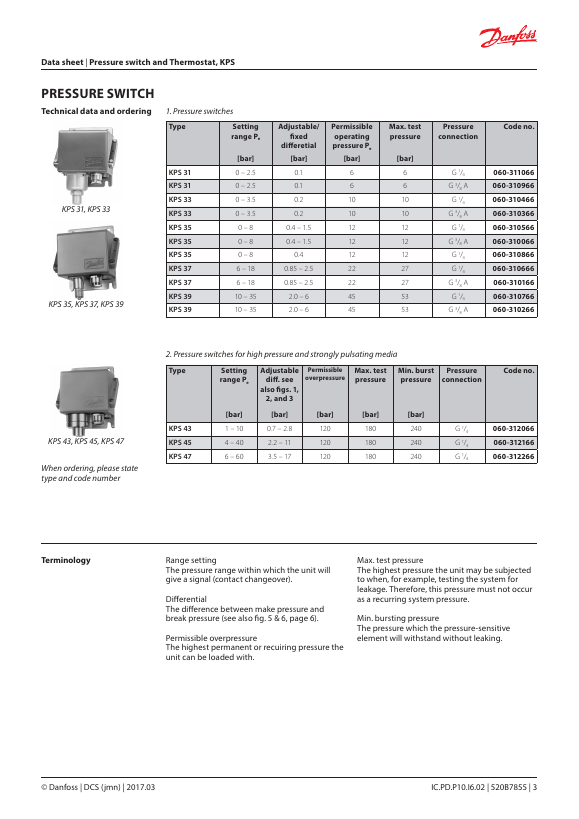

Danfoss KPS 33 – Page preview (392cd2bdf05e_S2-8 S. 2)
Page preview · 392cd2bdf05e_S2-8 · S. 2

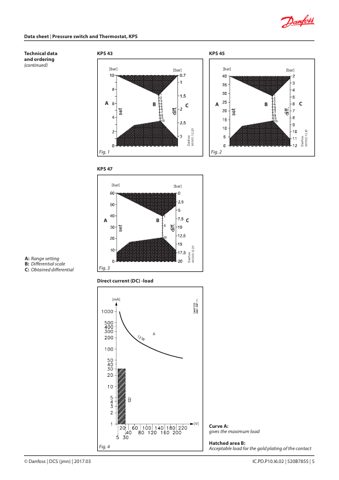

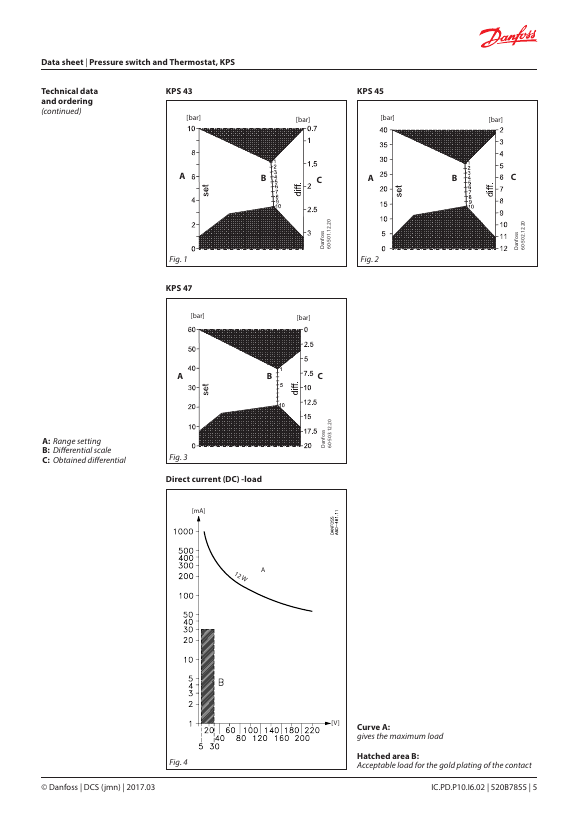

Danfoss KPS 33 – Page preview (392cd2bdf05e_S2-8 S. 4)
Page preview · 392cd2bdf05e_S2-8 · S. 4
Source: Danfoss KPS 33 datasheet, p. 1
