Library› Engine Room› Industrial Valves› Valve Actuator› AUMA SVM 05.1 – SVM 07.5/SVMR 05.1 – SVMR 07.5
AUMA

SVM 05.1 – SVM 07.5/SVMR 05.1 – SVMR 07.5

Valve Actuator · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Power supply1-phase AC
Voltages/frequencies115/230 V
Hz50/60 Hz
Permissible variation of mains voltage±10 %
Permissible variation of mains frequency±5 %
External supply of the electronics24 V DC +20 %/–15 %
Current consumptionWith options up to 200 mA
Overvoltage categoryCategory III
Power electronicsPower electronics with integral motor controller
Rated powerControls are designed for rated motor power
Control4 digital inputs (via opto-isolator, with one common)
Control voltage24 V DC
Minimum pulse duration for shortest operation pulse100 ms
Analogue input0/4 – 20 mA
Output contacts4 programmable semi-conductor output contacts, per contact max. 24 V DC, 1 A (re
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SVM 05.1 – SVM 07.5/SVMR 05.1 – SVMR 07.5 Technical data Globe valve actuators with integral actuator controls for open-close and modulating duty Features and functions of actuator controls Power…”

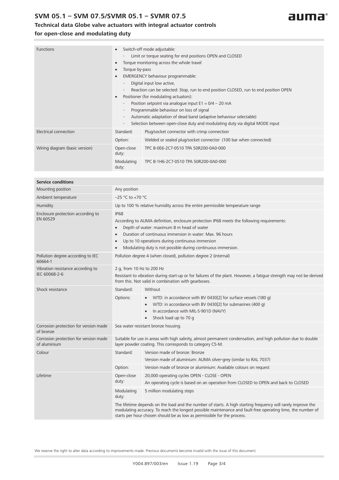

AUMA SVM 05.1 – SVM 07.5/SVMR 05.1 – SVMR 07.5 – Drawing (44ddea2c8244_S2-4 S. 2)
Drawing · 44ddea2c8244_S2-4 · S. 2
AUMA SVM 05.1 – SVM 07.5/SVMR 05.1 – SVMR 07.5 – Drawing (44ddea2c8244_S2-4 S. 3)
Drawing · 44ddea2c8244_S2-4 · S. 3
Source: SVMR 05.1 – SVMR 07.5 datasheet, p. 1
