Library› Safety & LSA› Breathing Apparatus› Self-Contained Breathing Apparatus (SCBA)› Avon Protection FM53
Avon Protection

FM53

Self-Contained Breathing Apparatus (SCBA) · Breathing Apparatus

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

CBRN Agent Resistance Mustard (H)Greater than 36 hours
CBRN Agent Resistance Sarin (GB)Greater than 36 hours
CBRN Agent Resistance Soman (GD)Greater than 36 hours
CBRN Agent Resistance VXGreater than 36 hours
FM53 mask weight1.6 lbs.
FM53 mask field of view96
FM53 mask inhalation resistance at 85 l/Min15 mm WG
FM53 mask inhalation resistance at 160 l/min32 mm WG
FM53 mask exhalation resistance negative pressure mode at 85 l/min15 mm WG
FM53 mask exhalation resistance negative pressure mode at 160 l/min30 mm WG
FM53 mask hydration flow rate>230 ml/min
Dublette von208703
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

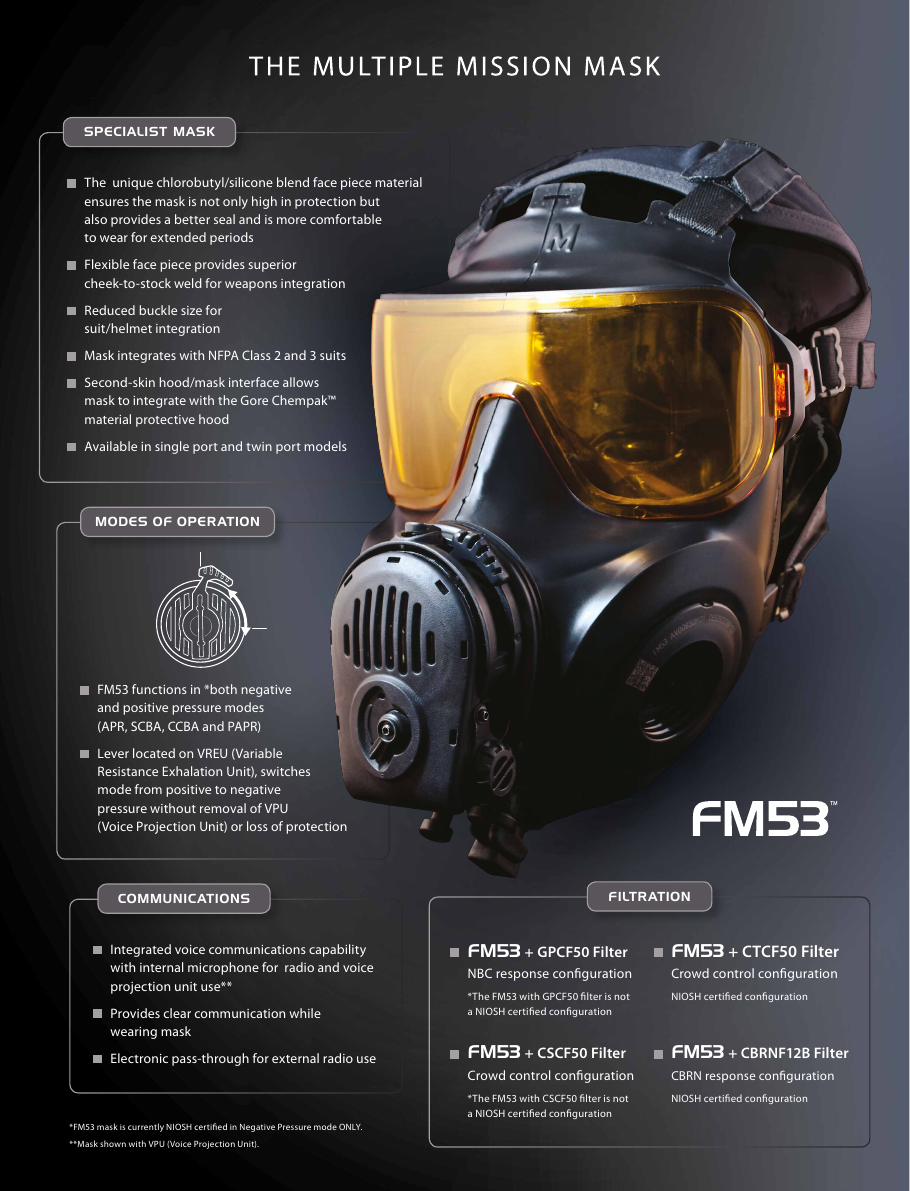

“. The flexible, panoramic eyelens minimizes visual stress and maximizes field of view; provides ballistic protection and scratch resistance”

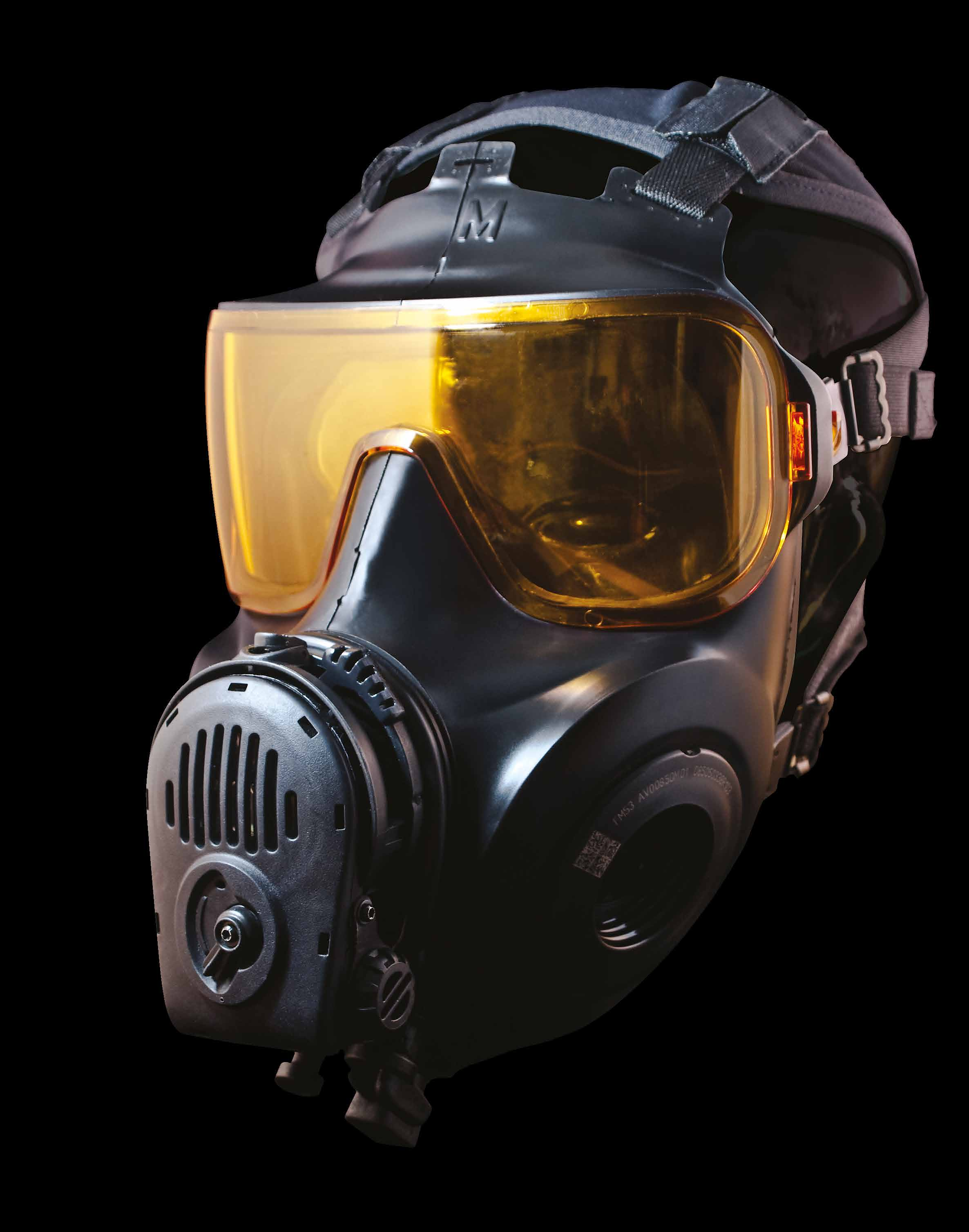

Avon Protection FM53 – Photo (c2184f27fbdf_S2-4 S. 2)
Photo · c2184f27fbdf_S2-4 · S. 2
Avon Protection FM53 – Photo (c2184f27fbdf_S2-4 S. 2)
Photo · c2184f27fbdf_S2-4 · S. 2
Avon Protection FM53 – Drawing (c2184f27fbdf_S2-4 S. 2)
Drawing · c2184f27fbdf_S2-4 · S. 2
Avon Protection FM53 – Drawing (c2184f27fbdf_S2-4 S. 3)
Drawing · c2184f27fbdf_S2-4 · S. 3

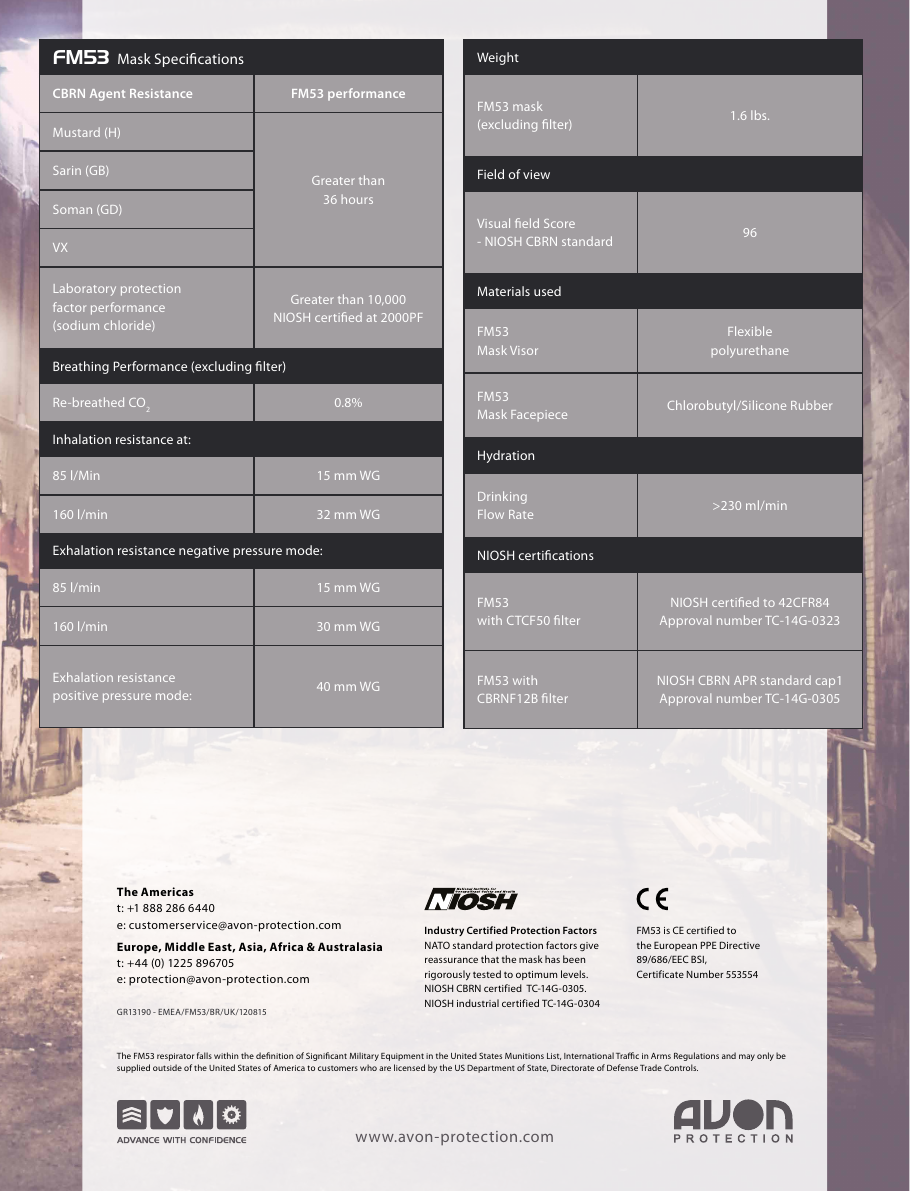

Source: Avon Protection FM53 datasheet, p. 1
