Library› Navigation› Signaling & Visual› Fog Horn / Sound Signal› Kahlenberg Industries KB-20
Kahlenberg Industries

KB-20

Fog Horn / Sound Signal · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

D.C. VOLTAGE REQUIREMENTS24-32 Volts D.C. (500 watts)
A.C. VOLTAGE REQUIREMENTS110/240 Volts
KB-20 Heater150 watts
M-477 Power Supply (if used)110/240 Volts A.C. 50/60 Hz
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1.) GENERAL: The Kahlenberg KB-20 is an Electric Horn system for marine use that produces in excess of 130 dB (1/3 Octave Band) @ 1 Meter, as required by IMO Regulations for vessels up to 75 meters…”

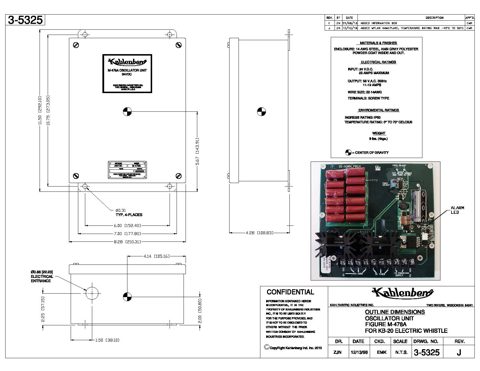

Kahlenberg Industries KB-20 – Photo (b61434db9d0e_S1-18 S. 9)
Photo · b61434db9d0e_S1-18 · S. 9

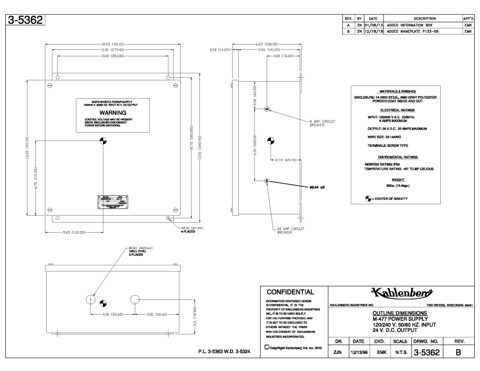

Kahlenberg Industries KB-20 – Photo (b61434db9d0e_S1-18 S. 10)
Photo · b61434db9d0e_S1-18 · S. 10

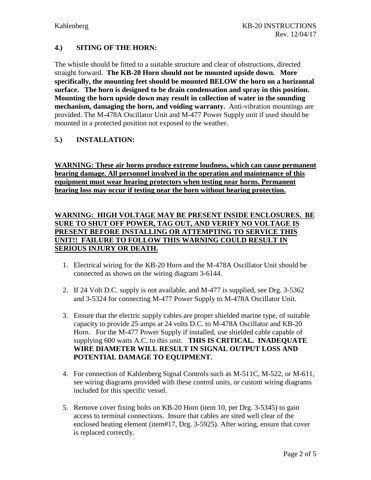

Kahlenberg Industries KB-20 – Drawing (b61434db9d0e_S1-18 S. 2)
Drawing · b61434db9d0e_S1-18 · S. 2
Kahlenberg Industries KB-20 – Drawing (b61434db9d0e_S1-18 S. 3)
Drawing · b61434db9d0e_S1-18 · S. 3

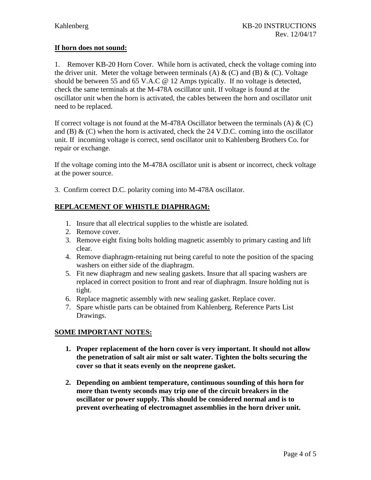

Kahlenberg Industries KB-20 – Drawing (b61434db9d0e_S1-18 S. 4)
Drawing · b61434db9d0e_S1-18 · S. 4
Kahlenberg Industries KB-20 – Page preview (b61434db9d0e_S1-18 S. 1)
Page preview · b61434db9d0e_S1-18 · S. 1

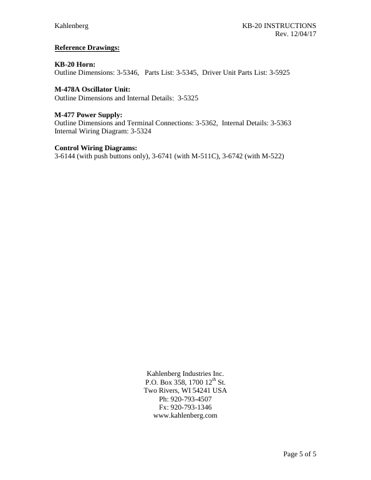

Kahlenberg Industries KB-20 – Page preview (b61434db9d0e_S1-18 S. 5)
Page preview · b61434db9d0e_S1-18 · S. 5
Kahlenberg Industries KB-20 – Page preview (b61434db9d0e_S1-18 S. 6)
Page preview · b61434db9d0e_S1-18 · S. 6
Source: Kahlenberg Industries KB-20 datasheet, p. 1
