Alphatron

M500

CCTV / Camera System · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‍⁠‌‍⁠⁠‍‌‍​​​⁠⁠‍⁠⁠
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Video Refresh Rate25 Hz (PAL) / 30 Hz (NTSC)
Field of View LimitsOptical 28° x 21° WFOV to 2° x 1.5° NFOV
E-zoom4x
Netd<30 mK
Spectral Response3-5 μm
Visible Sensor1/2.8" CMOS
Resolution1920 x 1080
E- Zoom12x
Video InterfaceAnalog video, HD-SDI
Video over Ethernet2 channels of streaming MPEG-4, H.264, or M-JPEG
Nmea0183TCP/IP, RS-422, NMEA 0183, Pelco D
CommunicationsTCP/IP, RS-422, Pelco D
Video FormatsNTSC or PAL NTSC or PAL, 720p30, 1080p30
Power Requirements12 VDC to 24 VDC (-10%+30% per IEC 60945)
Power Consumption250 W (max w/heaters)
Output ModesBlack hot, white hot, false color palettes
Contrast EnhancementAGC or manual, histogram equalization, local contrast enhancement algorithms ava
Sharpness EnhancementAutomatic, adjustable Digital Detail Enhancement
OverlaysIntegrated graphics overlays to indicate azimuth, AGC, active camera and menu co
Operating temp-25°C to +55°C
Storage temp-50°C to +80°C
Weight45 lb (20.4 kg)
Size10.75” (273 mm) dia. x 15.65” (397.5 mm) ht
Salt MistIEC 60945
Camera Input Power24 Vdc, 2.5 A typical, 5.5 A max 12 Vdc, 5 A typical, 11 A max Absolute range 12
Operating temperature range–20 °C to +55 °C (–4 °F to +131 °F) per IEC 60945
Storage temperature range–50 °C to +80 °C (–58 °F to +176 °F)
Sand/dustIEC 60945
Shock15 g vertical, 9 g horizontal
VibrationIEC 60945
Lightening ProtectionIEC 60945
EmiIEC 60945
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

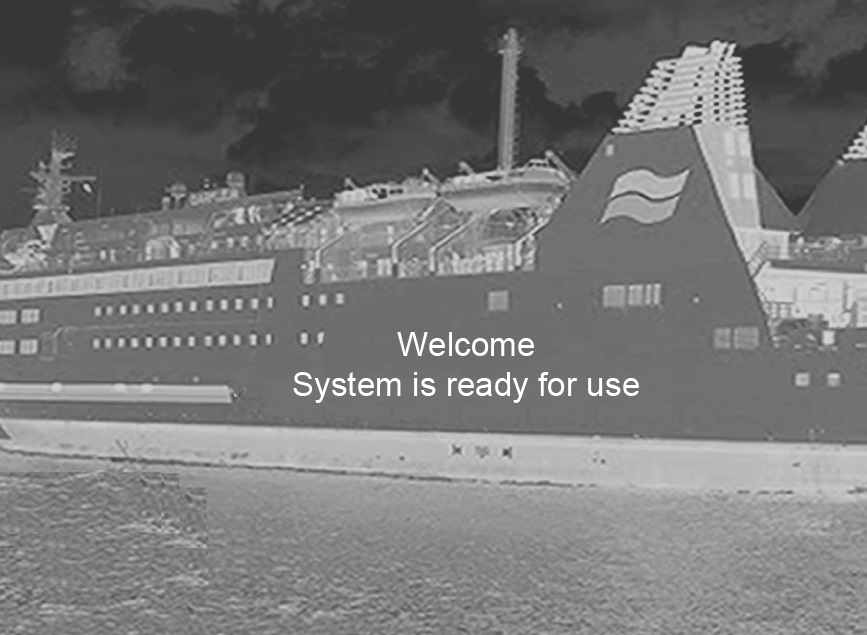

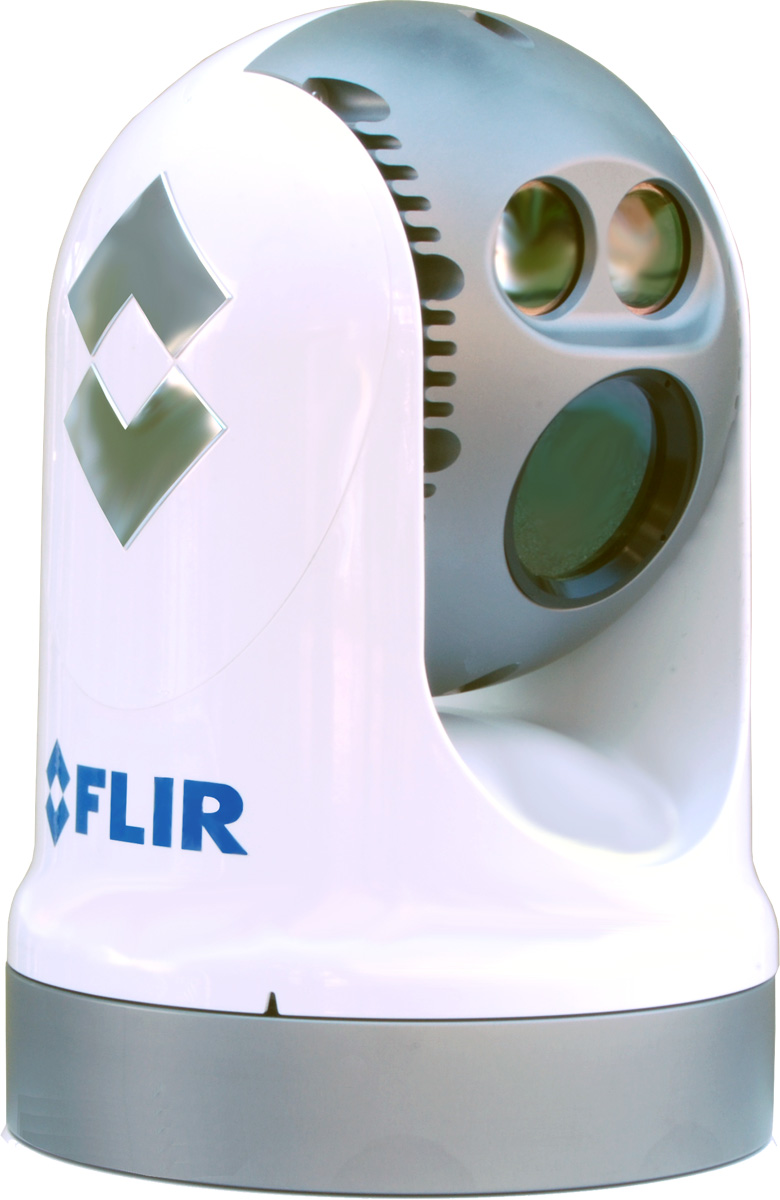

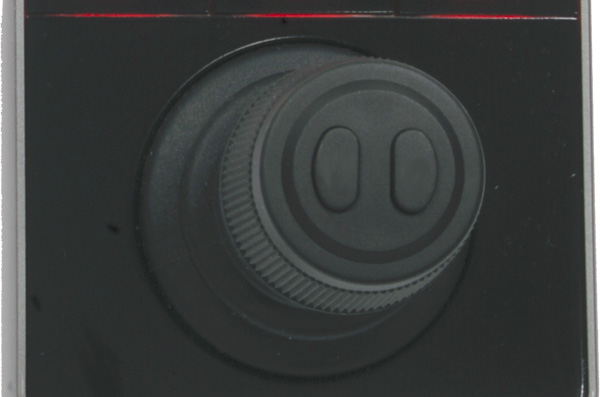

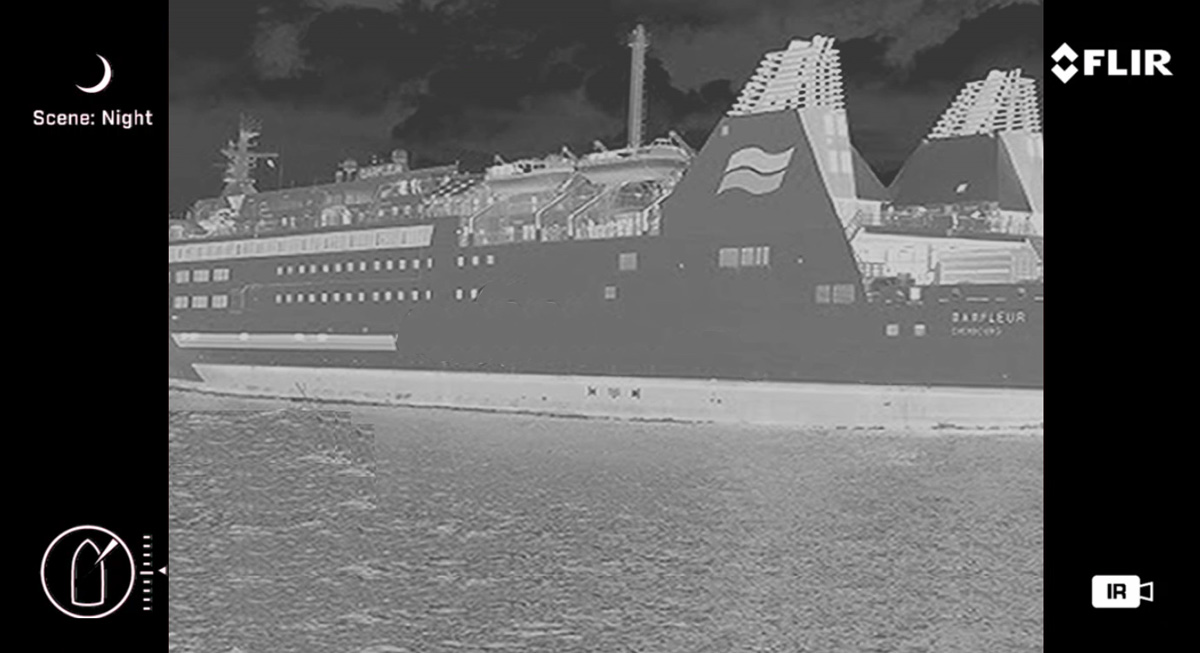

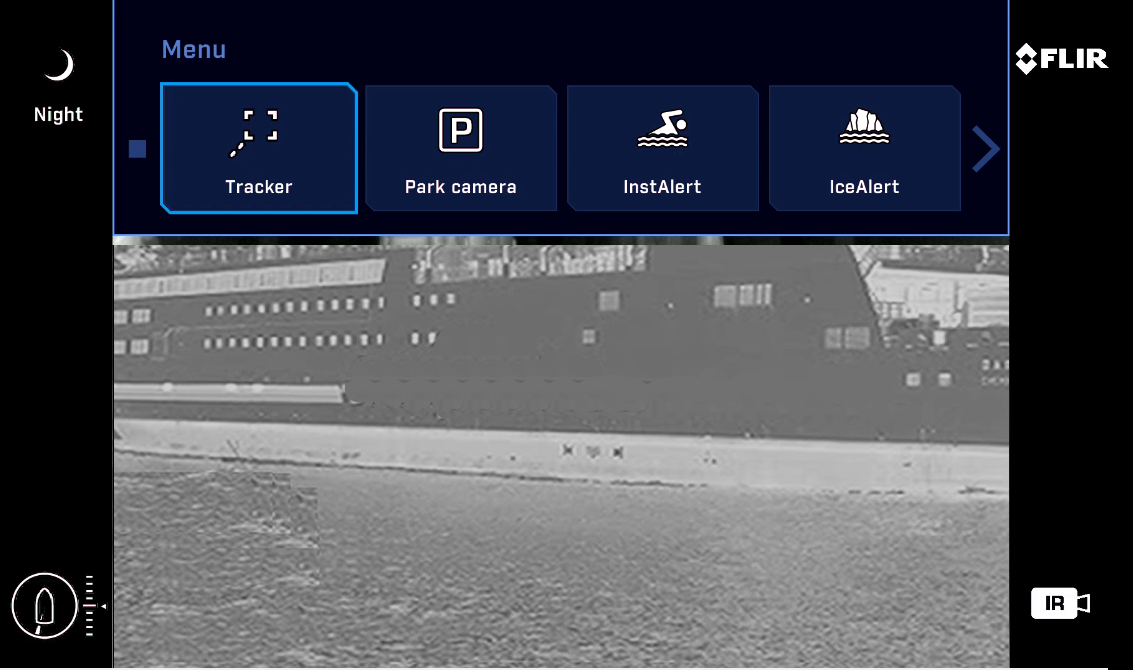

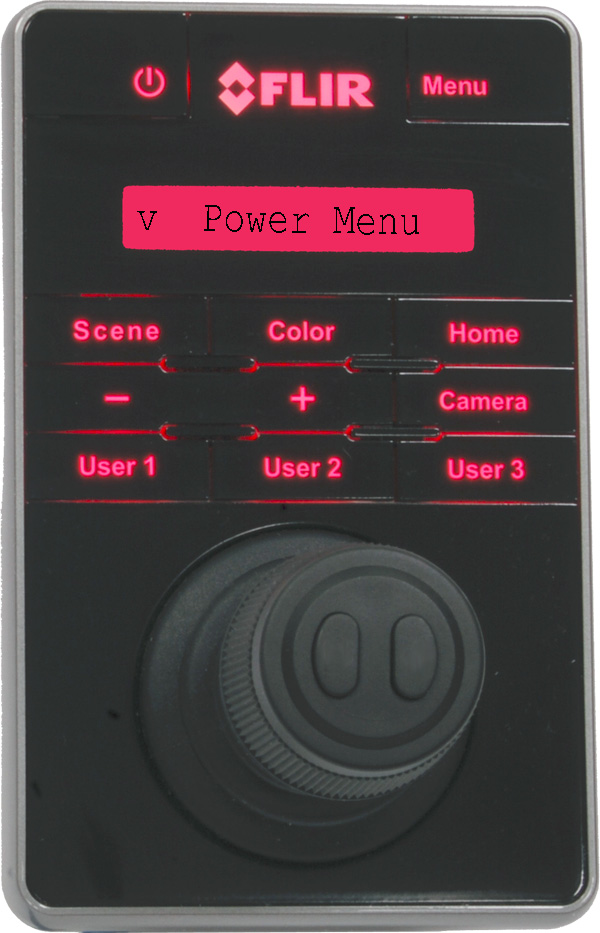

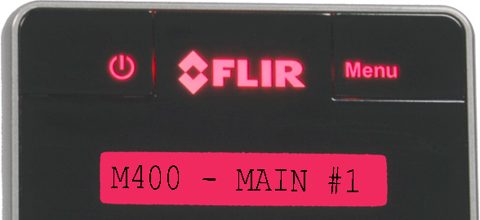

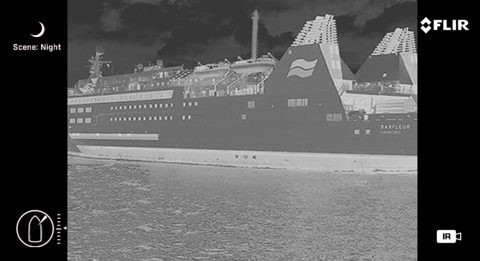

“250 W (max w/heaters) Black hot, white hot, false color palettes AGC or manual, histogram equalization, local contrast enhancement algorithms available Automatic, adjustable Digital Detail…”
