Library› Navigation› GMDSS› VSAT› Alphatron v240K
Alphatron

v240K

VSAT · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Antenna Weight670kg / 1477lbs
Cross-level Range±30°
TX Frequency13.75~14.5GHz Ku-band
RX Frequency10.95~12.75GHz Ku-band
BUC Power16W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

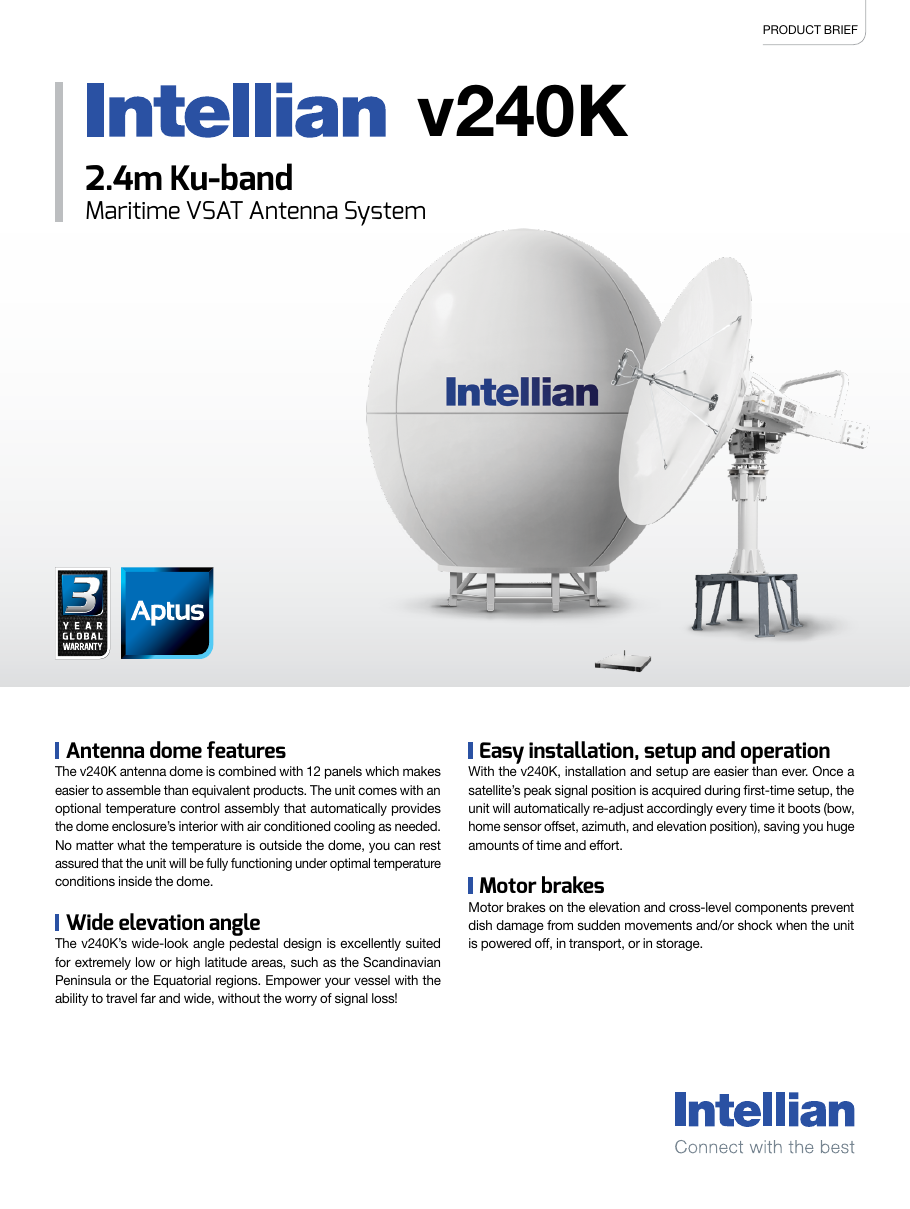

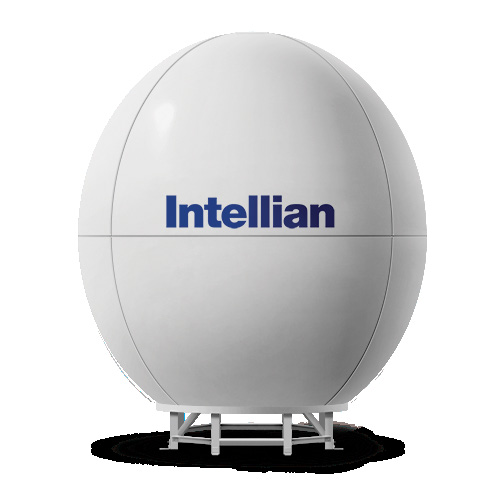

“The v240K antenna dome is combined with 12 panels which makes easier to assemble than equivalent products. The unit comes with an optional temperature control assembly that automatically provides the…”

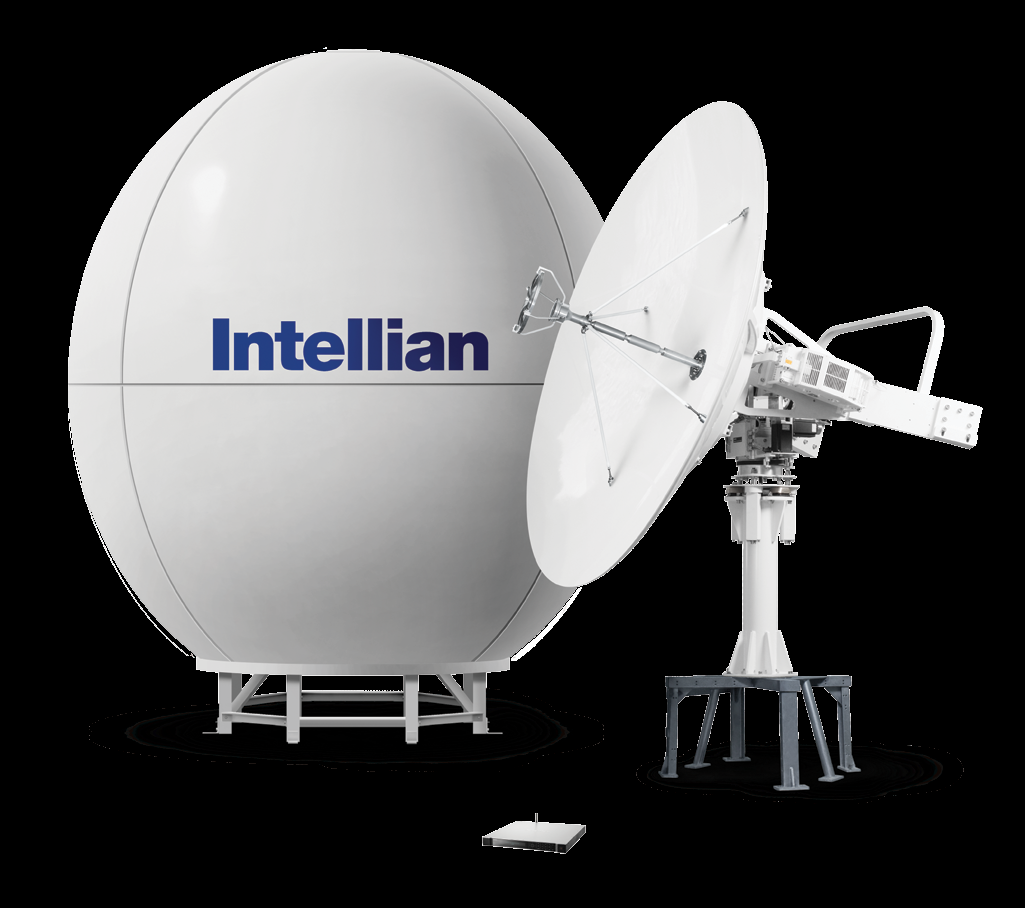

Alphatron v240K – Photo (39941201c719_S1-2 S. 1)
Photo · 39941201c719_S1-2 · S. 1
Alphatron v240K – Photo (39941201c719_S1-2 S. 1)
Photo · 39941201c719_S1-2 · S. 1
Alphatron v240K – Photo (39941201c719_S1-2 S. 2)
Photo · 39941201c719_S1-2 · S. 2
Alphatron v240K – Photo (39941201c719_S1-2 S. 2)
Photo · 39941201c719_S1-2 · S. 2
Alphatron v240K – Photo (39941201c719_S1-2 S. 2)
Photo · 39941201c719_S1-2 · S. 2
Alphatron v240K – Photo (39941201c719_S1-2 S. 2)
Photo · 39941201c719_S1-2 · S. 2
Alphatron v240K – Drawing (39941201c719_S1-2 S. 1)
Drawing · 39941201c719_S1-2 · S. 1
Alphatron v240K – Drawing (39941201c719_S1-2 S. 2)
Drawing · 39941201c719_S1-2 · S. 2

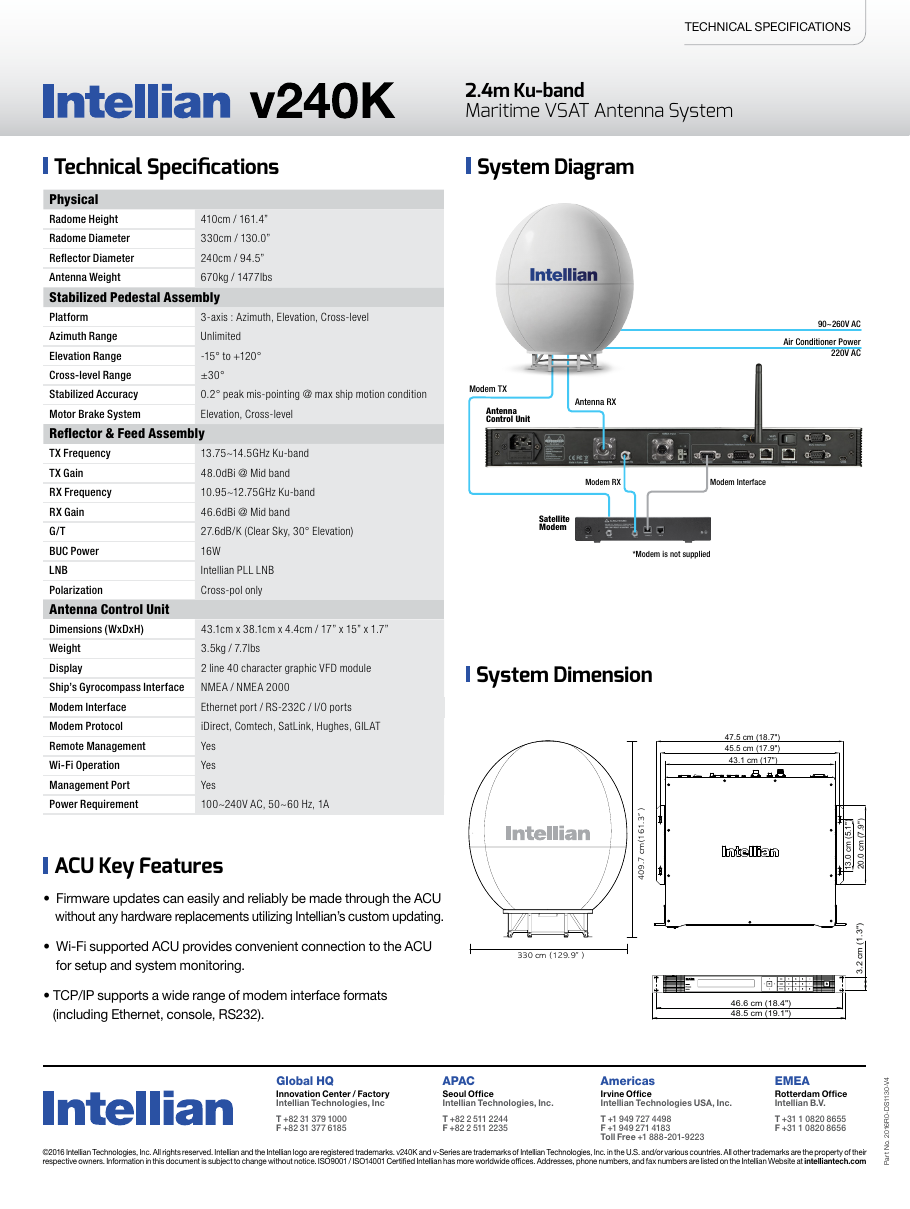

Source: Alphatron v240K datasheet, p. 1
