Mecc Alte

MC200

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum time of interruption of the supply voltage without resetting the device0 Vdc for min. 20 ms from a nominal voltage of 12 V
Rated impedance120
Operating temperature-25°C to +60°C
Operating altitude2000 m
Size247(L) x 187(H) x 70(D) mm
Weight1100g
Protection degreeIP55
Trip time accuracy±0,1% of the delay time value or ±35 ms
Measurement resolution - Mains and generators’ bars frequencies0.1Hz ± 50ppm, 35ppm/C typical.
Measurement resolution - Power Factors0.01.
Nominal power supply (Vn)12Vdc or 24 Vdc
Power supply rangeFrom 8 to 32Vdc
Starting minimum voltageVbatt=>5Vdc
Sampling rate10Khz
Resolution12 bits
Power consumption in stand-by.350mA @ 13.5 Vdc
Nominal Voltage (Vn)400Vac L-L (230Vac L-N)
Scale400V (HV - High Voltage range)
Positive relay outputmaximum capacity of 3A @30VDC
Maximum voltages applicable.MAX 300Vac in CAT.IV for measurements L-N.
Max tension in Common-ModeMax 100 Vrms.
Measurement resolution.12 bits.
Nominal Current (In)1Aac or 5Aac
Measurement range.0 - 10Vdc.
Compensation range.From -10Vdc to +6Vdc.
Frequency.10kHz.
Resolution.12 bits.
Input impedance:>470kΩ.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

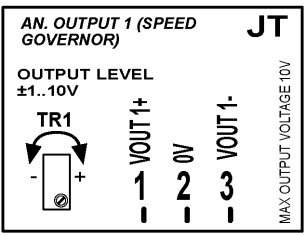

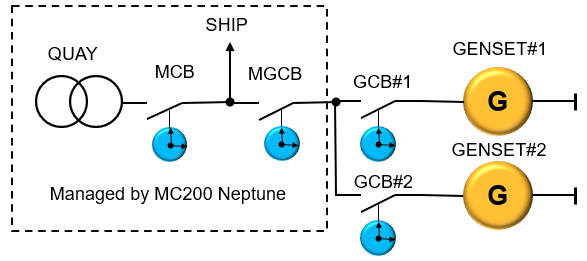

“It is required to connect the real circuit breaker feedback to all controllers to allow the full application management even in case of no CANBUS communication between MC200 Neptune and the two GC600…”

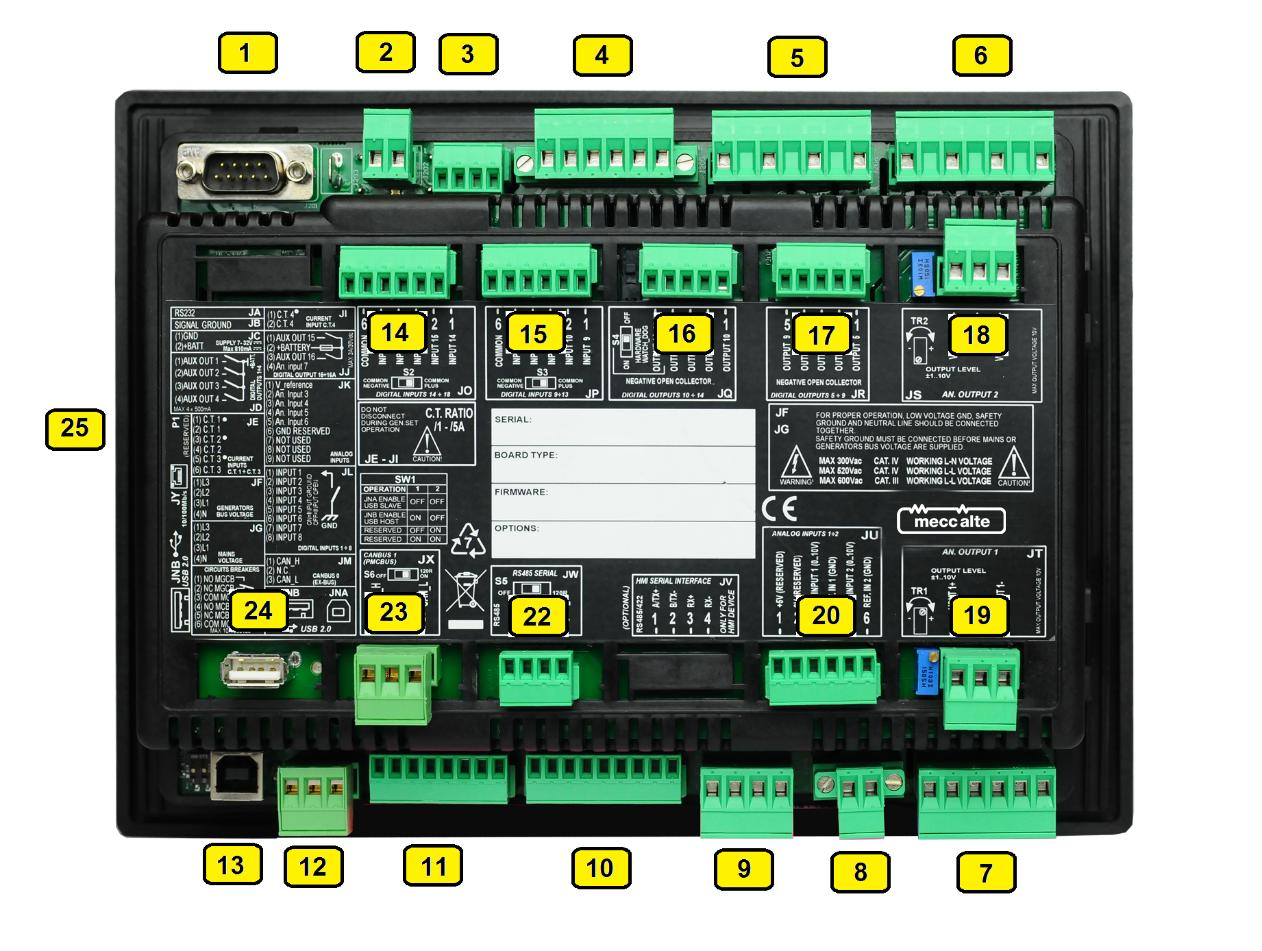

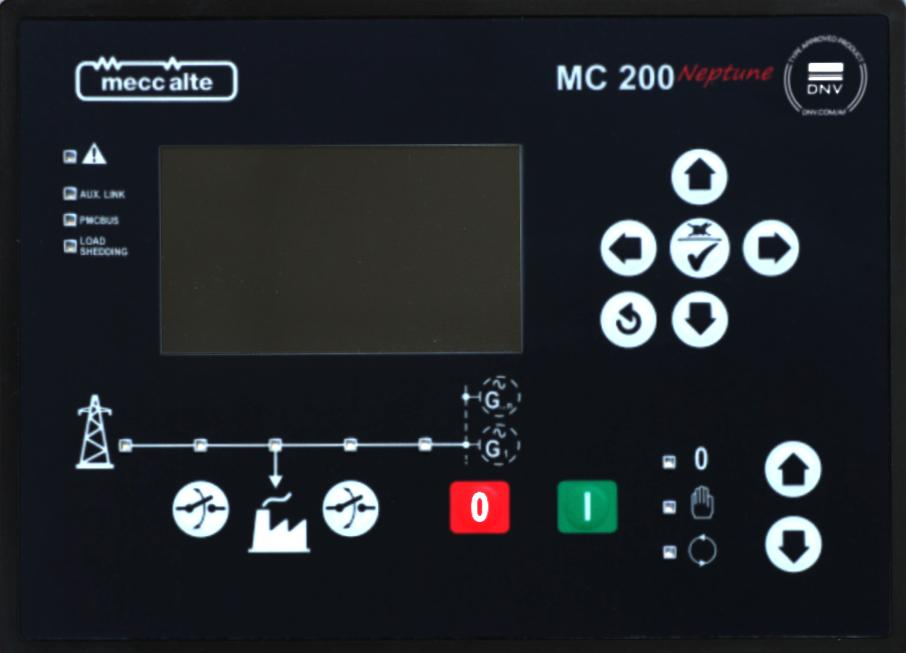

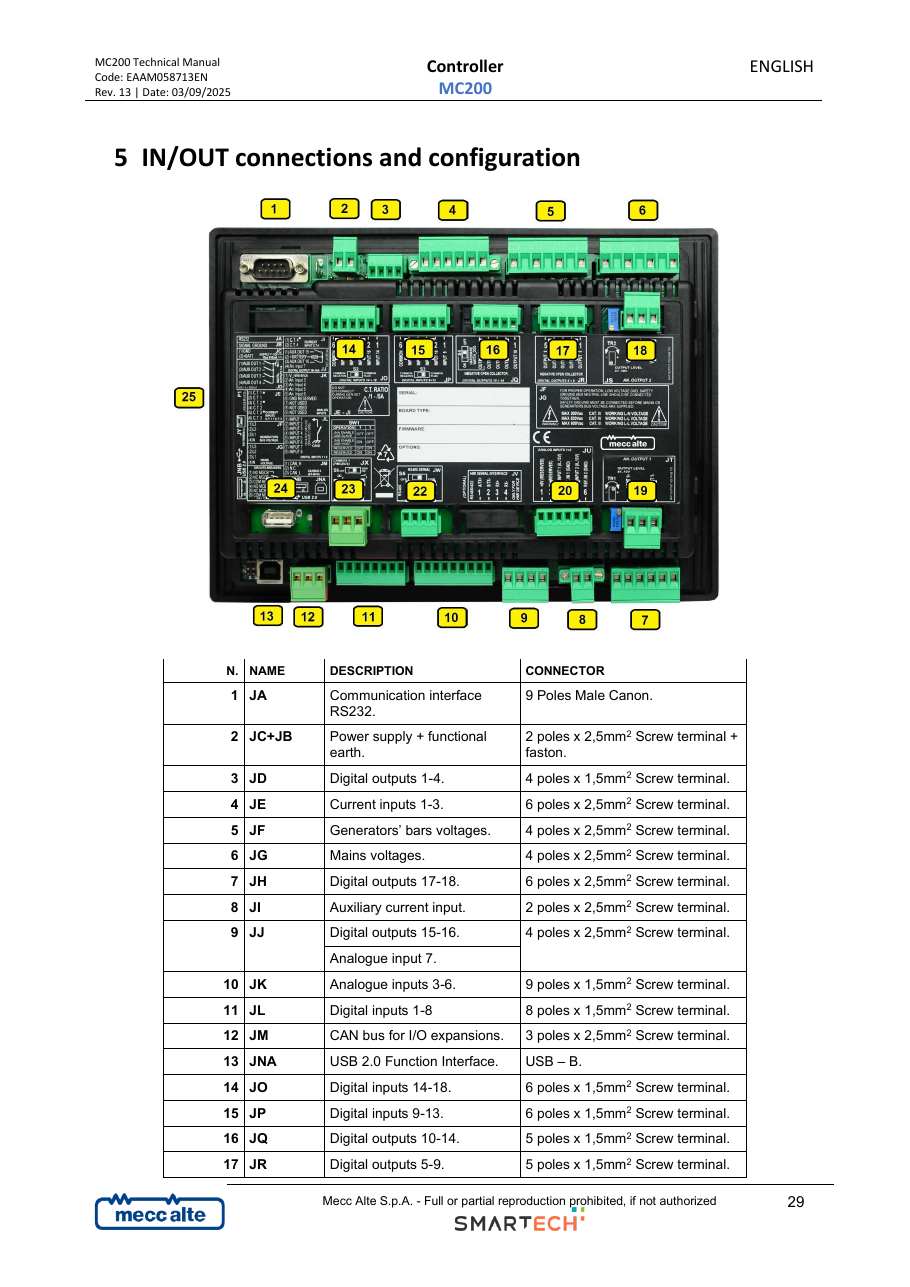

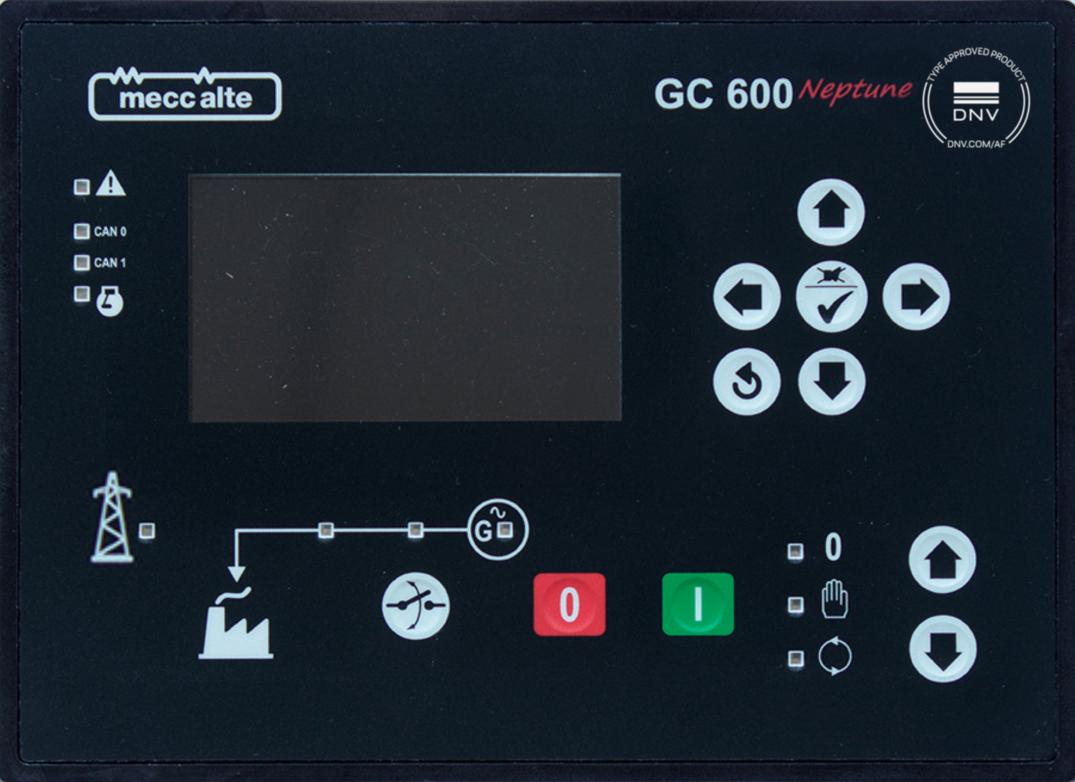

Mecc Alte MC200 – Photo (42e9b3f39fa5_S15-219 S. 15)
Photo · 42e9b3f39fa5_S15-219 · S. 15

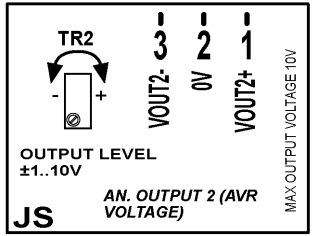

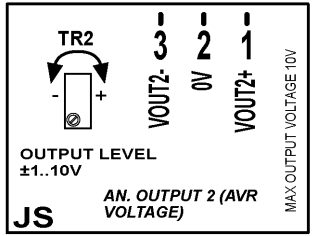

Mecc Alte MC200 – Photo (c177ccf5de7e_S5-21 S. 5)
Photo · c177ccf5de7e_S5-21 · S. 5
Mecc Alte MC200 – Photo (c177ccf5de7e_S5-21 S. 5)
Photo · c177ccf5de7e_S5-21 · S. 5
Mecc Alte MC200 – Photo (c177ccf5de7e_S5-21 S. 6)
Photo · c177ccf5de7e_S5-21 · S. 6
Mecc Alte MC200 – Photo (c177ccf5de7e_S5-21 S. 6)
Photo · c177ccf5de7e_S5-21 · S. 6
Mecc Alte MC200 – Photo (c177ccf5de7e_S5-21 S. 16)
Photo · c177ccf5de7e_S5-21 · S. 16

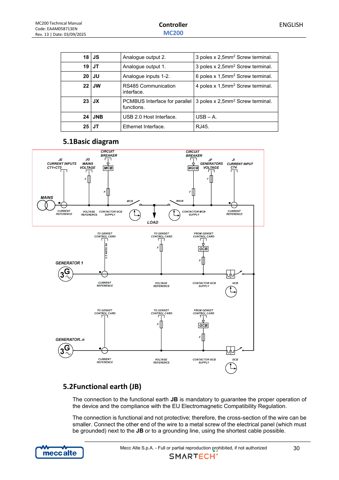

Mecc Alte MC200 – Drawing (42e9b3f39fa5_S15-219 S. 15)
Drawing · 42e9b3f39fa5_S15-219 · S. 15

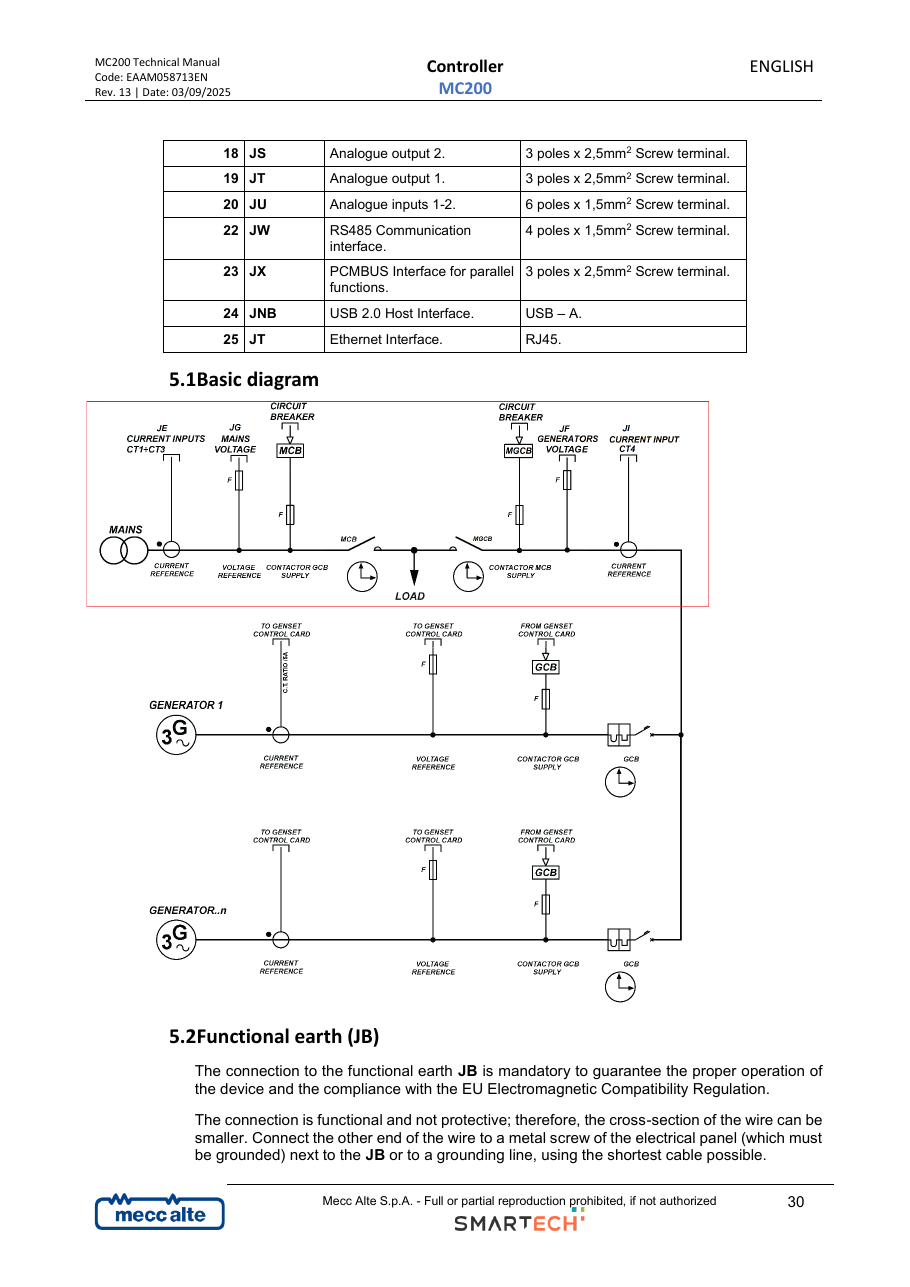

Mecc Alte MC200 – Drawing (42e9b3f39fa5_S15-219 S. 16)
