S104 250V Cable

Instrumentation Cable · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‍‍⁠​‌‌​‍‍‍⁠‌‍‌‍‍​
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage Rating150 /250V
Maximum Operating Voltage Umax300V
Temperature Rating+90°C
Minimum Bending Radius4 x Overall Diameter
StandardsNEK 606, IEC 60092-376, IEC 60092-360
Flame Retardant:IEC 60332-1-2, IEC 60332-3-22 Cat A
Fire Resistance:IEC 60331-1 Or 2
Corrosivity:IEC 60754-1 & 2, IEC 60684-2
Smoke Density:IEC 61034-1 & 2
UV Resistance:UL 1581 & 1200
Ozone Resistance:IEC 60092-360
Mineral / Hydraulic Oils & Muds Resistant:NEK 606
Impact & Cold Resistance:CSA C 22.2 N° 0.3-09 & N° 38-18
Temperature Range:IEC 60092-360
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION A fire-resistant, flame-retardant, and halogen-free collectively screened instrumentation cable designed for fixed installation in conditions where oil and gas rigs are usually working.…”

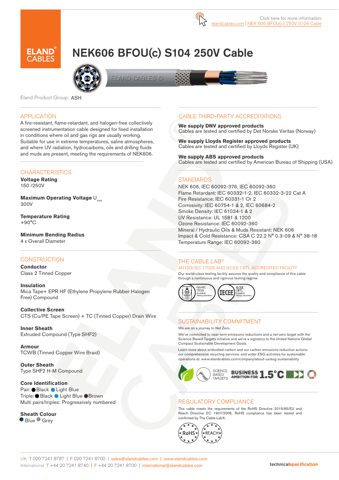

Eland Cables S104 250V Cable – Drawing (92ef6ea6ef2b_S1-1 S. 1)
Drawing · 92ef6ea6ef2b_S1-1 · S. 1
Source: NEK606 BFOU(c) S104 250V Cable Technical Datasheet | Eland Cables, p. 1
