Library› Engine Room› Pumps› Pump› DESMI GP
DESMI

GP

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

TypeGP
Wielkość27 / 34
Typ łożyska kulkowego6304 2RS1
Maks. ciśnienie robocze (bary)12000
Min. okres trwałości eksploatacyjnej w 70 oC (godziny)25
Capacity RangeUp to 50 m3/h / 220 gpm
SpeedUp to 1750 rpm
Differential Pres-Up to 16 bar / 232 psi
Viscosity RangeUp to 7500 cSt
TemperatureUp to 150°C / 302°F
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

ROTAN® GP pumps are general purpose pumps designed for clean, non-abrasive liquids. They are often used in modified versions by OEM customers.

Applications

  • Clean oil
  • Glycol
  • Vegetable oil
  • Solvents
  • Waste oil

Features

  • Flexible sealing options
  • Opposing inlet and outlet connections with oversized ports
  • Self-priming with large suction capabilities
  • Low NPSH requirements
  • Self-draining, integral safety relief valve
  • No speed reduction required in six smaller sizes
  • Complete heating/cooling jacketing available

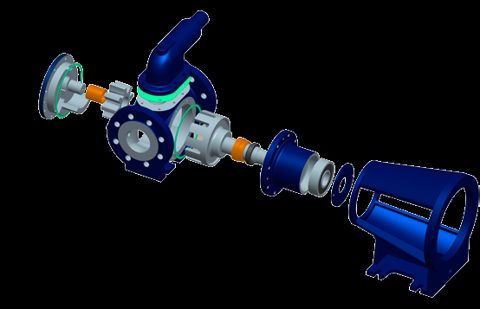

DESMI GP – Photo (18d179066085_S1-1 S. 1)
Photo · 18d179066085_S1-1 · S. 1
DESMI GP – Photo (18d179066085_S1-1 S. 1)
Photo · 18d179066085_S1-1 · S. 1

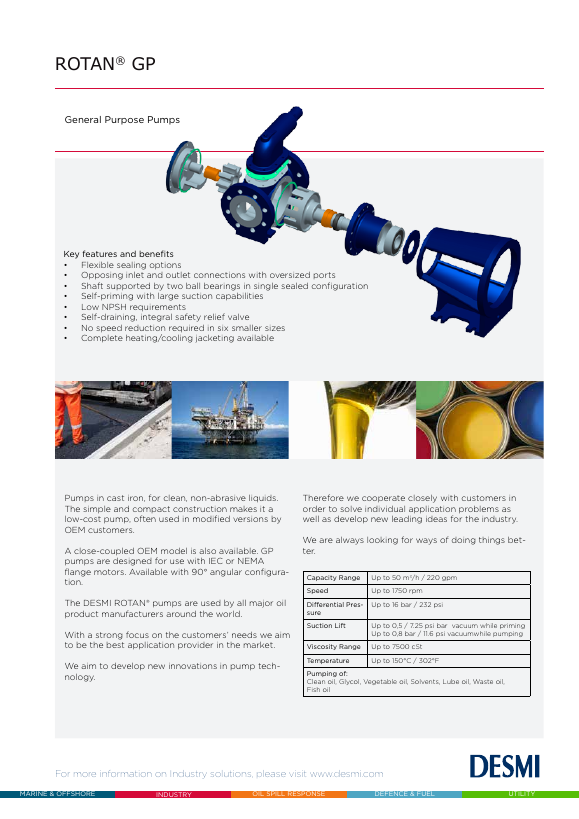

DESMI GP – Page preview (18d179066085_S1-1 S. 1)
Page preview · 18d179066085_S1-1 · S. 1
Source: DESMI GP datasheet, p. 1
