Library› Navigation› GMDSS› VSAT› Alphatron v240C
Alphatron

v240C

VSAT · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight670kg / 1477lbs
Cross-level Range±30°
TX Frequency5.85GHz~6.425GHz
TX Gain41.7dBi @ 6.14GHz (with Radome)
RX Frequency3.625GHz~4.2GHz
RX Gain37.7dBi @ 3.91GHz (with Radome)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Featuring patented technology available only on select Intellian models, the v240C allows you to effortlessly and automatically switch between linear and circular c-band polarization, wherever you…”

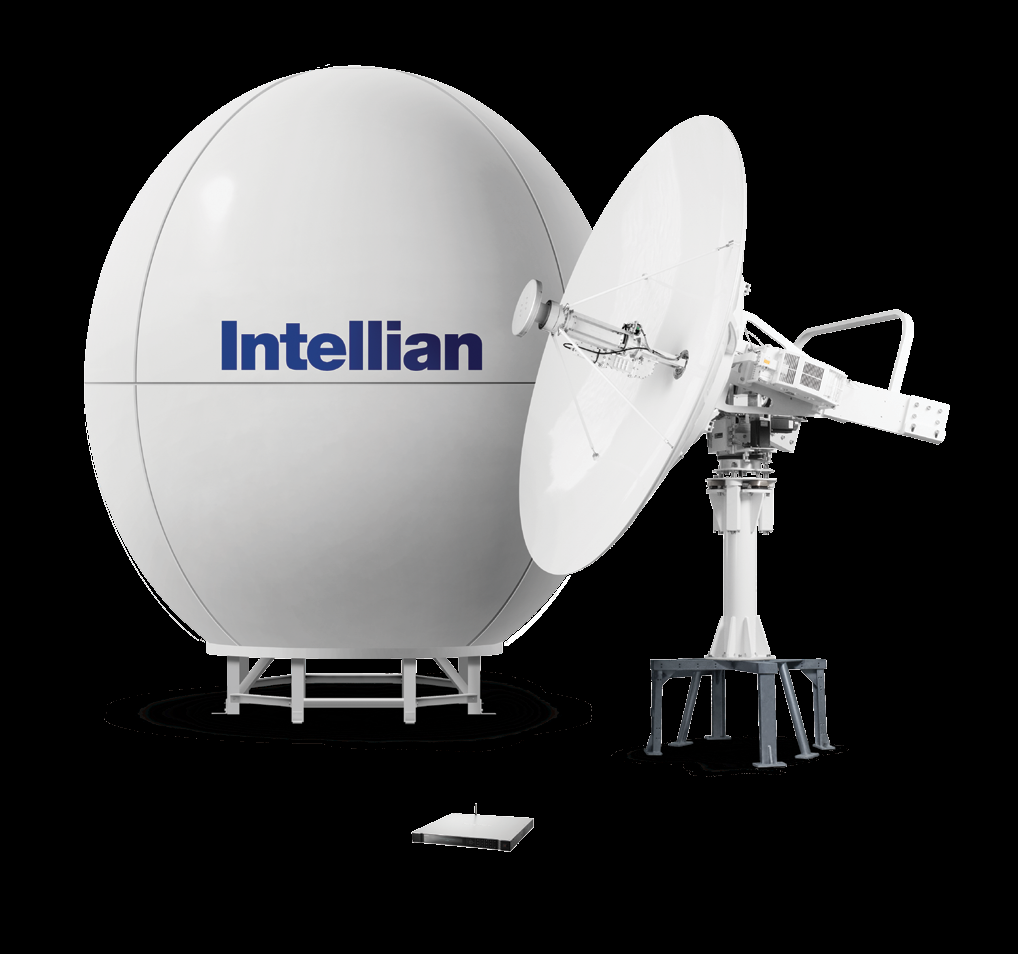

Alphatron v240C – Photo (d3682e544d56_S1-2 S. 1)
Photo · d3682e544d56_S1-2 · S. 1

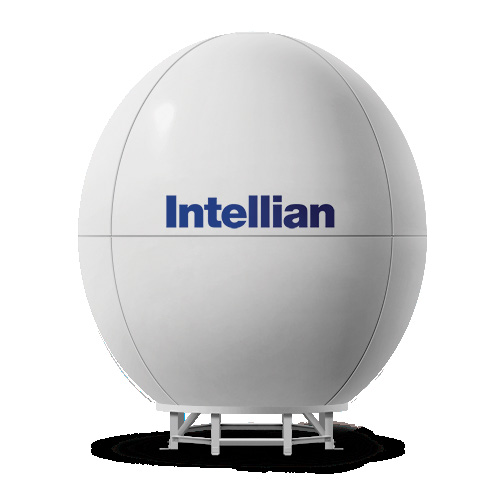

Alphatron v240C – Photo (d3682e544d56_S1-2 S. 1)
Photo · d3682e544d56_S1-2 · S. 1

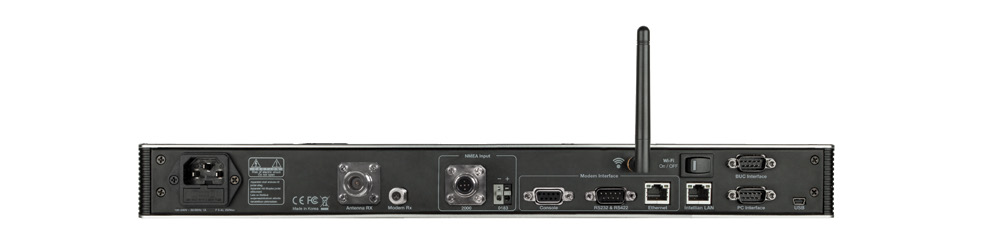

Alphatron v240C – Photo (d3682e544d56_S1-2 S. 2)
Photo · d3682e544d56_S1-2 · S. 2
Alphatron v240C – Photo (d3682e544d56_S1-2 S. 2)
Photo · d3682e544d56_S1-2 · S. 2
Alphatron v240C – Photo (d3682e544d56_S1-2 S. 2)
Photo · d3682e544d56_S1-2 · S. 2
Alphatron v240C – Photo (d3682e544d56_S1-2 S. 2)
Photo · d3682e544d56_S1-2 · S. 2

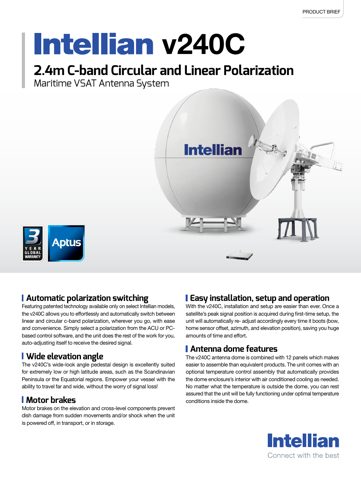

Alphatron v240C – Drawing (d3682e544d56_S1-2 S. 1)
Drawing · d3682e544d56_S1-2 · S. 1

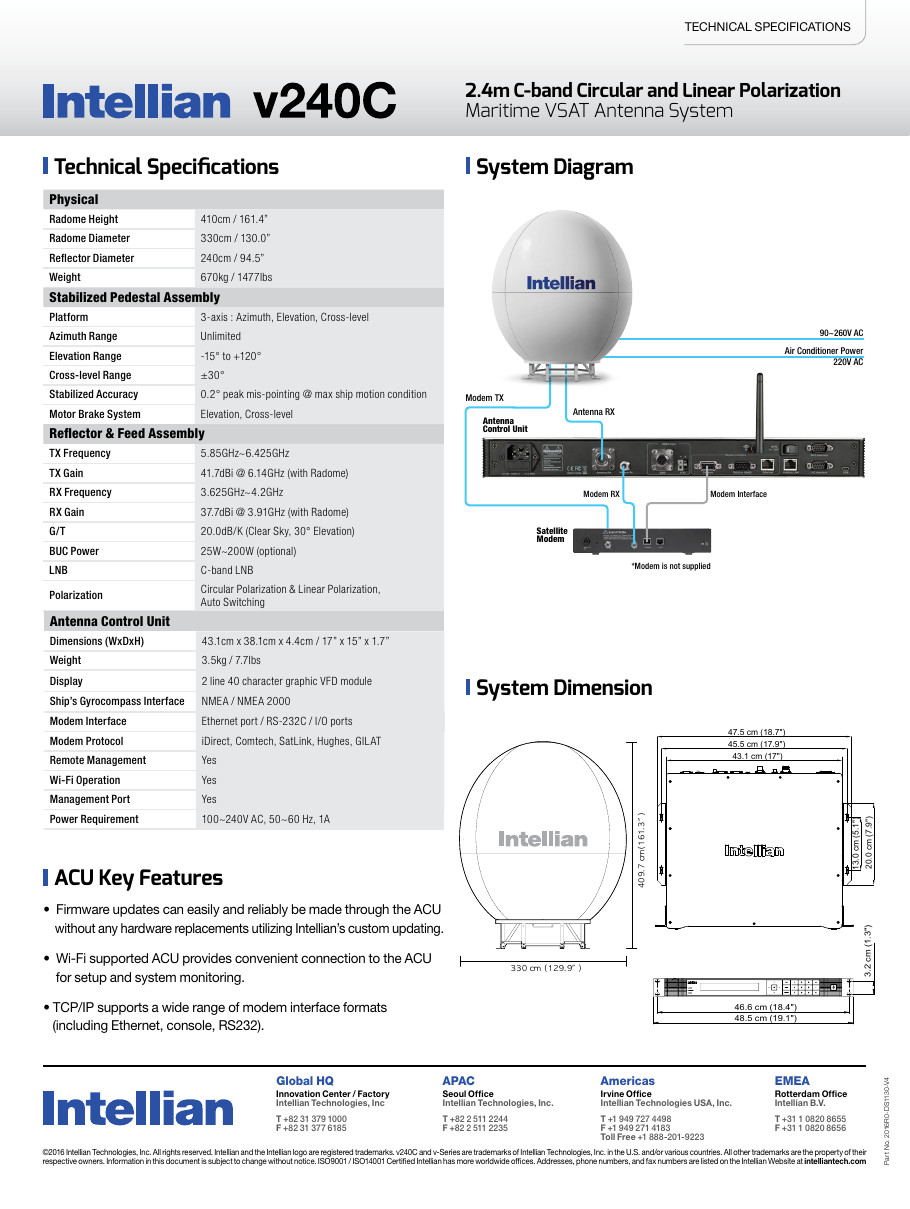

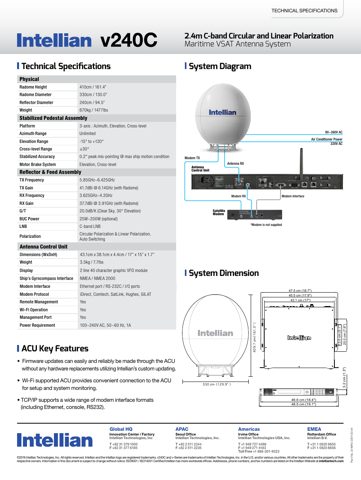

Alphatron v240C – Drawing (d3682e544d56_S1-2 S. 2)
Drawing · d3682e544d56_S1-2 · S. 2
Source: Alphatron v240C datasheet, p. 1
