Library› Navigation› GMDSS› VHF Radio› Alphatron JHS-207
Alphatron

JHS-207

VHF Radio · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Battery capacity12 hours¹
Frequency Band156-162.5 MHz
Ingress protection ratingIP67
Channel spacing25 kHz
Maximum usable sensitivity< 1 μ V for 20dB SINAD
Adjacent channel rejection> 70dB
Blocking> 90dB
Spurious response> 70dB
Inter-modulation rejection> 68dB
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Battery The large-capacity battery pack enables long-time operation of 12 hours¹ so you can use it with confidence for a prolonged time even in an emergency. ¹Ratio during sending 10: receiving 10:…”

Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 6)
Photo · 59e2a5e211dc_S3-101 · S. 6

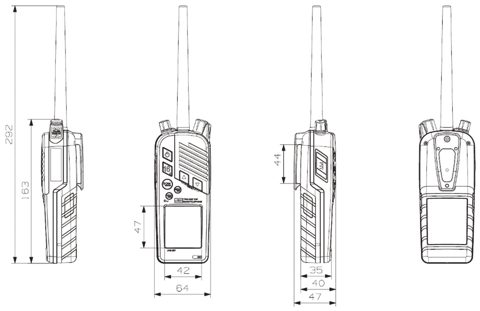

Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 23)
Photo · 59e2a5e211dc_S3-101 · S. 23
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Alphatron JHS-207 – Photo (59e2a5e211dc_S3-101 S. 24)
Photo · 59e2a5e211dc_S3-101 · S. 24
Source: alphatron JHS-207 datasheet, p. 1
