Library› Engine Room› Tank Level & Measurement› Tank Level Gauging› Endress+Hauser NRF560
Endress+Hauser

NRF560

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Display (LCD)2 lines. 16 digits, illuminated
Power supplyHigh Voltage: AC 85… 264V 50/60Hz Low Voltage: AC 20… 55V 50/60Hz DC 20... 62V
Power consumptionMaximum 10 VA
Range of ambient temperature–20…60°C (standard)
Note!The LCD could not be seen below -10°C
WeightAppox. 6.5kg.
ProtectionIP67 with closed housing and cable glands of same protection type.
Electromagnetic compatibilityImmunity and emission to EN 50081-1, EN 50082-2
MEASURES WIRE DRUM WIRE300.00mm
CIRC. WEIGHT1.40 g/10m
DISPLACER WEIGHT200.0g
DISPLACER VOLUME60.0 ml
Volume25.0ml
DELAY TOLERANCE1.0 ml
DRUM CORRECTION COUNT2 x 100 ms
DISPL. HUNT.0.00 mm/m
High Voltage:85-264 VAC 50/60 Hz
Low Voltage:20-62 VDC / 20-55 VAC
Display(lcd)4 lines. 128 x 64 (pixels)
Ambient temperature-20...+60°C(-4...+140°F) (converter housing)
Ingress protectionIP67
Protection class0 Weather proof; IP67 NEMA 4X
Power Supply3 85-264 VAC, 50/60Hz, 25VA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Promonitor NRF560 is a multidrop local HART® device with a 2-line, 16-digit illuminated LCD display. It features 3 visual operating elements for matrix function selection and supports various power supply options.

Features

  • Touch control
  • Cable entry*
Source: Endress+Hauser NRF560 datasheet, p. 7

Standards

  • EN 50081-1
  • EN 50082-2

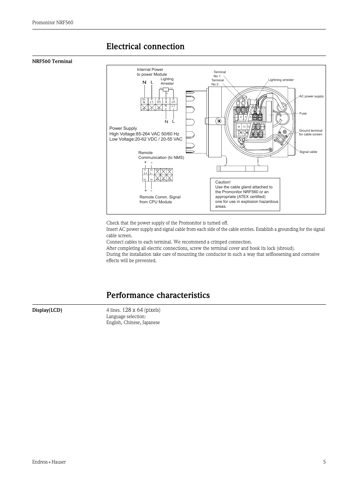

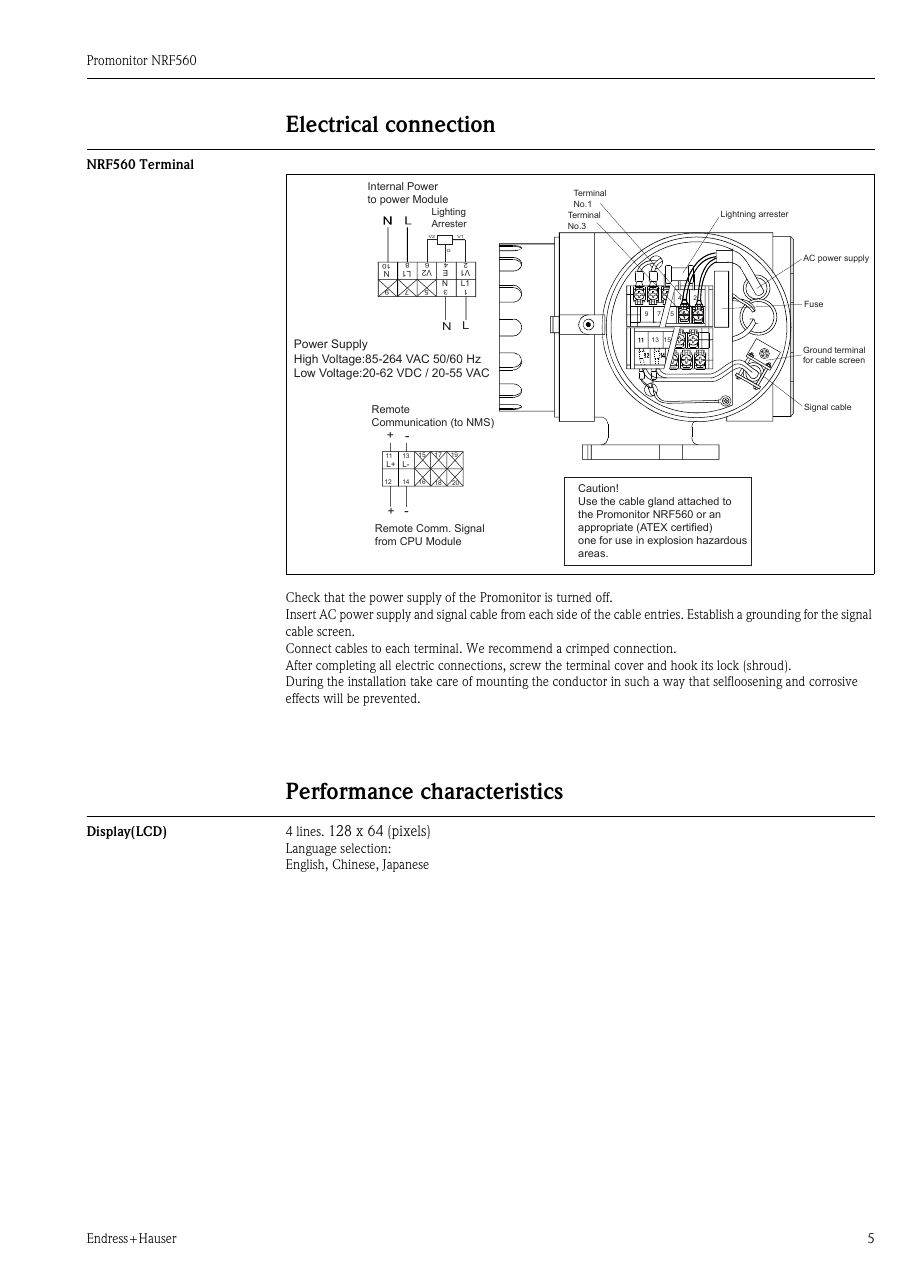

Endress+Hauser NRF560 – Drawing (ace65c590d20_S3-10 S. 3)
Drawing · ace65c590d20_S3-10 · S. 3
Endress+Hauser NRF560 – Drawing (ace65c590d20_S3-10 S. 4)
Drawing · ace65c590d20_S3-10 · S. 4
Endress+Hauser NRF560 – Drawing (ace65c590d20_S3-10 S. 5)
Drawing · ace65c590d20_S3-10 · S. 5

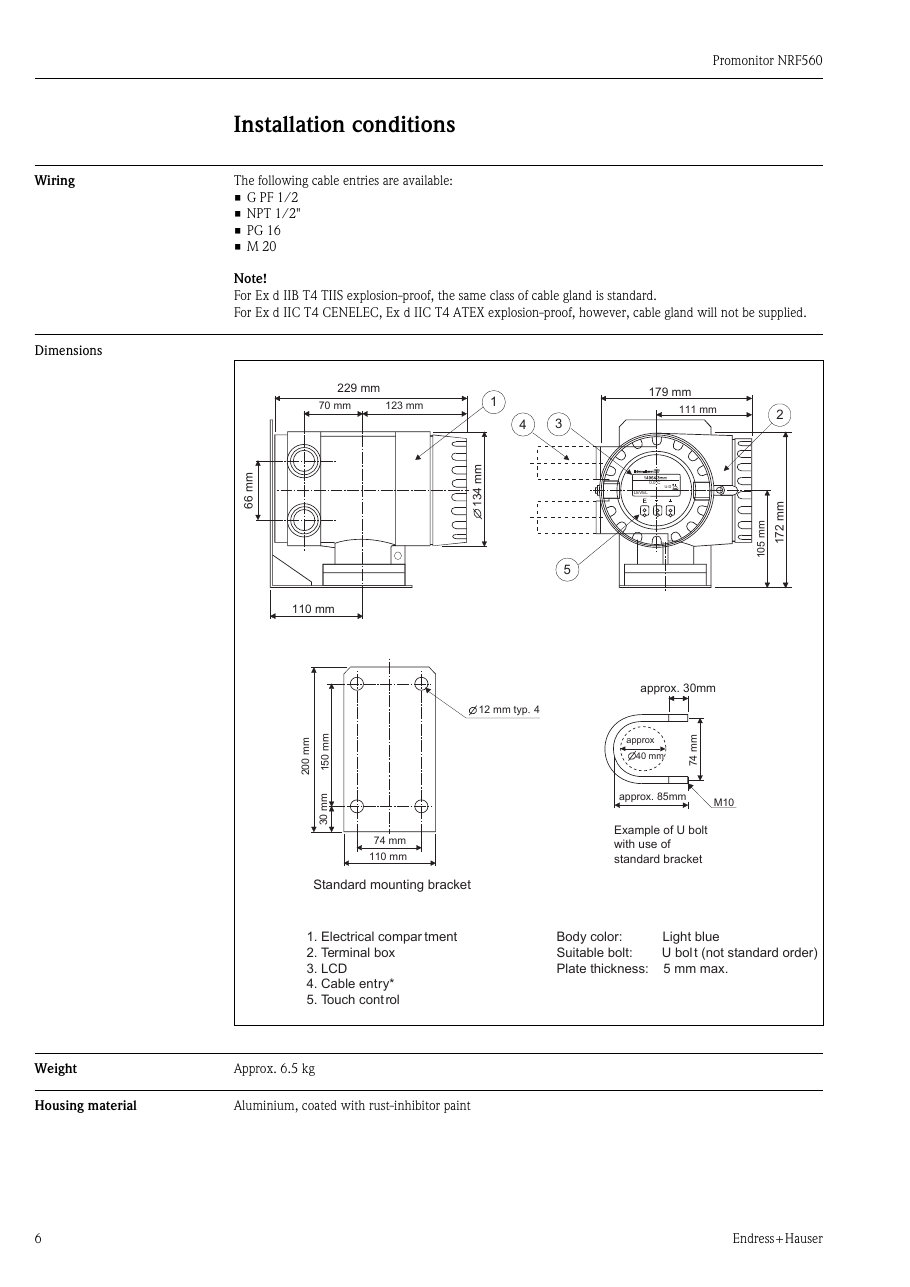

Endress+Hauser NRF560 – Page preview (ace65c590d20_S3-10 S. 6)
Page preview · ace65c590d20_S3-10 · S. 6

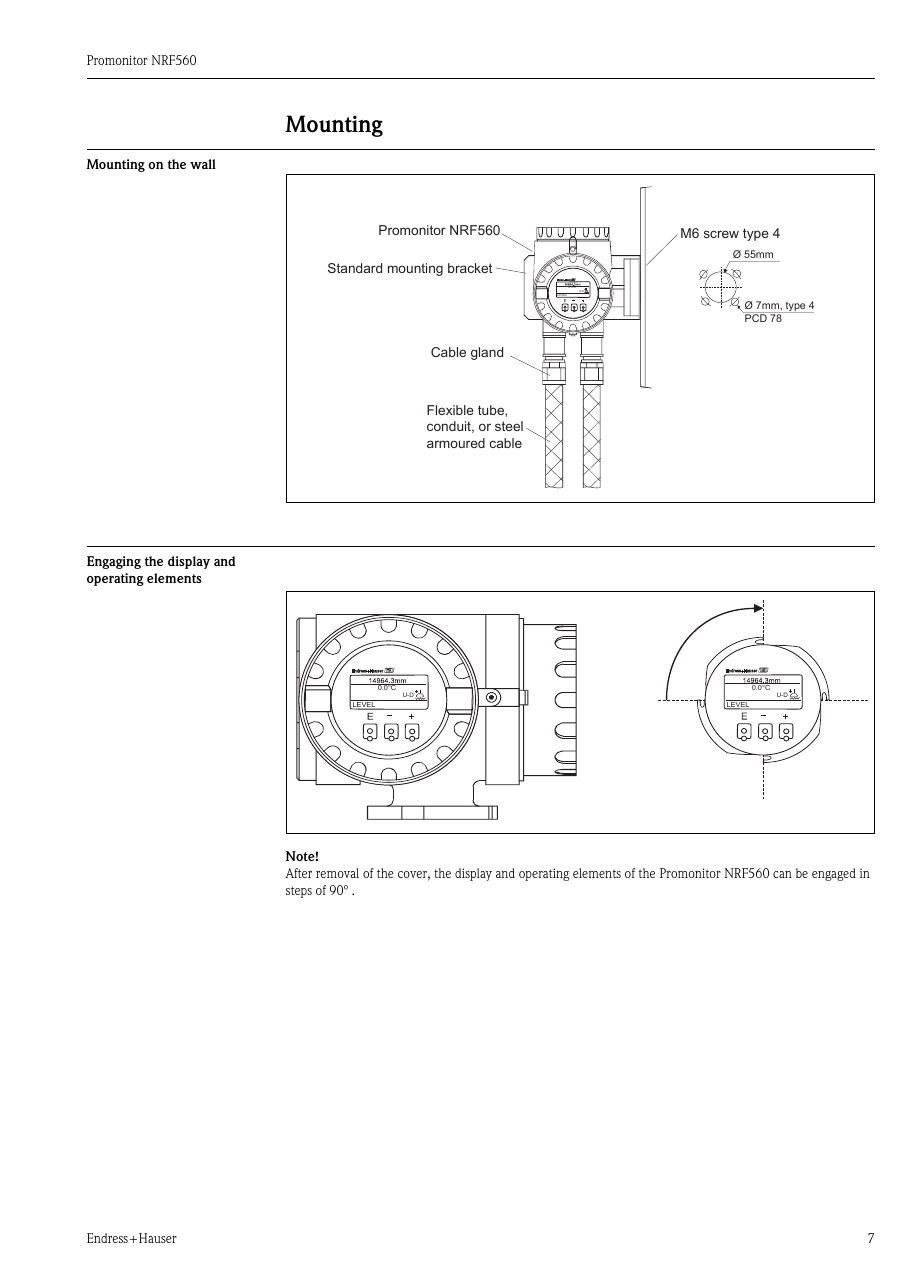

Endress+Hauser NRF560 – Page preview (ace65c590d20_S3-10 S. 7)
Page preview · ace65c590d20_S3-10 · S. 7

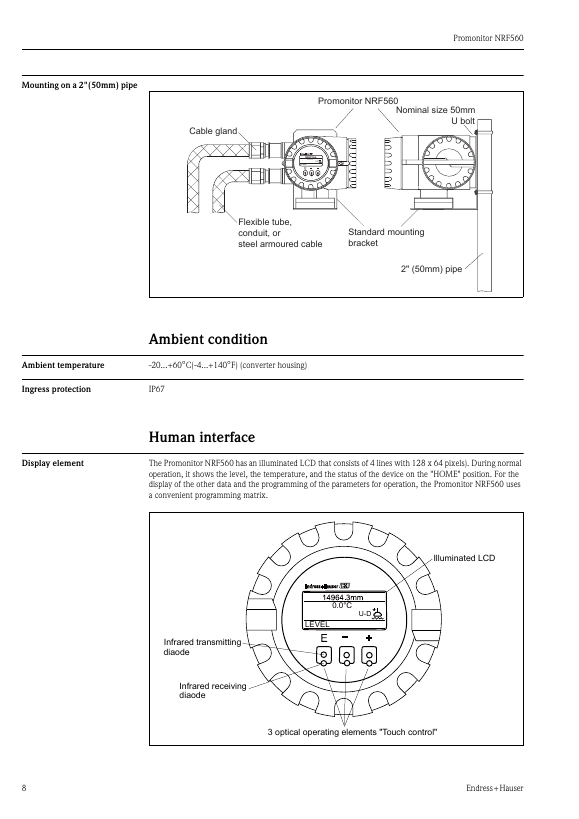

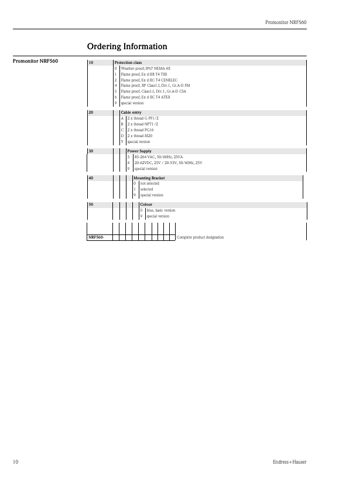

Endress+Hauser NRF560 – Page preview (ace65c590d20_S3-10 S. 8)
Page preview · ace65c590d20_S3-10 · S. 8

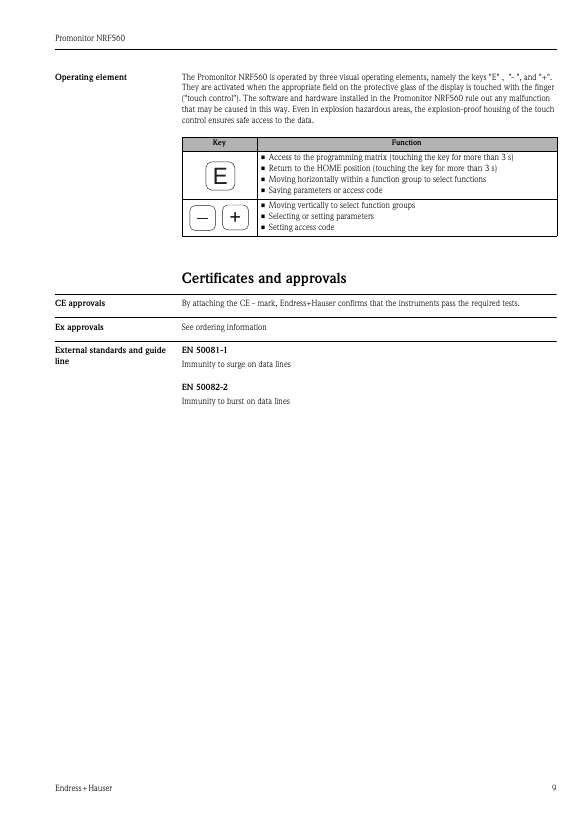

Endress+Hauser NRF560 – Page preview (d730e6a6291e_S6-19 S. 6)
Page preview · d730e6a6291e_S6-19 · S. 6
Source: Endress+Hauser NRF560 datasheet, p. 6
