Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser M FMR244
Endress+Hauser

M FMR244

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Arbeitsfrequenzca. 26 GHz
maximale abgestrahlte Pulsenergie1 mW
mittlere Leistung1 µW
Measuring rangemax. 20
Ip65
Betriebsspannung16...36 V
Ausgangsspannung4...20 mAV DC
Max. Umgebungstemperatur70 °C
Max. Prozesstemperatur85 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot M FMR244 with PROFIBUS PA is a device for measuring the level of liquids.

Applications

  • liquid level measurement
  • industrial process control
Source: endresshauser M FMR244 datasheet, p. 105

Features

  • wide temperature range
Source: endresshauser M FMR244 datasheet, p. 14
Endress+Hauser M FMR244 – Drawing (94f4161eb8d8_S33-107 S. 33)
Drawing · 94f4161eb8d8_S33-107 · S. 33
Endress+Hauser M FMR244 – Drawing (94f4161eb8d8_S33-107 S. 34)
Drawing · 94f4161eb8d8_S33-107 · S. 34
Endress+Hauser M FMR244 – Drawing (94f4161eb8d8_S33-107 S. 35)
Drawing · 94f4161eb8d8_S33-107 · S. 35
Endress+Hauser M FMR244 – Page preview (94f4161eb8d8_S33-107 S. 36)
Page preview · 94f4161eb8d8_S33-107 · S. 36
Endress+Hauser M FMR244 – Page preview (94f4161eb8d8_S33-107 S. 37)
Page preview · 94f4161eb8d8_S33-107 · S. 37
Endress+Hauser M FMR244 – Page preview (94f4161eb8d8_S33-107 S. 38)
Page preview · 94f4161eb8d8_S33-107 · S. 38

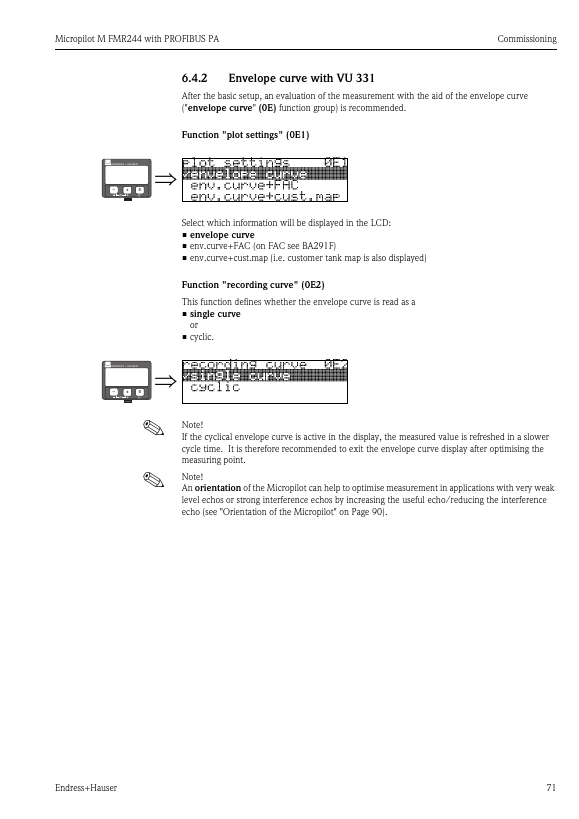

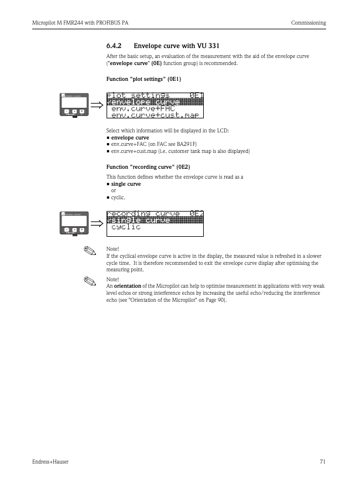

Endress+Hauser M FMR244 – Page preview (94f4161eb8d8_S33-107 S. 39)
Page preview · 94f4161eb8d8_S33-107 · S. 39
Source: endresshauser M FMR244 datasheet, p. 33
