Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser FMR531
Endress+Hauser

FMR531

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Outputpassive 4…20 mA
Antenna length [mm / inch]390 / 15
H [mm]< 100 / < 4
Basic weight7.1 kg
Additional weight0.4 kg
Blocking distance (BD)11 m/40"
Length of horn540 mm/21"
Cable entryGland M20
Antennenlänge390, 540 mm
H< 100, < 250 mm
Mediumberührte Teile1.4435 / SS 316 L / PTFE (TFM 1600)
L2100 mm / 250 mm
Ptfeantistatisch (TFM 1600)
Flansche nach EN 1092-1passend zu DIN2527
Flansche nach ANSI B16.5für 150 lbs (für 300 lbs)
Grundgewicht7,1 kg
Mehrgewicht0,4 kg
Weight5 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Micropilot S radar sensor for optimal installation in tanks.

Applications

  • non-hazardous area
  • hazardous area
Source: endresshauser FMR531 datasheet, p. 46

Features

  • marker aligned towards tank wall
  • adjustable housing for easy access
  • use of spring washers to minimize temperature influences
  • rod antenna must extend below nozzle
  • vertical alignment required for rod antenna

Options

  • PTFE antistatic antenna
  • different process connection options
Source: endresshauser FMR531 datasheet, p. 46

Standards

  • EN 1092-1
  • ANSI B16.5
  • JIS B2220
Source: endresshauser FMR531 datasheet, p. 29

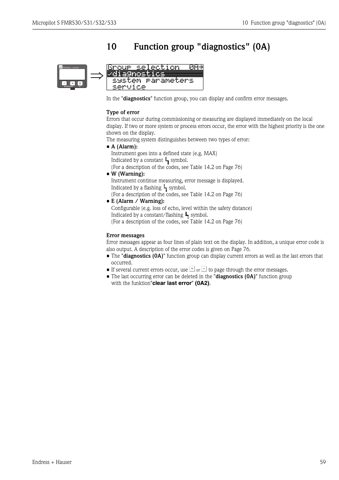

Endress+Hauser FMR531 – Drawing (6c4f7b4e4b00_S30-83 S. 30)
Drawing · 6c4f7b4e4b00_S30-83 · S. 30

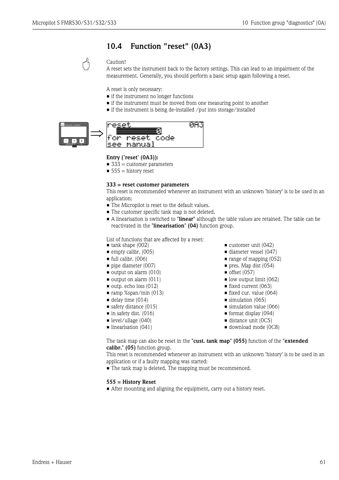

Endress+Hauser FMR531 – Drawing (6c4f7b4e4b00_S30-83 S. 32)
Drawing · 6c4f7b4e4b00_S30-83 · S. 32
Endress+Hauser FMR531 – Drawing (6c4f7b4e4b00_S30-83 S. 33)
Drawing · 6c4f7b4e4b00_S30-83 · S. 33
Endress+Hauser FMR531 – Page preview (6c4f7b4e4b00_S30-83 S. 31)
Page preview · 6c4f7b4e4b00_S30-83 · S. 31
Endress+Hauser FMR531 – Page preview (6c4f7b4e4b00_S30-83 S. 34)
Page preview · 6c4f7b4e4b00_S30-83 · S. 34

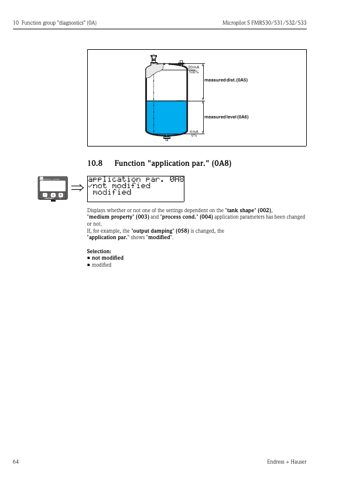

Endress+Hauser FMR531 – Page preview (6c4f7b4e4b00_S30-83 S. 35)
Page preview · 6c4f7b4e4b00_S30-83 · S. 35

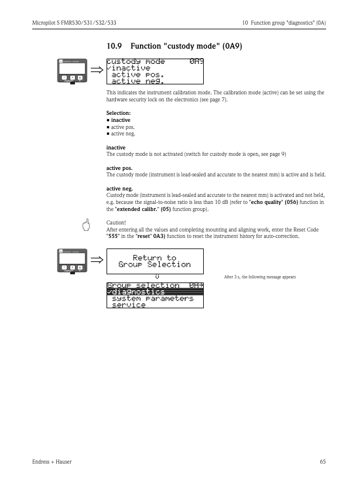

Endress+Hauser FMR531 – Page preview (6c4f7b4e4b00_S30-83 S. 36)
Page preview · 6c4f7b4e4b00_S30-83 · S. 36
Source: endresshauser FMR531 datasheet, p. 21
