Alphatron

NKE-2632/A

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Horizontal beam width2.7°
Vertical beam width25°
Side lobe levelbelow -26dB (within ±10°)
RevolutionApprox. 24 rpm
Power Supply for Motor100 to 115VAC, 50/60Hz 1φ or220 to 240VAC, 50/60Hz 1φ
Transmission outputPeak-to-peak value 250W ±50% (Average value 5.8W or lower)
Overall Noise Figure4.0dB (typical)
Intermediate Frequency63MHz
Band Width30MHz
GainMore than 28dB
Horizontal beam width:2.7°
Vertical beam width:25°
Side lobe level:below -26dB (within ±10°)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

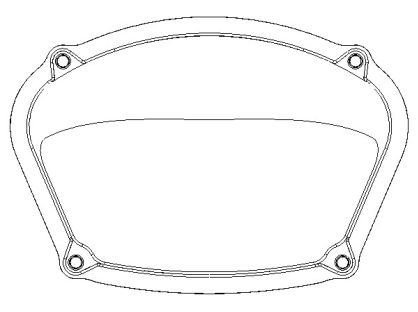

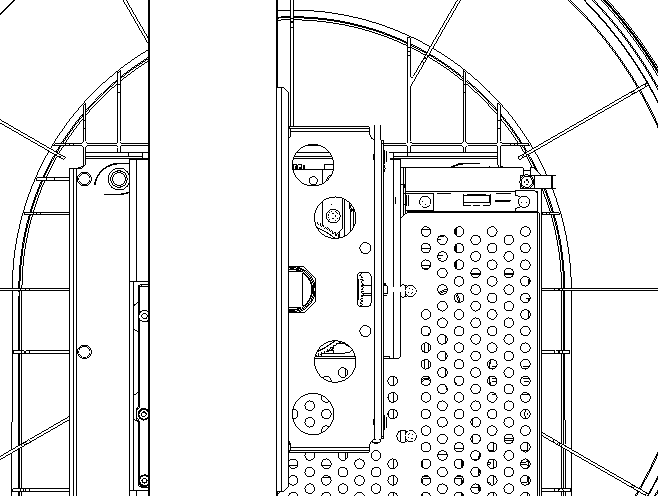

This page outlines the radar antenna model NKE-2632/A, providing a technical drawing.

Applications

  • marine radar systems
  • antenna heating control
Source: A datasheet, p. 306

Features

  • Horizontal beam width of 2.7°
  • Vertical beam width of 25°
  • Solid State Transmitter
  • Built-in Performance Monitor
  • Circulator + Diode Limiter Duplexer
Source: A datasheet, p. 576

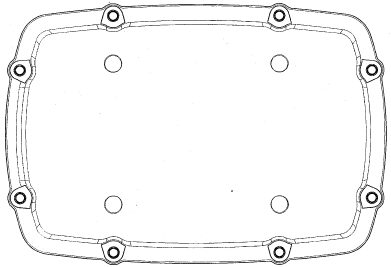

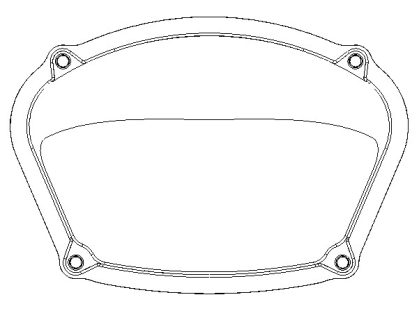

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 371)
Photo · 39df3acd5cb1_S95-576 · S. 371

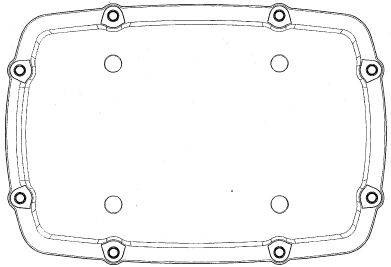

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 371)
Photo · 39df3acd5cb1_S95-576 · S. 371

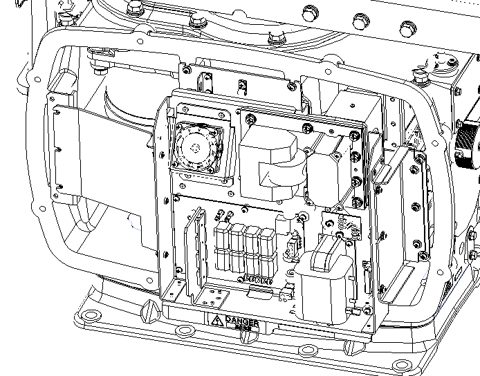

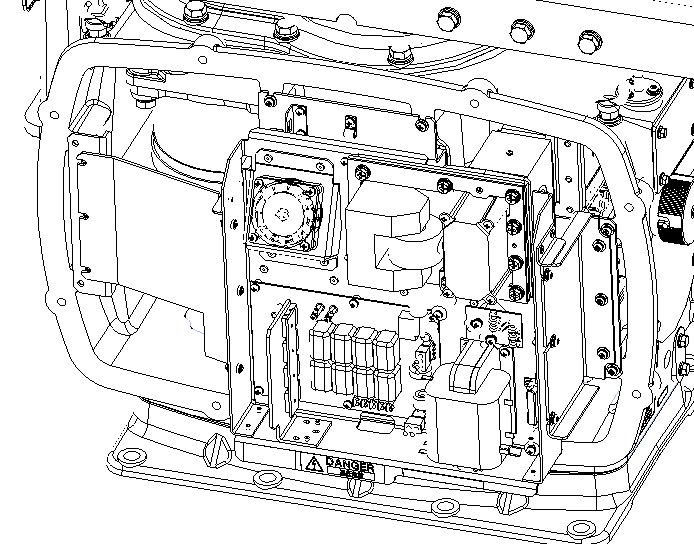

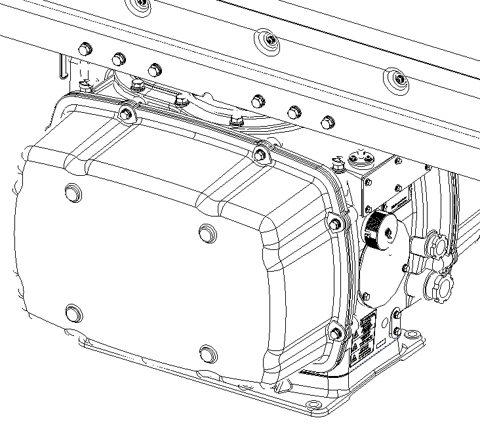

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 385)
Photo · 39df3acd5cb1_S95-576 · S. 385
Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 385)
Photo · 39df3acd5cb1_S95-576 · S. 385

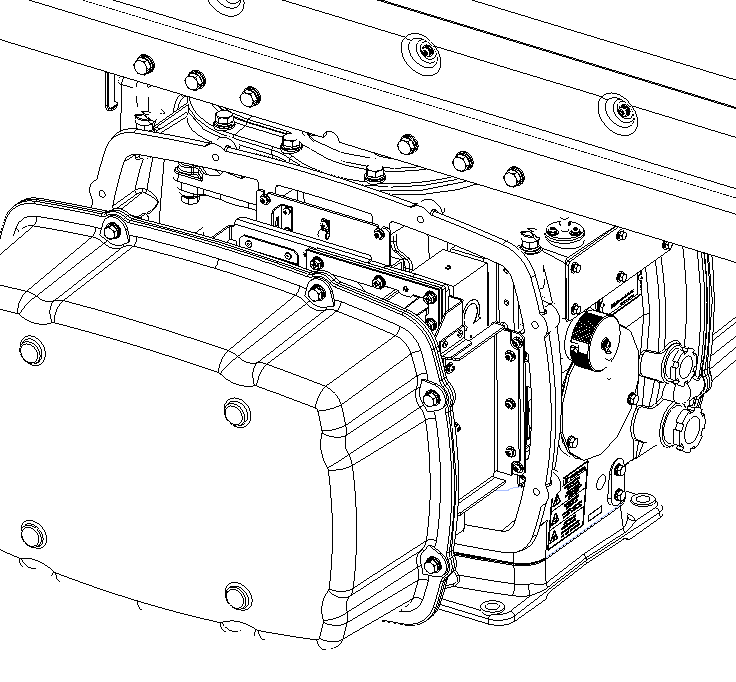

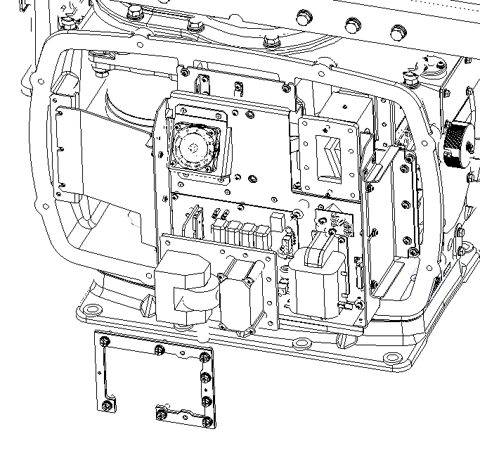

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 386)
Photo · 39df3acd5cb1_S95-576 · S. 386
Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 386)
Photo · 39df3acd5cb1_S95-576 · S. 386

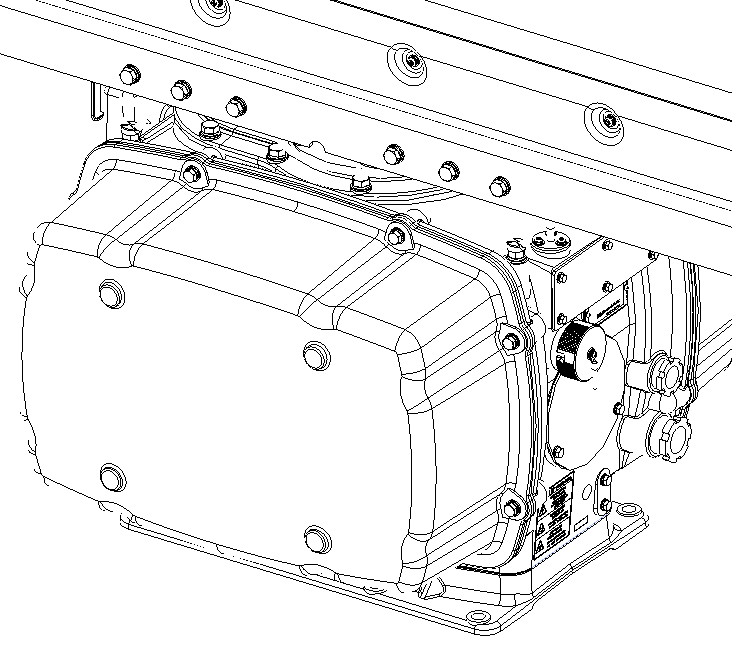

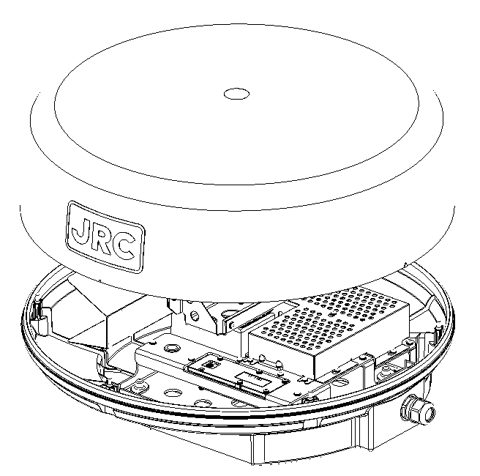

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 387)
Photo · 39df3acd5cb1_S95-576 · S. 387

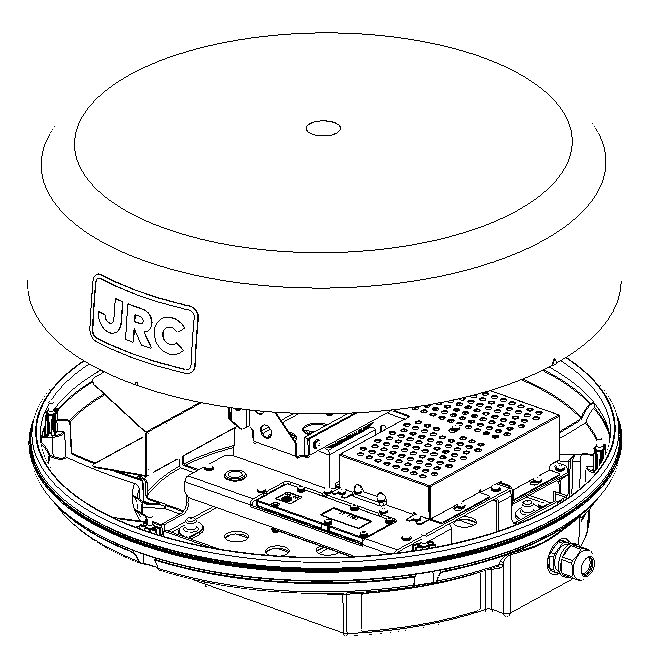

Alphatron NKE-2632/A – Photo (39df3acd5cb1_S95-576 S. 388)
Photo · 39df3acd5cb1_S95-576 · S. 388
Source: A datasheet, p. 67
