Library› Navigation› Radar & ECDIS› Radar› Alphatron JMR-5425-6XH
Alphatron

JMR-5425-6XH

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

AntennaNKE-2255-6HS
MonitorNJU-97
Screen19inch LCD (Effective diameter of RADAR: more than 250mm) / 26/27inch LCD(Effect
Range ResolutionLess than 30m
Minimum Detection RangeLess than 40m
Ambient Condition - Other Units-15°C to +55°C
Power Supply Input24VDC
Power Supply Voltage FluctuationDC input +30%/-10%
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The JMR-5425-6XH is a colour raster scan radar with a 19-inch LCD screen. It features a range scale of 0.125 to 96 NM and a minimum detection range of less than 40m.

Features

  • Colour Raster Scan
  • 19-inch LCD screen
  • Range Scale: 0.125 to 96 NM
  • Minimum Detection Range: Less than 40m
  • Bearing Accuracy: Less than 1°

Options

  • Scanner Unit Deicing Heater
  • Trackball/Keyboard Operation Unit

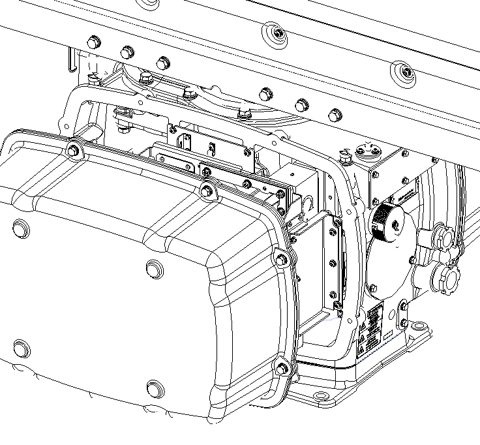

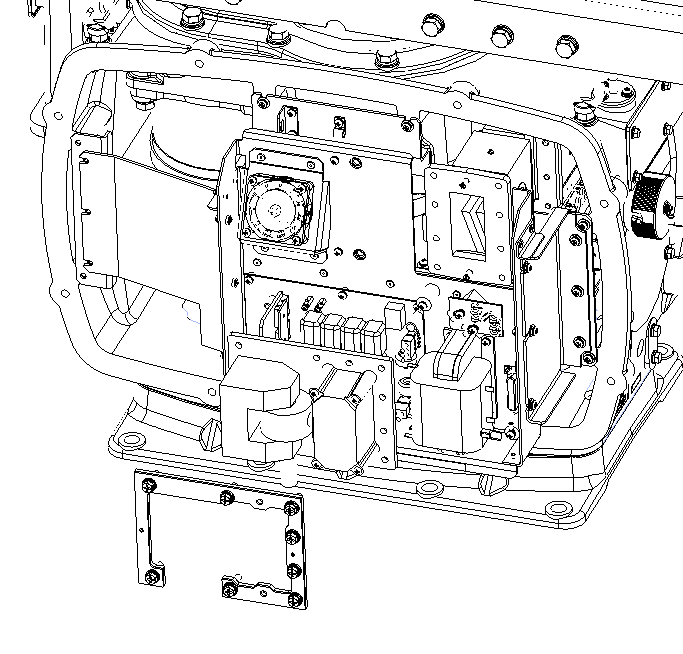

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 420)
Photo · 7c275fb8bc20_S60-692 · S. 420

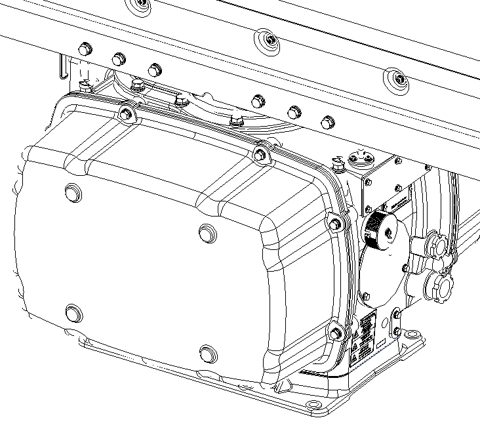

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 420)
Photo · 7c275fb8bc20_S60-692 · S. 420

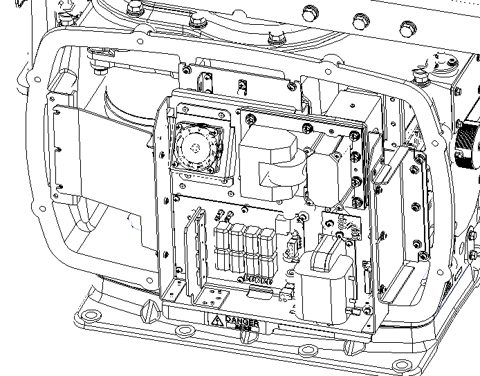

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 421)
Photo · 7c275fb8bc20_S60-692 · S. 421
Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 421)
Photo · 7c275fb8bc20_S60-692 · S. 421

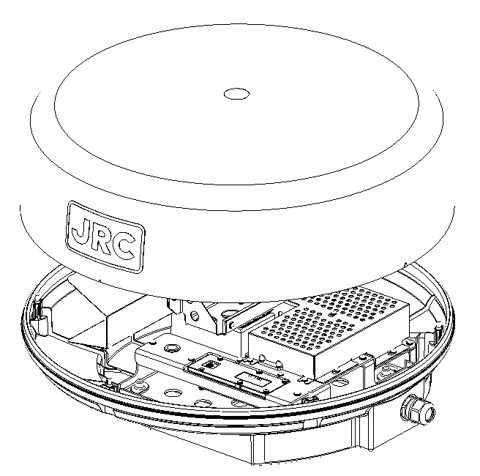

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 422)
Photo · 7c275fb8bc20_S60-692 · S. 422

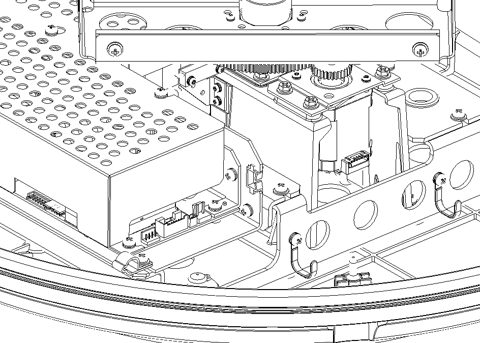

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 423)
Photo · 7c275fb8bc20_S60-692 · S. 423
Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 423)
Photo · 7c275fb8bc20_S60-692 · S. 423

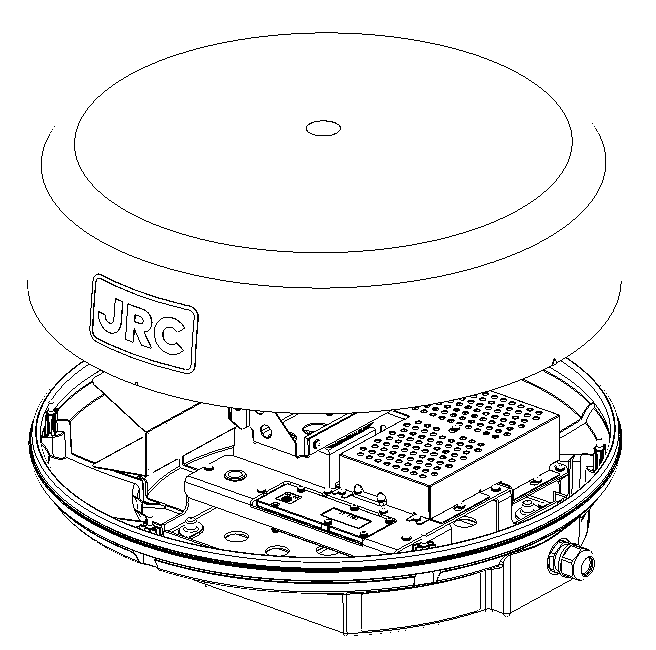

Alphatron JMR-5425-6XH – Photo (7c275fb8bc20_S60-692 S. 424)
Photo · 7c275fb8bc20_S60-692 · S. 424
Source: alphatron JMR-5425-6XH datasheet, p. 563
