Library› Engine Room› Tank Level & Measurement› Tank Level Gauging› Endress+Hauser FTW 31
Endress+Hauser

FTW 31

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Wandstärke der Isolation0,5mm
ProzeßanschlußBA1...LZ6 Flansch und Dichtform
ElektronikeinsatzEW11 eingebaut
Anzahl und Werkstoff der Stäbe2 Stäbe
Gehäuse und KabeleinführungKunststoff-Gehäuse, M20x1,5
Sondenstab und Masserohr, WerkstoffA...M je nach Materialkombination
ZusatzausstattungFEW52, DC-PNP
Sondenlänge L100 … 4 000 mm
Ø85 mm
Max.76 mm
Sw55 mm
SensitivitySetting on delivery: 100 kΩ (highest sensitivity)
Probe length L100 … 4 000 mm
A........ mm, 316L (100...4000 mm)
B........ in, 316L (4...157 in)
C1000 mm
D2000 mm
E72 in
F........ mm, Carbon fiber (100...4000 mm)
G........ in, Carbon fiber (4...157 in)
Ø85max.76 mm
Ø66max.63 mm
U10,8...45V DC
I max :200mA
Temperatura-40 ... +100 °C (-40 ... +212 °F)
Pressione-1 ... +10 bar (-14,5 ... +145 psi)
Lunghezza sensore+0,1 ... +4 m (+3,9 ... +157'')
Af55 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Liquipoint FTW31 is a level sensor designed for non-hazardous and hazardous areas, offering various certifications and material options.

Features

  • Certified for hazardous areas
  • Multiple process connection options
  • Various rod material choices
  • Adjustable probe length

Options

  • Special versions available
  • Customizable electronic insert

Standards

  • WHG
Source: Endress+Hauser FTW 31 datasheet, p. 7

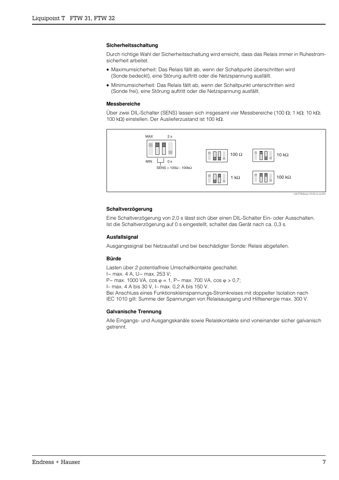

Endress+Hauser FTW 31 – Drawing (034f5072897e_S4-19 S. 4)
Drawing · 034f5072897e_S4-19 · S. 4
Endress+Hauser FTW 31 – Drawing (034f5072897e_S4-19 S. 5)
Drawing · 034f5072897e_S4-19 · S. 5
Endress+Hauser FTW 31 – Drawing (034f5072897e_S4-19 S. 6)
Drawing · 034f5072897e_S4-19 · S. 6

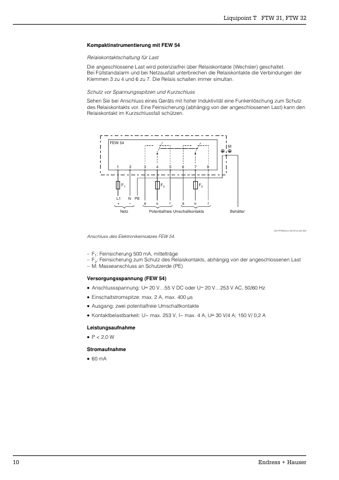

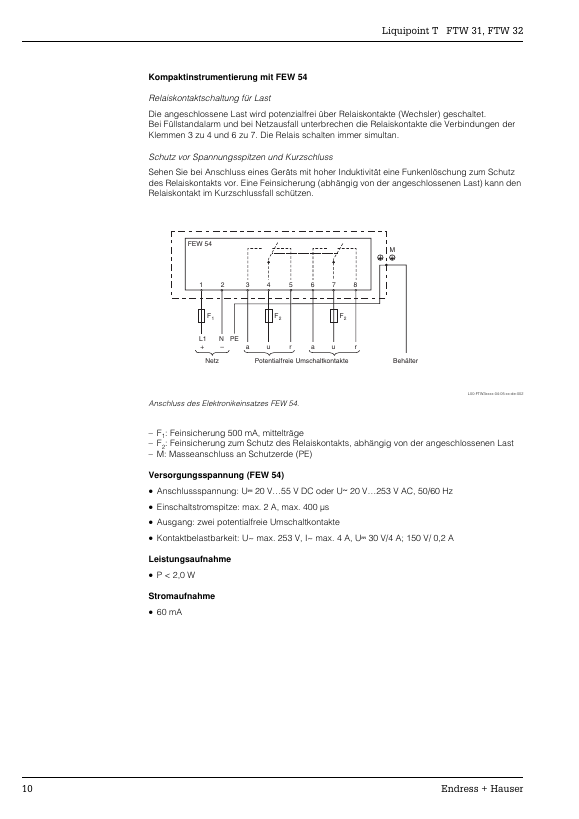

Endress+Hauser FTW 31 – Page preview (034f5072897e_S4-19 S. 7)
Page preview · 034f5072897e_S4-19 · S. 7
Endress+Hauser FTW 31 – Page preview (034f5072897e_S4-19 S. 8)
Page preview · 034f5072897e_S4-19 · S. 8

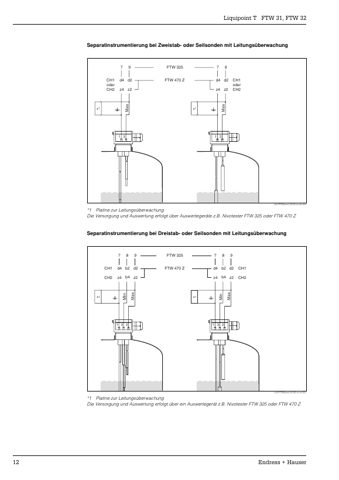

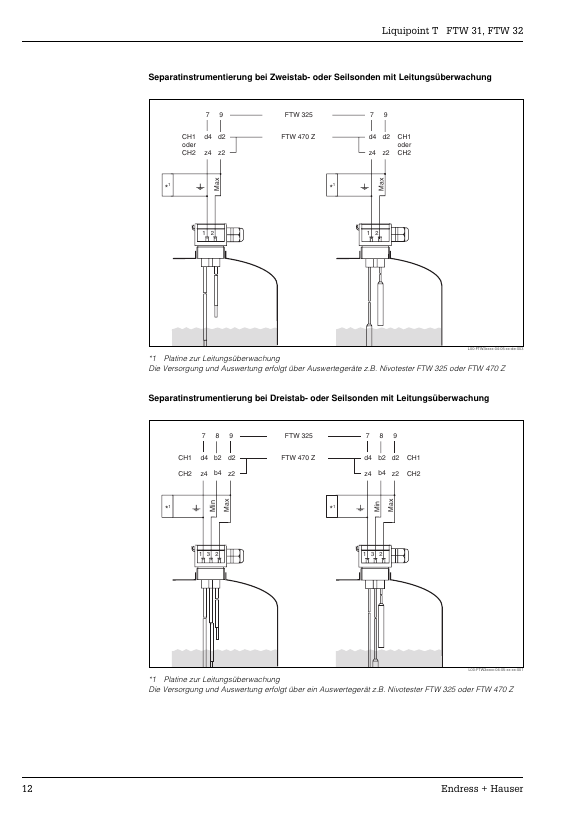

Endress+Hauser FTW 31 – Page preview (034f5072897e_S4-19 S. 9)
Page preview · 034f5072897e_S4-19 · S. 9

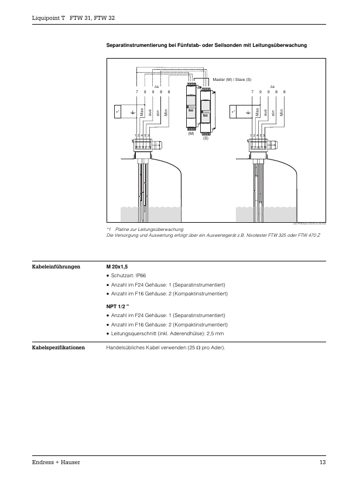

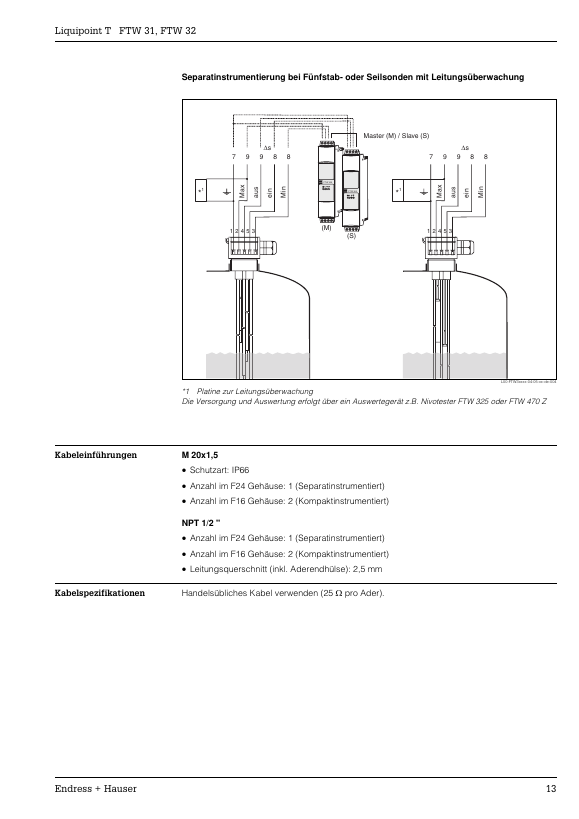

Endress+Hauser FTW 31 – Page preview (034f5072897e_S4-19 S. 10)
Page preview · 034f5072897e_S4-19 · S. 10
Source: Endress+Hauser FTW 31 datasheet, p. 24
