Library› Navigation› Radar & ECDIS› Radar› Alphatron Marine NKE-1130
Alphatron Marine

NKE-1130

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Size12 ft
TX Power30 kW
Weight180 kg (396.83 lbs)
質量180 kg
Swing circle4000mm
Sバンド12 フィート
出力30kW
水平1.9°
垂直25°
回転数24rpm
Peso180 kg
M (círculo de balanço de 4000mm)12 pés/3916m
Tx/w30 kW
Swing circle4000 mm (157.48 in)
Height600 mm (23.62 in)
Width450 mm (17.72 in)
Depth360 mm (14.17 in)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“A wide range of X-band and S-band scanners are available depending on installation space and required performance, all with exceptionally reliable target detection capabilities. The JMA-5300Mk2 radar…”

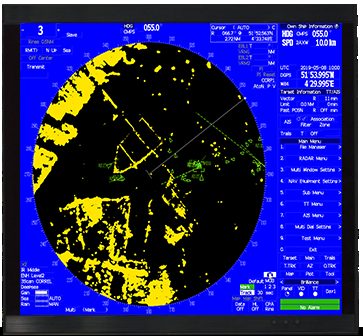

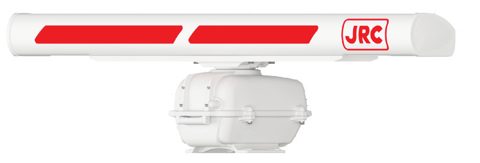

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

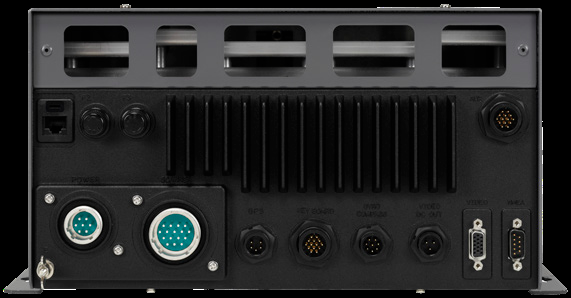

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

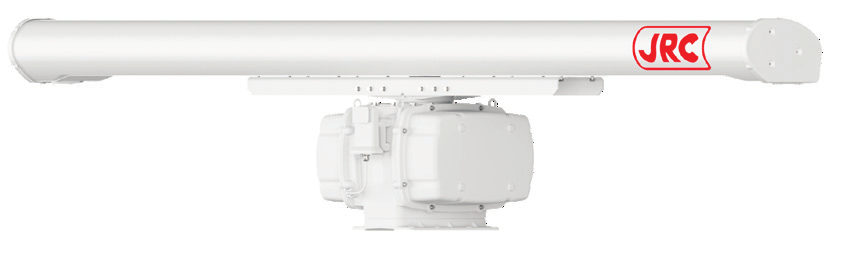

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

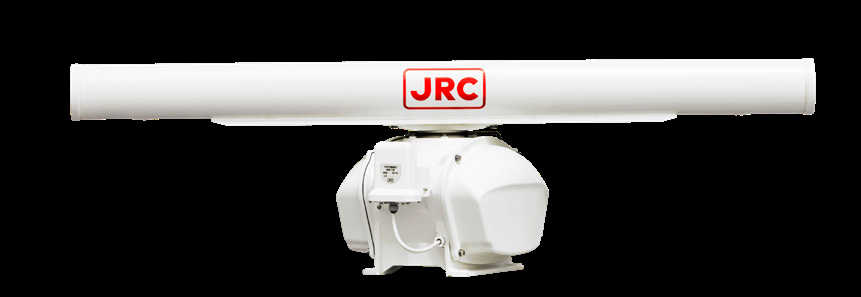

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

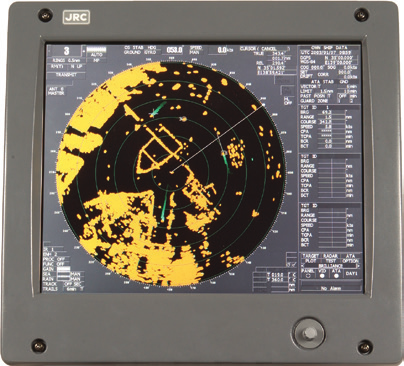

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

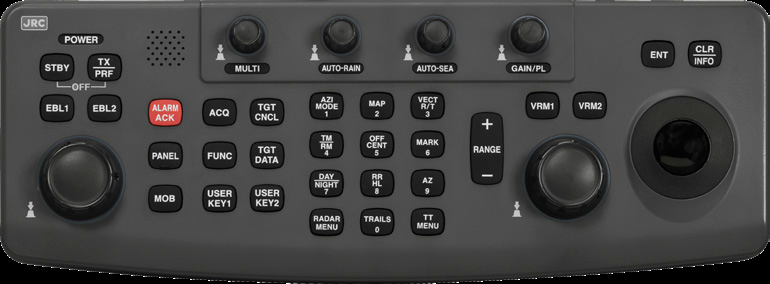

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

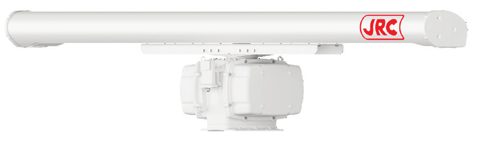

Alphatron Marine NKE-1130 – Photo (e140a39558b2_S4-7 S. 4)
Photo · e140a39558b2_S4-7 · S. 4

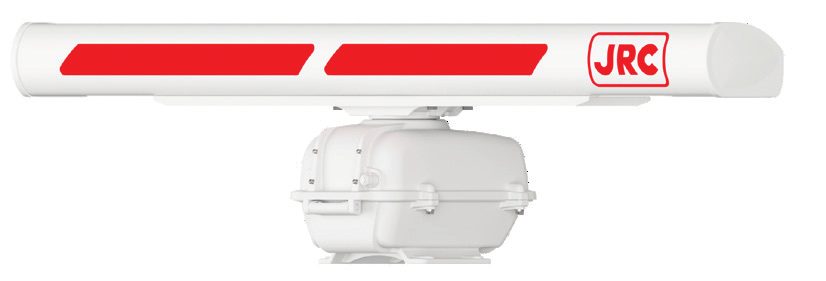

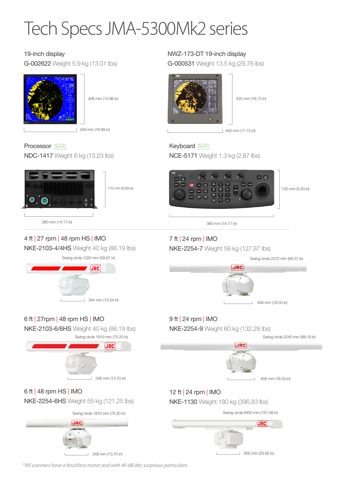

Alphatron Marine NKE-1130 – Drawing (e140a39558b2_S4-7 S. 4)
Drawing · e140a39558b2_S4-7 · S. 4
Source: Alphatron Marine NKE-1130 datasheet, p. 1
