Library› Electrical› Instrumentation & Gauges› Liquid Analysis Sensor / Transmitter› Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51
Endress+Hauser

Liquiphant FTL62 Dichte mit Dichterechner QML51

Liquid Analysis Sensor / Transmitter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

StromaufnahmeI < 10 mA
ÜberspannungsschutzÜberspannungskategorie I
Impulssignal bei Alarm0 Hz.
Versorgungsspannung24 VDC
VerschraubungM20
Leiterquerschnitt maximal2,5 mm2 (AWG14)
Vernickeltes Messing7 … 10,5 mm (0,28 … 0,41 in)
Kunststoff5 … 10 mm (0,2 … 0,38 in)
Edelstahl7 … 12 mm (0,28 … 0,47 in)
Überwurfmutter der Verschraubung8 Nm (5,9 lbf ft)
Beigelegte Verschraubung3,75 Nm (2,76 lbf ft)
Verschraubung M2020 mm
Umgebungstemperaturbereich–40 … 70 °C
Betriebshöhe2 000 m
KlimaklasseIEC 60068-2-38 Prüfung Z/AD
SchutzartIP68 Testbedingung: 1,83 m H2O für 24 h
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Liquiphant FTL62 Dichte with Dichterechner QML51 is a density measurement device for liquids in pipelines and tanks, suitable for use in hazardous areas.

Applications

  • Density measurement in tanks

Features

  • nickel-plated brass thread
Source: Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 datashe, p. 26

Standards

  • IEC 61010-1
  • IEC 60068-2-38
  • IEC 60529
  • NEMA 250
Source: Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 datashe, p. 36
Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Drawing (2cde7025f5c5_S13-30 S. 13)
Drawing · 2cde7025f5c5_S13-30 · S. 13
Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Drawing (2cde7025f5c5_S13-30 S. 14)
Drawing · 2cde7025f5c5_S13-30 · S. 14

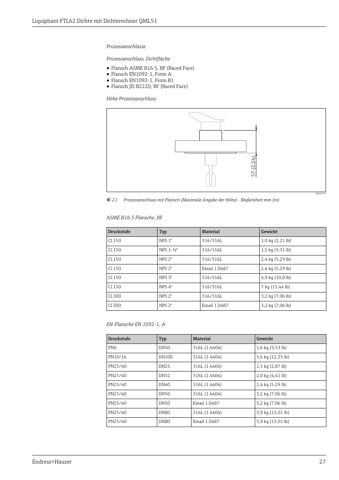

Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Drawing (2cde7025f5c5_S13-30 S. 15)
Drawing · 2cde7025f5c5_S13-30 · S. 15

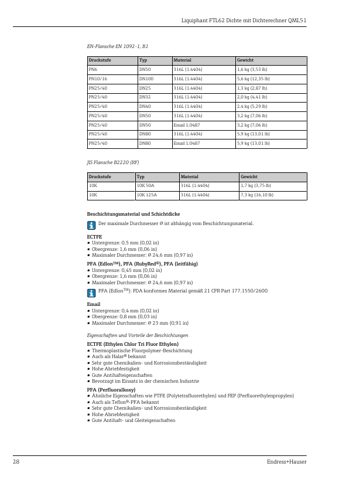

Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Page preview (2cde7025f5c5_S13-30 S. 16)
Page preview · 2cde7025f5c5_S13-30 · S. 16
Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Page preview (2cde7025f5c5_S13-30 S. 17)
Page preview · 2cde7025f5c5_S13-30 · S. 17
Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 – Page preview (2cde7025f5c5_S13-30 S. 18)
Page preview · 2cde7025f5c5_S13-30 · S. 18

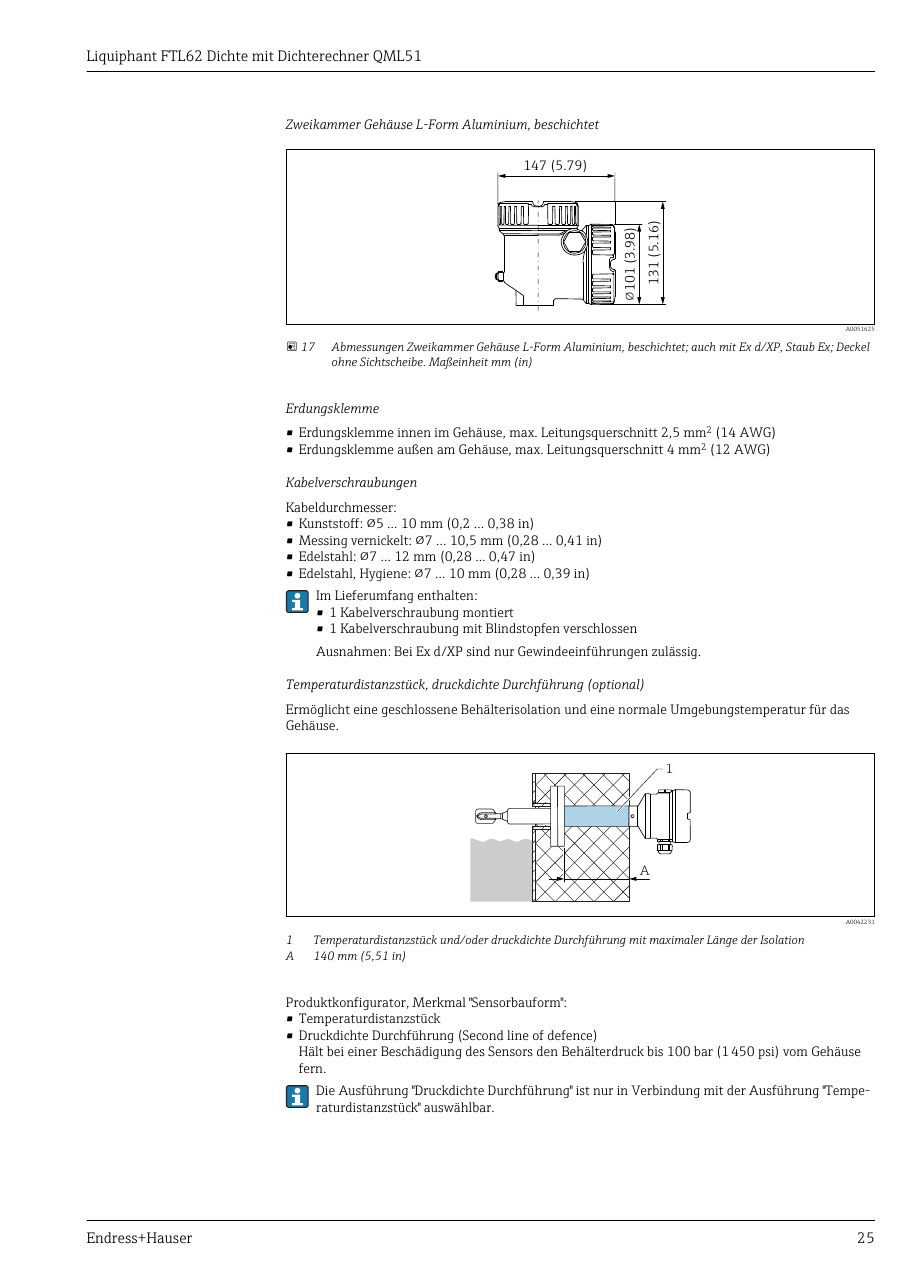

Source: Endress+Hauser Liquiphant FTL62 Dichte mit Dichterechner QML51 datashe, p. 25
